Vermeer Equipment Broyeurs horizontaux Broyeur horizontal HG6000E

Broyeur horizontal HG6000E

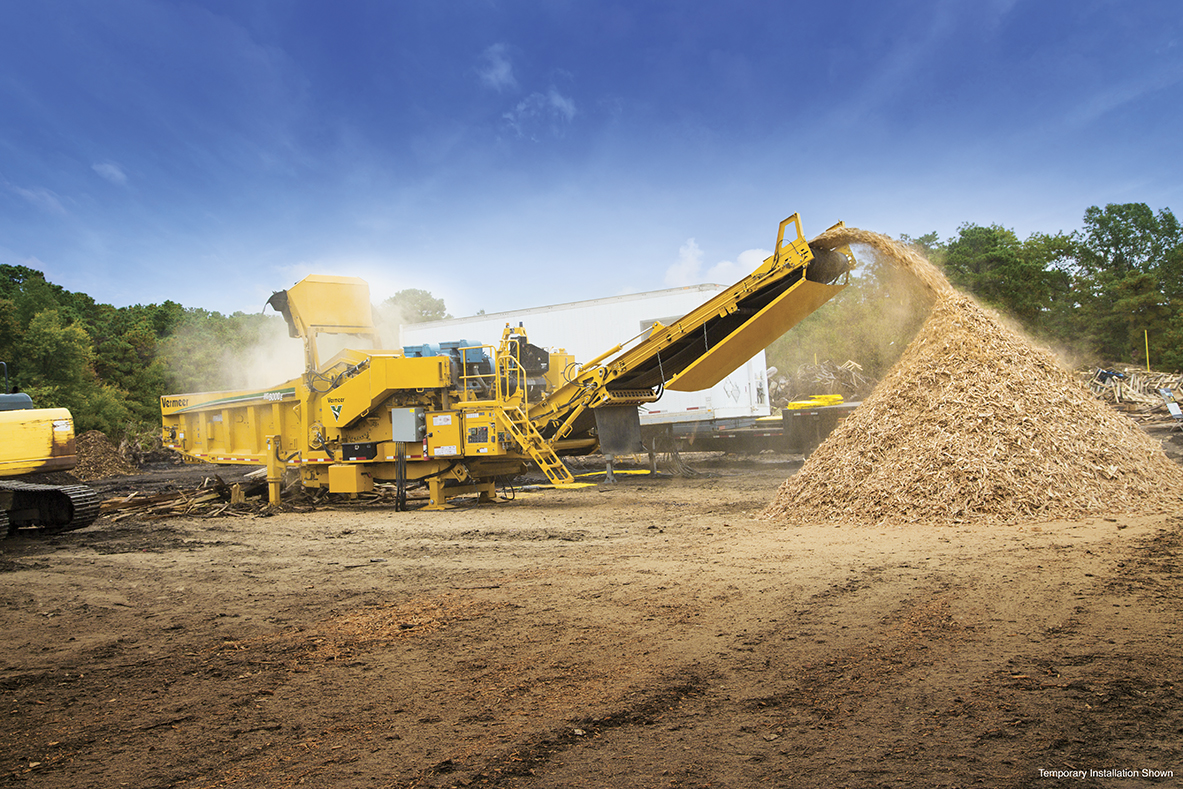

  • Le broyeur horizontal HG6000E Vermeer est une solution électrique puissante pour le broyage intensif de biomasse et déchets verts.
  • Ses deux moteurs électriques offrent une puissance combinée de 700 hp (522 kW) pour un traitement régulier et performant.
  • Le tambour duplex Série II et le système SmartFeed optimisent la coupe, l’alimentation et la productivité.
  • Sa large table d’alimentation facilite le traitement des matériaux volumineux.

Idéal pour les applications industrielles recherchant performance, régularité et efficacité.

Base Image
Small Image
Base Image
Small Image
Demander un Devis Télécharger la brochure vermeer icon

Les broyeurs horizontaux Vermeer répondent aux exigences des professionnels du recyclage et de la valorisation des déchets verts. Leur conception robuste et leurs configurations possibles permettent d’adapter la machine à votre matériau et à votre cadence.

Selon vos besoins, vous choisissez la longueur de table d’alimentation et la puissance. Le tambour duplex breveté et les déflecteurs d’objets projetés contribuent à la performance et à la sécurité. Contactez Vermeer France pour choisir le modèle et demander un devis.

General

Manufacturer Vermeer
Model Broyeur horizontal HG6000E
Category Recyclage
Price Request a Quote

General Dimensions and Lengths - Long Infeed

Maximum Length - Transport with Dolly 45.8ft (14m)
Maximum Length (Operation) 54.5ft (16.6m)
Maximum Width Transport - with Dolly 9.8ft (3m)
Weight 56000lbs (25401.2kg)
Tongue Weight - Engine Option 1 with Dolly 21600lbs (9797.6kg)
Axle Weight - Engine Option 1 with Dolly 43400lbs (19685.9kg)
Dolly Weight 9500lbs (4309.1kg)
Weight 55500lbs (25174.4kg)
Rear Pad Weight 31600lbs (14333.5kg)
Front Pad Weight 23900lbs (10840.9kg)
Manufacturer WEG W22
Frame 145T
Horsepower 2hp (1.5kw)
Voltage 460
Frequency 60
Phase 3
Rated Speed 1750rpm
Enclosure TEFC
Full Load Amps 2.61
Locked Rotor Amps 19.6
Service Factor 1.25
Duty Cycle S1
NEMA Design B
Insulation Class F
Full Load Torque 5.9ft-lb (8Nm)
Locked Rotor (%) 240
Break Down 300
Ambient Temperature 40c (1352f)
Nominal Efficiency 86.5
Power Factor .84
Approximate Weight 51lbs (23.1kg)
Added Items Terminal Block
Manufacturer WEG W22
Frame 364/5TS
Horsepower 60hp (44.7kw)
Voltage 460
Frequency 60
Phase 3
Rated Speed 1775rpm
Enclosure TEFC
Full Load Amps 68.3
Locked Rotor Amps 451
Service Factor 1.25
Duty Cycle S1
NEMA Design B
Insulation Class F
Full Load Torque 175ft-lb (237.3Nm)
Locked Rotor (%) 240
Break Down 260
Ambient Temperature 40c (1352f)
Nominal Efficiency 95
Power Factor .87
Approximate Weight 869lbs (394.2kg)
Added Items Nema C Face Mount, Terminal Block
Manufacturer WEG W22
Frame NEMA 586/7Z
Voltage 460
Frequency 60
Phase 3
Rated Speed 1790rpm
Enclosure TEFC
Full Load Amps 401
Locked Rotor Amps 2390
Service Factor 1.15
Duty Cycle S1
NEMA Design NEMA A
Insulation Class F
Full Load Torque 1373ft-lb (1861.5Nm)
Locked Rotor (%) 220
Break Down 260
Ambient Temperature 4c (135.2f)
Nominal Efficiency 95.8
Power Factor .85
Approximate Weight 3363lbs (1525.4kg)
Added Items Temperature switch; Inverter duty; Terminal Block
Drive Belt Type Synchronous, carbon fiber
Height 87.4in (222cm)
Width 158in (401.3cm)
Depth 24.1in (61.2cm)
Weight 4100lbs (1859.7kg)
Feed Table Width 60in (152.4cm)
Feed Table Length - Option One 20ft (6.1m)
Loading Height 7.6ft (2.3m)
Flare Construction Integrated with infeed
Feed Conveyor Type Welded slat chain
Material Construction Steel
Drive Type Radial piston motor
Drive Roller Construction Welded steel
Front Idler Roller Construction Self-cleaning steel auger
Infeed Floor Construction Welded steel with replaceable UHMW wear plates
Infeed Roller Width 56.8in (144.3cm)
Infeed Roller Weight 1300lbs (589.7kg)
Infeed Roller Diameter 36.1in (91.8cm)
Maximum Feed Height 32in (81.3cm)
Material Type Fabricated steel
Tooth Design Serrated bars
Number of Teeth 13 bars
Drive Motor Fixed displacement, Geroler
Drive Planetary Two options (HD - 26.18:1) (STD - 34.2:1)
Feed Roller Down Pressure Adjustable
Thrown Object Deflector Standard
Deflector Position Variable
Millbox Opening 60" W x 32" H (152.4 cm W x 81.3 cm H)
Drum Diameter 5600in (14224cm)
Tip Diameter 28in (71.1cm)
Drum Cutting Width 36.4in (92.5cm)
Drum Skin Thickness 62.4in (158.5cm)
Drum Speed 1.5rpm
Tip Speed 1080rpm
Bearing Type Double row, spherical roller
Bearing - Inner Race Diameter 5.5in (14cm)
Number of Hammers 10
Number of Tips 20
Center Retention Pin Dimensions 2" diameter x 75.3" L (5.1 cm diameter x 191.3 cm L)
Screen Weight 470lbs (213.2kg)
Screen Dimensions 3/4" (1.9 cm) thick
Screen Type Fabricated out of abrasion resistant steel
Number of Screens 2
Screen Area 3317sq in (21400sq cm)
Number of Sides 1
Millbox Lid Liner Dimensions Abrasion resistant steel
Liner Dimensions 1" thick x 5.6" W x 65.4" L (2.5 cm thick x 14.2 cm W x 166.1 cm L)
Anvil Type Fabricated steel with replaceable wear surfaces
Anvil Dimensions 22.8"x 4.1"x 80.8" (57.9 cm x 10.4 cm x 205.2 cm)
Length 81.3ft (24.8m)
Width 48in (121.9cm)
Belt Design 3 ply - 330# or straight warp single ply 330# both with V cleat
Splice R2-stainless steel or Super splice
Return Roller Quantity 3
Idler Roller Diameter 12in (30.5cm)
Idler Roller Bearing 1-15/16, 4-bolt flange
Standard Drive Roller Diameter 12.8in (32.4cm)
Magnetic Drive Roller Diameter 12.8in (32.4cm)
Drive Motor Fixed displacement, Geroler
Drive Motor Bearings 1-15/16, 4-bolt flange
Belt Speed 780ft/min (237.7m/min)
Load Height 14.5ft (4.4m)
Tank capacity 65gal (246.1L)
Recommended Oil Vermeer HyPower 68
Filtration Method Dual in-tank return filters with suction strainer
Number of Coolers 1
System Type Open-loop, pressure- and flow-compensated
Pump Type Variable displacement, axial piston
Pump Flow at Maximum RPM 28.5/27.3 (60Hz/50Hz)
System Relief Pressure 4500
System Type Open-loop
Pump Type Fixed displacement, gear pump
Pump Flow at Maximum RPM 23gpm (87.1L/min)
System Relief Pressure 3000
Motor Series Char-Lyn 6000 Series, geroler
System Voltage 24V Machine Control Circuit
System Protection Fused
Display Type LCD
Engine Information Yes
Machine Information Yes
Operational Faults Yes
Switches Moisture-proof, toggle style
Display Type LCD
Engine Information Yes
Machine Information Yes
Operational Faults Yes
Switches Sealed membrane
Operating Range Up to 300' (91.4 m)
Battery Type AA (qty 6)
Channel Setting 50 channels
Frame Description Unit body construction
Tongue Description Bolt-on to infeed structure
Hitch Type Fifth wheel
Fender Description Formed steel, Replaceable
Brake Type Air-actuated with spring-applied parking brake
Trailer Light Type 12-24 V LED
Suspension Type Air-ride
Manufacturer - Option One Hendrickson
Capacity per Axle 20000lbs (9071.8kg)
Number of Axles 3
Tires - Option One 255/70R22.5 Duals
Wheels - Option One 22.5"x 8.3" (57.2 cm x 21 cm) Hub piloted steel
Ground Clearance - Option One 5.3in (13.5cm)
Air Compressor Brand Mi-T-M
Maximum Pressure 175psi (12.1bar)
Maximum Air Flow 29cfm (.8cmm)
Tank capacity 30gal (113.6L)
Screens Yes
Special Tools Group Yes
Extended Warranty Yes
Preventative Maintenance Optional
Special Paint Yes
