Broyeur horizontal HG6000 à Configuration européenne

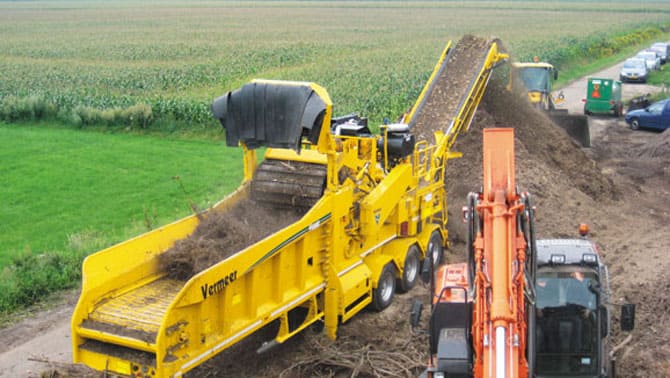

  • Le broyeur horizontal HG6000 à configuration européenne Vermeer est conçu pour les applications de broyage intensif de biomasse et déchets verts.
  • Équipé d’un moteur CAT C18 développant 755 hp (563 kW), il offre une puissance élevée adaptée aux chantiers exigeants.
  • Le tambour double série II assure des performances de coupe optimales tout en réduisant l’usure et la maintenance.
  • Le système SmartGrind ajuste automatiquement la vitesse de broyage pour améliorer le rendement et la productivité.
  • Sa large table d’alimentation facilite le chargement et le traitement des matériaux volumineux.
  • Les options de tamis et de tambour à copeaux permettent un contrôle précis du produit final selon les besoins.

Contrairement au HG6000E électrique, le HG6000 à configuration européenne fonctionne en motorisation diesel, offrant une plus grande autonomie et une flexibilité accrue sur les chantiers sans accès au réseau électrique.

Base Image
Small Image
Small Image
Small Image
Base Image
Small Image
Small Image
Small Image
Demander un Devis Télécharger la brochure vermeer icon

Les broyeurs horizontaux Vermeer répondent aux exigences des professionnels du recyclage et de la valorisation des déchets verts. Leur conception robuste et leurs configurations possibles permettent d’adapter la machine à votre matériau et à votre cadence.

Selon vos besoins, vous choisissez la longueur de table d’alimentation et la puissance. Le tambour duplex breveté et les déflecteurs d’objets projetés contribuent à la performance et à la sécurité. Contactez Vermeer France pour choisir le modèle et demander un devis.

Général

Fabricant Vermeer
Modèle Broyeur horizontal HG6000 à Configuration européenne
Catégorie Recyclage
Prix Demander un devis

General Dimensions and Lengths - Long Infeed

Maximum length - Transport (5th wheel) 38.8ft (11.8m)
Maximum Length (Operation) 53ft (16.2m)
Maximum Width (Transport) 8.2ft (2.5m)
Maximum Height (Transport) 13.1ft (4m)
Maximum tongue weight (5th wheel) 19841.6lbs (9000kg)
Maximum axle weight (5th wheel) 44092.4lbs (20000kg)
Make and Model CAT C18 T4F/Stage V
Number of Cylinders 6
Gross Horsepower (Maximum) 755hp (563kw)
Torque (Max) 2582ft-lb (3500.7Nm)
Fuel Tank Capacity 350gal (1324.9L)
Max Fuel Consumption 37.9gph (143.5lph)
Fuel Type Ultra-low sulfur diesel (<15 ppm)
Air Cleaner Dry-type with primary and secondary elements and restriction indicator
Oil Filter Full-flow spin-on
Recommended Oil API CJ-4, ECF-3, or API CK-4 Ultra Low Sulfur. Varying viscosity based on ambient conditions.
Oil Volume with Filter 35.9qt (34L)
Cooling Medium Liquid (nitrite-free, pre-diluted 50/50)
Coolant Capacity (Engine and Radiator) 28.7gal (108.6L)
Oil volume with filter 9gal (34.1L)
Air to Boil Temperature 124deg
Alternator 24 V 95 A
Fan Hydraulically-driven, reversible
Fan - CAC Hydraulically-driven, reversible
Clutch Type Hydraulic-operated wet clutch, PT Tech
Clutch Engagement Push buttons
Drive Belt Type Synchronous
Sound Power 121 dB(A)
Make and Model CAT C18 T4i
Number of Cylinders 6
Gross Horsepower (Maximum) 755hp (563kw)
Torque (Max) 2582ft-lb (3500.7Nm)
Fuel Tank Capacity 350gal (1324.9L)
Max Fuel Consumption 37.9gph (143.5lph)
Fuel Type Ultra-low sulfur diesel (<15 ppm)
Air Cleaner Dry-type with primary and secondary elements and restriction indicator
Oil Filter Full-flow, spin-on
Recommended Oil API CJ-4, ECF-3, or API CK-4 Ultra Low Sulfur. Varying viscosity based on ambient conditions.
Oil Volume with Filter 35.9qt (34L)
Cooling Medium Liquid (nitrite free, pre-diluted 50/50)
Coolant Capacity (Engine and Radiator) 28.7gal (108.6L)
Air to Boil Temperature 124deg
Alternator 24 V 95 A
Fan Hydraulically-driven, reversible
Fan - CAC Hydraulically-driven, reversible
Clutch Type Hydraulic-operated wet clutch, PT Tech
Clutch Engagement Push button
Drive Belt Type Synchronous
Sound Power Standard exhaust: 121 dB(A); Deluxe exhaust: 120 dB(A)
Make and Model CAT C18 T3/Stage IIIA
Number of Cylinders 6
Gross Horsepower (Maximum) 630hp (469.8kw)
Torque (Max) 2042ft-lb (2768.6Nm)
Fuel Tank Capacity 350gal (1324.9L)
Max Fuel Consumption 32.9gph (124.5lph)
Fuel Type Diesel
Air Cleaner Dry-type with primary and secondary elements and restriction indicator
Oil Filter Full-flow, spin-on
Recommended Oil Varying viscosity based on ambient conditions
Oil Volume with Filter 35.9qt (34L)
Cooling Medium Liquid (nitrite free, pre-diluted 50/50)
Coolant Capacity (Engine and Radiator) 28.7gal (108.6L)
Air to Boil Temperature 151deg
Alternator 24 V 95 A
Fan Hydraulically-driven, reversible
Clutch Type Hydraulic-operated wet clutch, PT Tech
Clutch Engagement Push button
Drive Belt Type Synchronous
Sound Power Standard exhaust: 122 dB(A); Deluxe exhaust: 122 dB(A)
Feed Table Width 60in (152.4cm)
Feed Table Depth 26.3in (66.8cm)
Feed Table Length - Option One 20ft (6.1m)
Feed Table Capacity 8.7cu yd (6.7cu m)
Loading Height 8.5ft (2.6m)
Flare Construction Integrated with infeed
Feed Conveyor Type Weld slate chain
Material Construction Steel
Material Construction - Option Two Grade 50 steel
Drive Type Radial piston motor
Drive Roller Construction Welded steel
Front Idler Roller Construction Self-cleaning steel auger
Infeed Floor Construction Welded steel with replaceable UHMW wear plates
Infeed Roller Width 56in (142.2cm)
Infeed roller weight with arm 3350lbs (1519.5kg)
Infeed Roller Diameter 36in (91.4cm)
Maximum Feed Height 47in (119.4cm)
Material Type Fabricated steel
Tooth Design Serrated bars
Number of Teeth 13
Drive Motor Fixed displacement motor/planetary
Drive Planetary Two options: heavy-duty - 26.18:1; Standard - 34.2:1
Feed Roller Down Pressure Adjustable
Thrown Object Deflector Standard
Deflector Position Variable
Curtain description Rubber
Millbox Opening 60-in (150-cm) wide x 32-in (81-cm) high
Drum Weight 4741lbs (2150.5kg)
Drum Diameter 28in (71.1cm)
Tip Diameter 36.4in (92.5cm)
Drum Cutting Width 62.4in (158.5cm)
Drum Skin Thickness 1.5in (3.8cm)
Drum Speed 1171rpm
Tip speed (Duplex) 11168ft/min (3404m/min)
Bearing Type Double row spherical roller
Bearing - Inner Race Diameter 5.5in (14cm)
Bearing - Dynamic Capacity 166000lbs (75296.3kg)
Number of Hammers 10
Number of Tips 20
Tip types Premium wide
Center Retention Pin Dimensions 2-in (5-cm) diameter x 75.3-in (191-cm) length
Number of Wipers None
Drum Weight 5946lbs (2697.1kg)
Drum Diameter 34.3in (87.1cm)
Drum Cutting Width 62.4in (158.5cm)
Drum Skin Thickness 1.5in (3.8cm)
Depth of Cut Adjustable: .125 in (.318 cm) to 1.5 in (3.8 cm)
Number of Knives 28
Knife Thickness .625 in (1.59 cm)
Useable Edges 1
Material A8 mod chipper steel
Number of Bolts/Knife 2
Replaceable Threaded Knife Block Yes
Number of Pockets 14
Drum Speed 683rpm
Tip speed (1-in chip) 6673ft/min (2033.9m/min)
Bearing Type Double row spherical roller
Bearing - Inner Race Diameter 5.5in (14cm)
Bearing - Dynamic Capacity 166000lbs (75296.3kg)
Shaft diameter 6.5in (16.5cm)
Shaft Retention Type Keyless bushing
Screen Dimensions .75-in (1.9-cm) thick
Screen Type Abrasion-resistant steel
Number of Screens 2
Screen Area 3317sq in (21400sq cm)
Millbox lid liner Abrasion-resistant steel
Anvil Type Fabricant steel with replaceable wear surfaces
Length 81.3ft (24.8m)
Width 48in (121.9cm)
Belt Design 3 ply - 330# or straight warp single ply 330# both with V cleat
Splice R2-stainless steel cable or Super Splice
Return Roller Quantity 4
Idler Roller Diameter 12in (30.5cm)
Idler Roller Bearing 1-15/16, 4-bolt flange
Standard Drive Roller Diameter 12.8in (32.5cm)
Magnetic Drive Roller Diameter 12.8in (32.5cm)
Drive Motor Fixed displacement
Belt Speed 780ft/min (237.7m/min)
Load Height 14ft (4.3m)
Tank capacity 100gal (378.5L)
Recommended Oil Vermeer HyPower 68
Filtration Method Dual in-tank return filters (B5=200)
Number of Coolers 2
Components Dual proportional control valves
System Type Open-loop, pressure and flow compensated
Pump Type Variable displacement, axial piston
Pump Flow at Maximum RPM 32.4 gpm (123 L/min)
System Relief Pressure 4000 psi (276 bar)
System Type Open-loop
Pump Type Fixed displacement, gear
Pump Flow at Maximum RPM 25.7gpm (97.3L/min)
System Relief Pressure 3000 psi (207 bar)
Motor Series Fixed displacement, geroler
System Type Open-loop, pressure and flow compensated
Pump Type Variable displacement, axial piston
Pump Flow at Maximum RPM 36.2gpm (137L/min)
Motor Series Fixed displacement, gear
Fan Series - FWD/REV Reversible
Tank capacity 18gal (68.1L)
Recommended Oil VMF Gold
Filtration Method Spin-on, pressure filter (B6=1000)
Number of Coolers 1
System Type Open-loop
Pump Type Fixed displacement, gear pump
Pump Flow at Maximum RPM 12.4gpm (46.9L/min)
System relief pressure 260psi (17.9bar)
System Voltage 24 V
Battery Group 8-D, 1155 CCA (qty. 2)
System Protection Fused
Display Type LCD
Engine Information Yes
Machine Information Yes
Operational Faults Yes
Gauges Two: fuel level and hydraulic pressure
Switches Moisture-proof, toggle style
Display Type LCD
Engine Information Yes
Machine Information Yes
Operational Faults Yes
Switches Sealed membrane

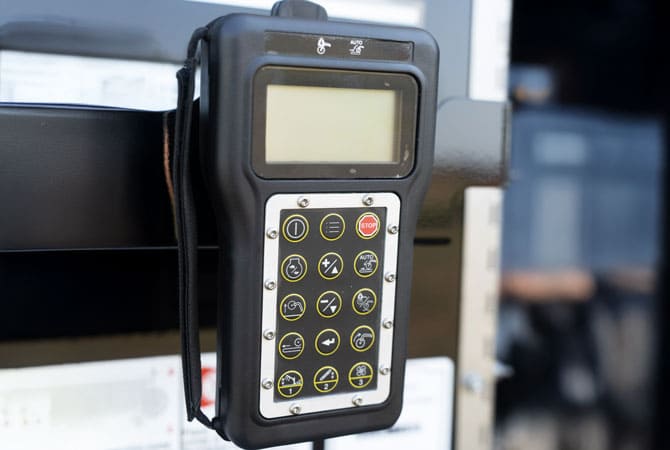

Operating Range 300 ft (91.4 m)
Battery Type AA (qty. 6)
Channel Setting 50 channels
Frame Description Unit body construction
Tongue Description Integrated into infeed structure
Hitch Type 5th wheel
Fender Description Formed steel, replaceable
Brake Type Air-actuated with spring-applied parking brake
Trailer Light Type 12-24V LED
Suspension Type Spring
Capacity per Axle 18740lbs (8500.3kg)
Number of axles (5th wheel) 3
Tires - Option One 385/65R22.5
Wheels - Option One Aluminum 22.5x12.25
Ground Clearance - Option One 15.9in (40.4cm)
Tires - Option Two 445/50R22.5
Wheels - Option Two Aluminum 22.5x14
Ground Clearance - Option Two 14.9in (37.8cm)
Engine 11.7 hp (8.72 kW)
Maximum Pressure 175psi (12.1bar)
Maximum Air Flow 29cfm (.8cmm)
Tank capacity 30gal (113.6L)
Screens Yes
Tips Yes
Special Tools Group Yes
Magnetic discharge conveyor pulley Yes
Extended Warranty Yes
Preventative Maintenance Yes
Special Paint Yes
Air Compressor Yes
Vermeer Confidence Plus Asset Protection Program Yes

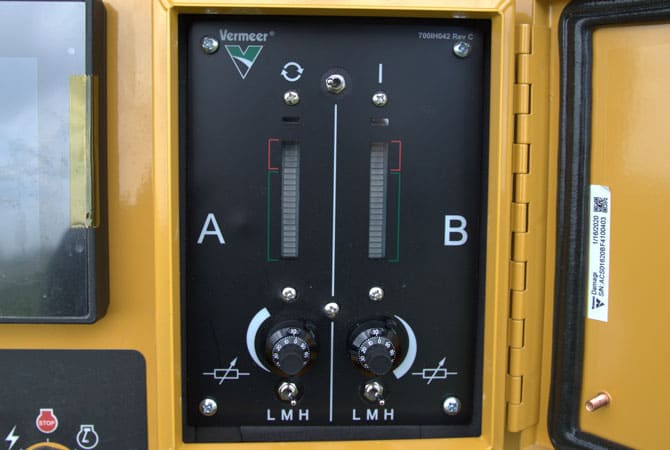

Damage Defense Yes
