Broyeur horizontal HG4000TX G2

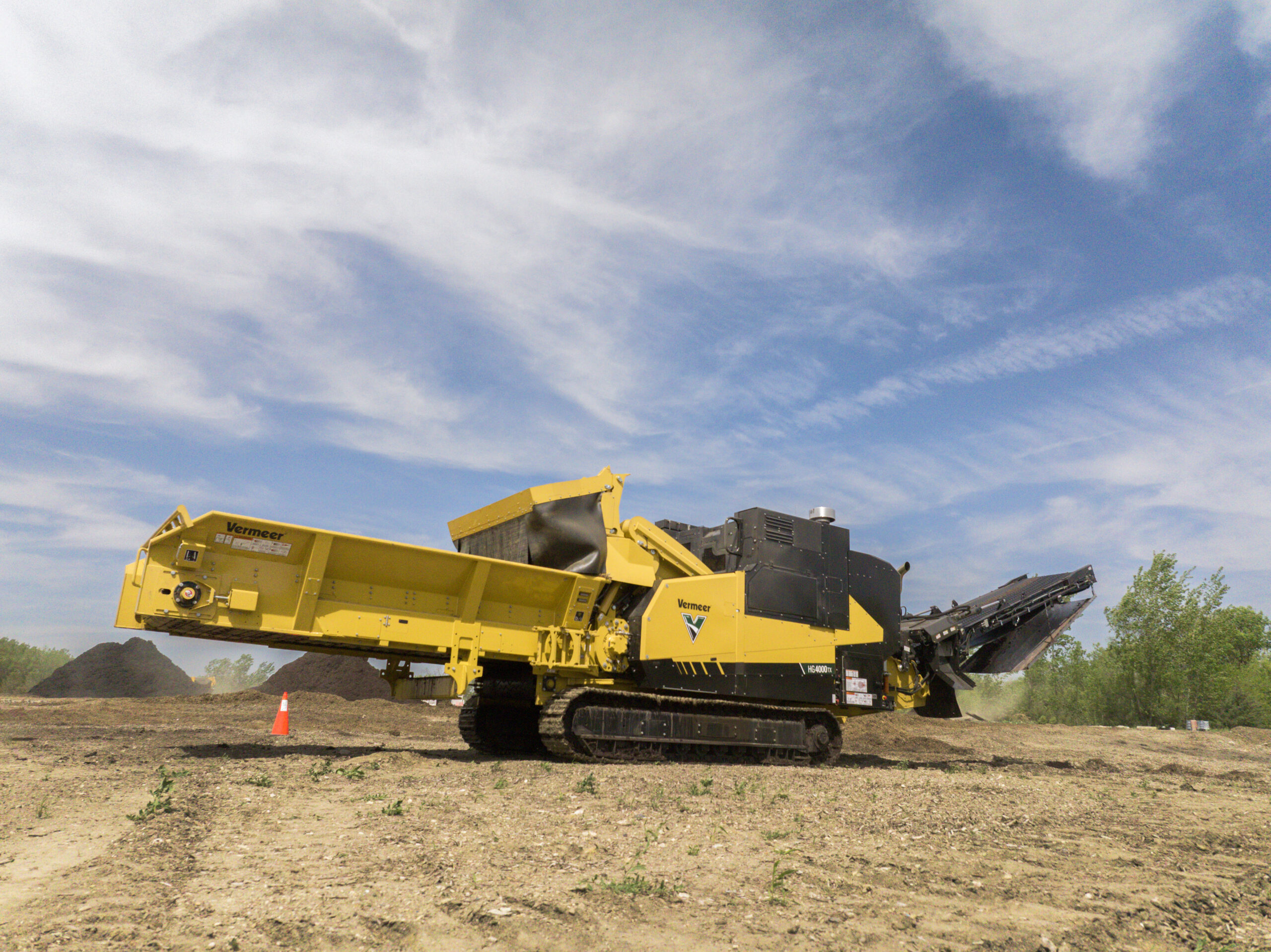

  • Le broyeur horizontal HG4000TX G2 Vermeer est une machine nouvelle génération conçue pour offrir puissance, productivité et efficacité sur les chantiers de broyage intensif.
  • Équipé d’un moteur CAT pouvant atteindre 536 ch (400 kW), il garantit une capacité de broyage élevée pour les applications les plus exigeantes.

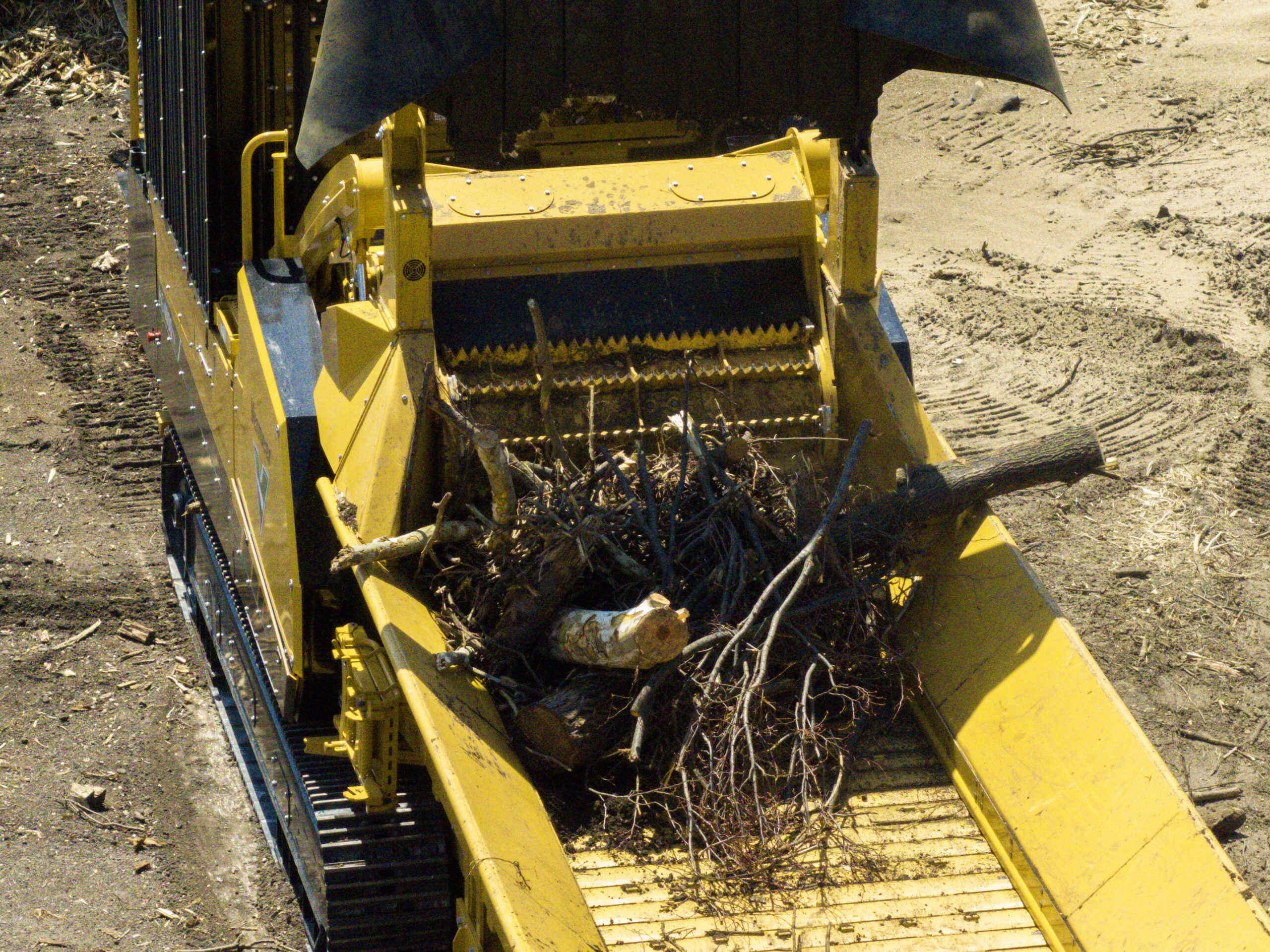

  • Son système d’alimentation renforcé, avec une large ouverture de 152,4 x 76,2 cm, permet de traiter facilement des matériaux volumineux comme des arbres entiers.
  • Le tambour duplex Série III améliore la durabilité et assure une qualité de broyage constante et optimisée.

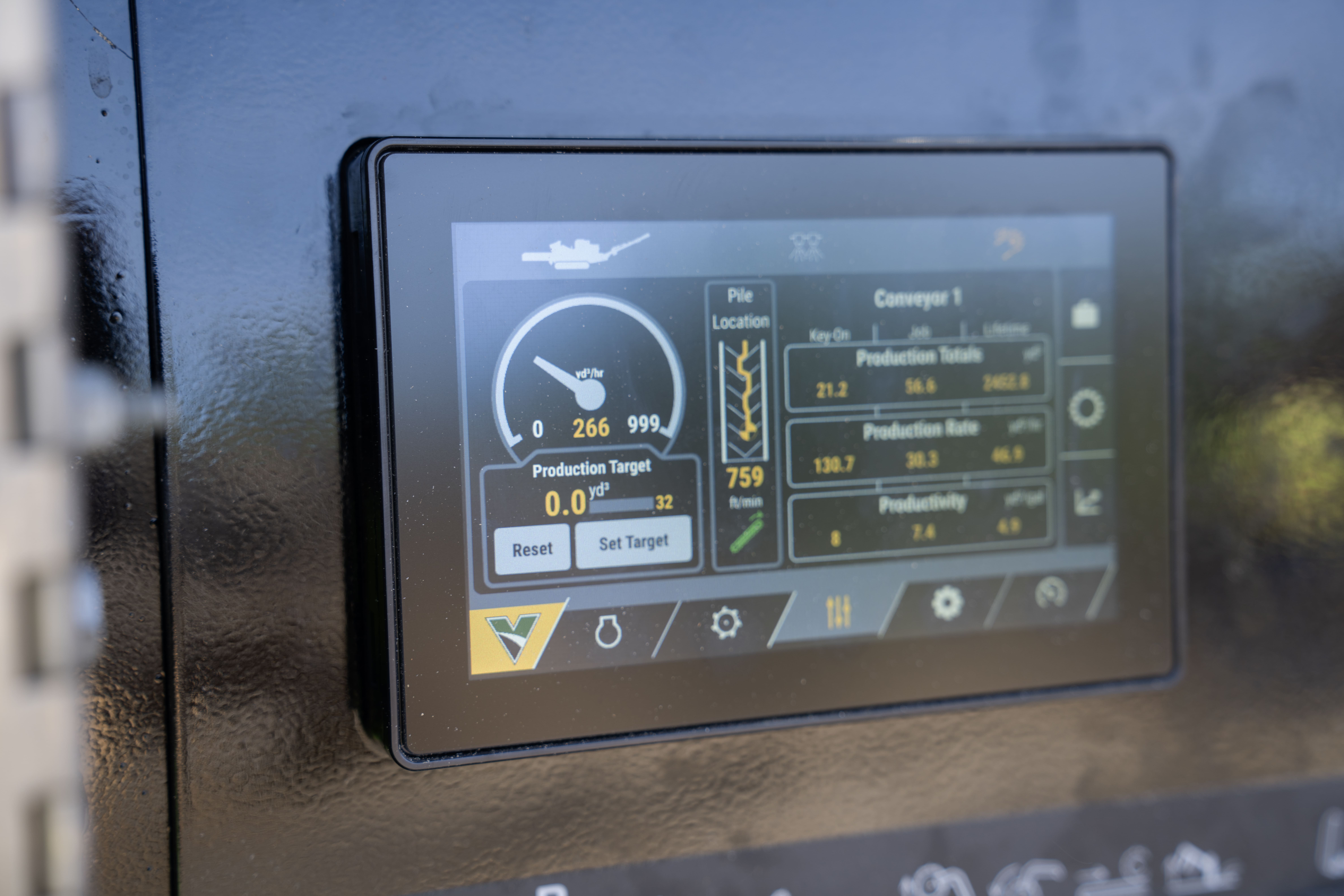

  • La plateforme VermeerOne™ permet un suivi en temps réel des performances pour optimiser la productivité et la rentabilité.

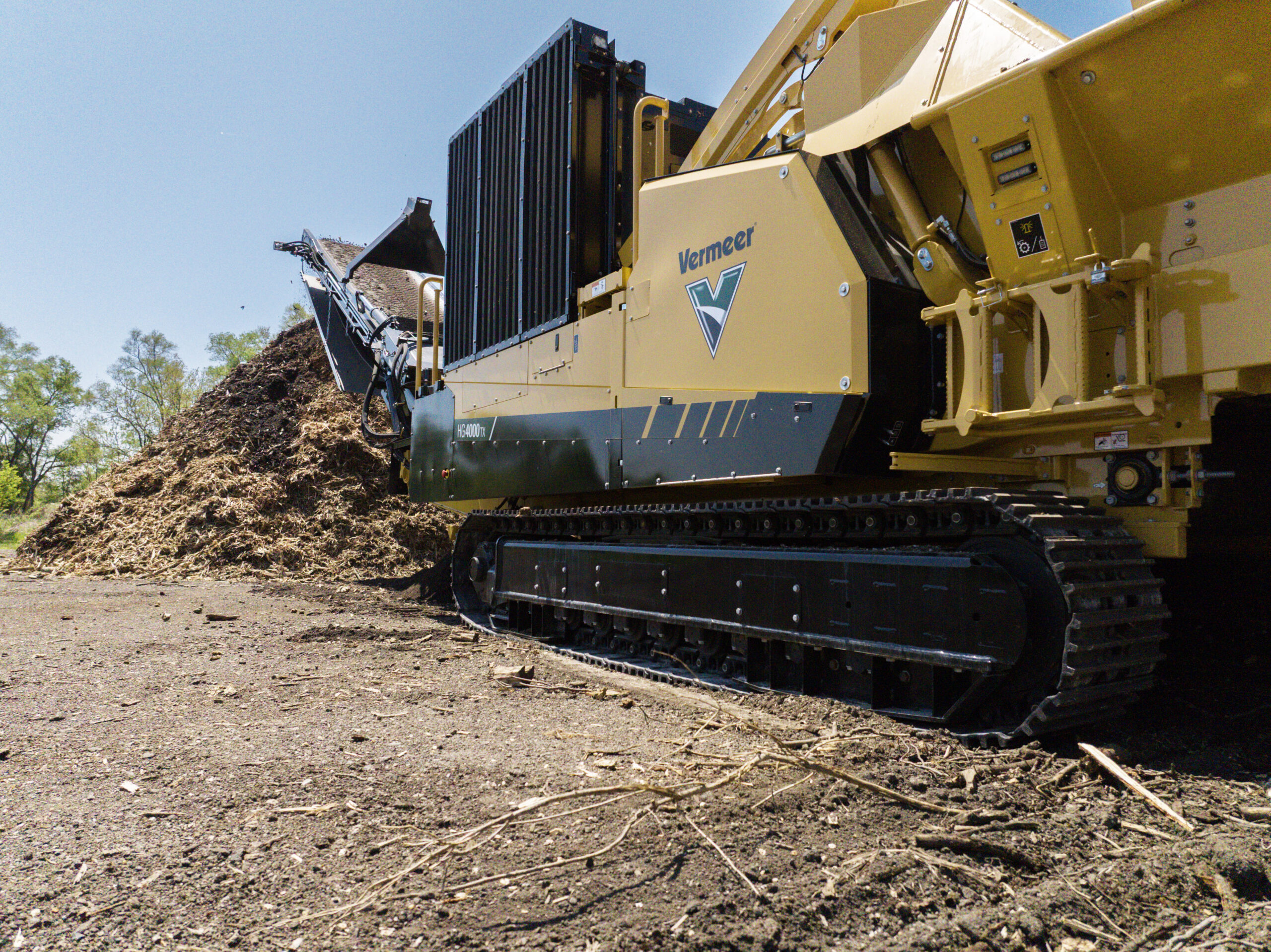

  • Le système de chenilles assure une mobilité accrue sur chantier et facilite le travail en conditions difficiles.

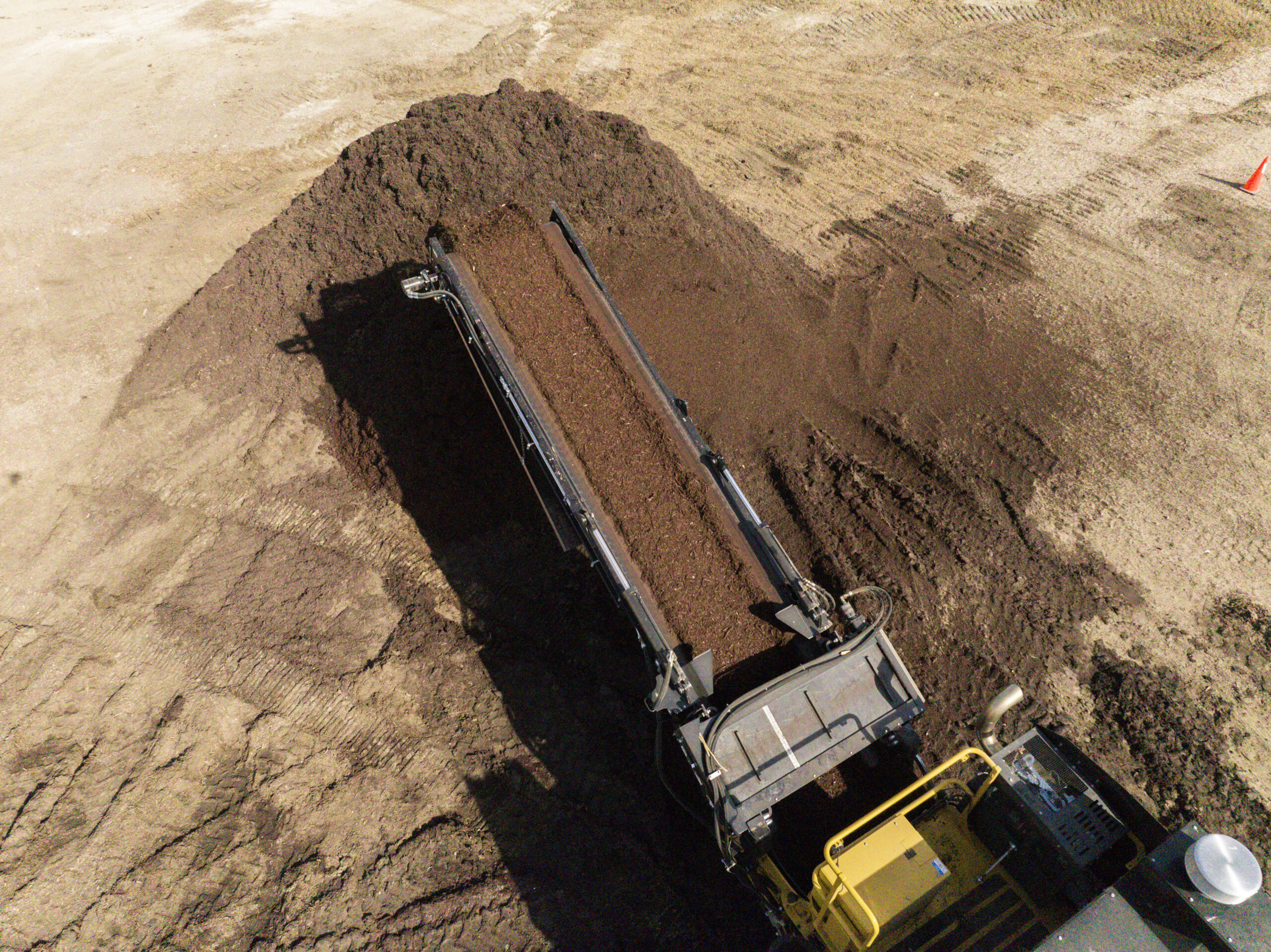

  • Le système de coloration intégré (en option) permet de valoriser le produit final tout en réduisant les coûts d’exploitation.

Par rapport à la première génération (G1), le HG4000TX G2 offre davantage de puissance, une alimentation optimisée et des technologies avancées pour améliorer les performances et la productivité.

Base Image
Small Image
Small Image
Small Image
Small Image
Small Image
Small Image
Small Image
Base Image
Small Image
Small Image
Small Image
Small Image
Small Image
Small Image
Small Image
Demander un Devis Télécharger la brochure vermeer icon

Les broyeurs horizontaux Vermeer répondent aux exigences des professionnels du recyclage et de la valorisation des déchets verts. Leur conception robuste et leurs configurations possibles permettent d’adapter la machine à votre matériau et à votre cadence.

Selon vos besoins, vous choisissez la longueur de table d’alimentation et la puissance. Le tambour duplex breveté et les déflecteurs d’objets projetés contribuent à la performance et à la sécurité. Contactez Vermeer France pour choisir le modèle et demander un devis.

Général

Fabricant Vermeer
Modèle Broyeur horizontal HG4000TX G2
Catégorie Recyclage
Prix Demander un devis

General Dimensions and Lengths - Long Infeed

Maximum Length - Transport 36.1ft (11m)
Maximum Length (Operation) 52.8ft (16.1m)
Maximum Width (Transport) 8.2ft (2.5m)
Maximum Height (Transport) 11.5ft (3.5m)
Weight 65000lbs (29483.5kg)
Make and Model CAT® C13B T4F/Stage V
Number of Cylinders 6
Gross Horsepower (Maximum) 536hp (399.7kw)
Torque (Max) 1807ft-lb (2450Nm)
Fuel Tank Capacity 200gal (757.1L)
Max Fuel Consumption 27.2gph (103lph)
Fuel Type Ultra-low sulfur diesel (<15 ppm)
Diesel exhaust fluid capacity 17.3gal (65.5L)
Air Cleaner Dry-type with primary and secondary elements and restriction indicator
Oil Filter Full-flow, spin-on
Recommended Oil API CK-4, 10W-30
Cooling Medium Liquid (nitrite-free, pre-diluted 50/50)
Coolant Capacity (Engine and Radiator) 10.5gal (39.7L)
Oil volume with filter 10.8gal (40.9L)
Air to boil temperature 126 F (52 C)
Alternator 24 V 270 A
Fan Flexxaire® (variable pitch)
Fan - CAC Electric (variable speed)
Clutch Type Hydraulic-operated twin disc
Clutch Engagement Push button
Drive Belt Type V-belt
Sound Power 112.7 dB(A)
Make and Model CAT® C13A Tier 3/Stage IIIA
Number of Cylinders 6
Gross Horsepower (Maximum) 480hp (357.9kw)
Torque (Max) 1736ft-lb (2353.7Nm)
Fuel Tank Capacity 200gal (757.1L)
Max Fuel Consumption 24.2gph (91.6lph)
Fuel Type Diesel
Air Cleaner Dry-type with primary and secondary elements and restriction indicator
Oil Filter Full-flow, spin-on
Recommended Oil API CH-4, 10W-30
Oil volume with filter 10.6gal (40.1L)
Cooling Medium Liquid (nitrite-free, pre-diluted 50/50)
Coolant Capacity (Engine and Radiator) 10.5gal (39.7L)
Air to boil temperature 132 F (55 C)
Alternator 24 V 270 A
Fan Flexxaire® (variable pitch)
Clutch Type Hydraulic-operated twin disc
Clutch Engagement Push button
Drive Belt Type V-belt
Sound Power 112.8 dB(A)
Feed Table Width 60in (152.4cm)
Feed Table Depth 20in (50.8cm)
Feed Table Length - Option One 15ft (4.6m)
Feed Table Capacity 4.6cu yd (3.5cu m)
Loading Height 6.4ft (2m)
Flare Construction Integrated with bolt-on corner flare
Feed Conveyor Type Welded slat chain
Material Construction Steel
Drive Type Fixed displacement motor
Drive Roller Construction Welded steel
Front Idler Roller Construction Self-cleaning auger
Infeed Floor Construction Welded steel
Infeed Roller Length 28in (71.1cm)
Infeed Roller Width 56in (142.2cm)
Feed opening 60 in x 30 in (152.4 cm x 76.2 cm)
Infeed roller weight with arm 2700lbs (1224.7kg)
Infeed Roller Diameter 28in (71.1cm)
Material Type Steel
Tooth Design Serrated bars
Number of Teeth 10
Drive Motor Fixed displacement motor/planetary
Drive Planetary 34.2:1
Feed Roller Down Pressure Adjustable
Thrown Object Deflector Standard
Deflector Position Variable
Curtain description Rubber
Millbox Opening 60-in (152.4-cm) wide x 30.5-in (77.5-cm) high
Drum Weight 5370lbs (2435.8kg)
Drum Diameter 22.5in (57.2cm)
Tip Diameter 31.3in (79.5cm)
Drum Cutting Width 60.9in (154.7cm)
Drum Skin Thickness 1.5in (3.8cm)
Drum Speed 1113rpm
Tip speed (Duplex) 9615ft/min (2930.7m/min)
Bearing Type Double row spherical roller
Bearing - Inner Race Diameter 4.3in (10.9cm)
Bearing - Dynamic Capacity 136000lbs (61688.6kg)
Number of Hammers 9
Number of Tips 18
Tip types 18
Center Retention Pin Dimensions 2-in (5-cm) diameter x 75.3-in (191-cm) long
Number of Wipers Four spiral fan
Millbox Opening 60-in (152.4-cm) wide x 31-in (78.7-cm) high
Drum Weight 4707lbs (2135.1kg)
Drum Diameter 27.3in (69.3cm)
Drum Cutting Width 60in (152.4cm)
Drum Skin Thickness 1.3in (3.3cm)
Depth of Cut Adjustable: .125 in (.31 cm) to 1 in (2.5 cm)
Number of Knives 12
Knife Thickness .625 in (16 mm)
Useable Edges One
Material A8 mod chipper steel
Number of Bolts/Knife Two
Replaceable Threaded Knife Block Yes
Number of Pockets 12
Drum Speed 842rpm
Tip speed (1-in chip) 7274ft/min (2217.1m/min)
Bearing Type Double row spherical roller
Bearing - Inner Race Diameter 4.3in (10.9cm)
Bearing - Dynamic Capacity 136000lbs (61688.6kg)
Shaft diameter 5in (12.7cm)
Shaft Retention Type Keyless bushing
Screen Weight Varies
Screen Dimensions .75-in (1.9-cm) thick
Screen Type Abrasion-resistant steel
Number of Screens Two
Screen Area 3131sq in (20200sq cm)
Millbox lid liner Abrasion-resistant steel
Number of Sides One
Millbox Lid Liner Dimensions 62-in (157.4-cm) wide x 21.5-in (54.6-cm) high x 16-in (40.6-cm) radius
Anvil Type Adjustable - replaceable wear surfaces
Anvil Dimensions 6.1-in (15.6-cm) high x 73.5-in (186.7-cm) long x 13.6-in (34.5-cm) wide

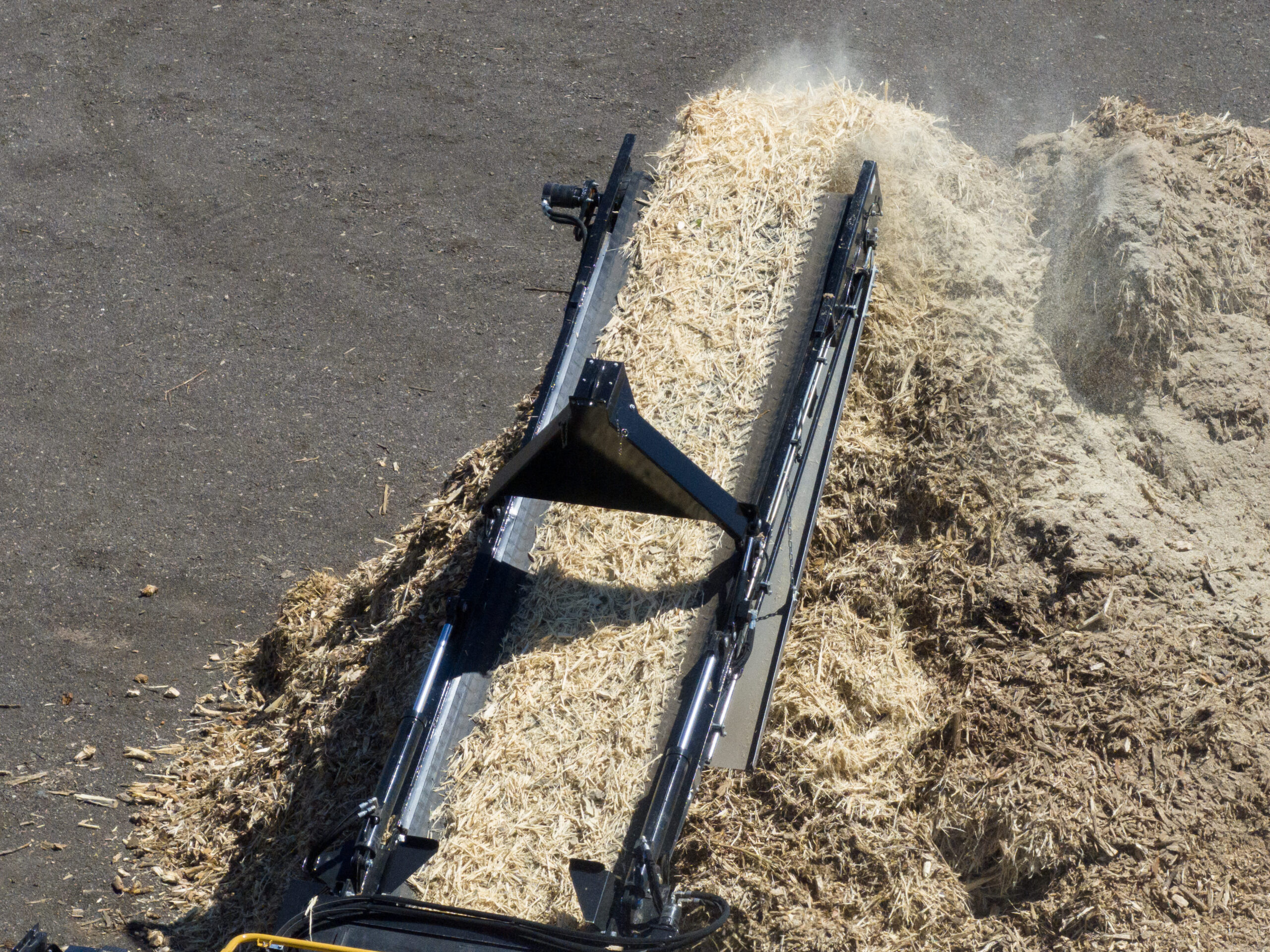

Length 20ft (6.1m)
Width 48in (121.9cm)
Belt Design 3-ply - 330# with V-cleat
Splice R2 stainless steel cable
Return Roller Quantity 3
Idler Roller Diameter 12in (30.5cm)
Idler Roller Bearing 1-15/16, 4-bolt flange
Magnetic Drive Roller Diameter 12.8in (32.5cm)
Drive Motor Fixed displacement
Belt Speed 625ft/min (190.5m/min)
Load Height 14ft (4.3m)
Tank capacity 20gal (75.7L)
Recommended Oil Vermeer HyPower 68
Filtration Method Single in-tank return filter
Number of Coolers 1
Components Dual PVG-32 valves
System Type Open-loop, pressure and flow compensated
Pump Type Variable displacement, axial piston
Pump Flow at Maximum RPM 25.3 gpm (96.5 L/min)
System Relief Pressure 3,000 psi (206.8 bar)
System Type Open-loop
Pump Type Fixed displacement gear pump
Pump Flow at Maximum RPM 16.3gpm (61.7L/min)
System Relief Pressure 2,900 psi (200 bar)
Motor Series TH
System Voltage 24 V
Battery 8D-MHD, 1400 CCA (qty. 2)
System Protection Fused
Display Type LCD
Engine Information Yes
Machine Information Yes
Operational Faults Yes
Gauges No
Switches Sealed membrane CAN bus keypad

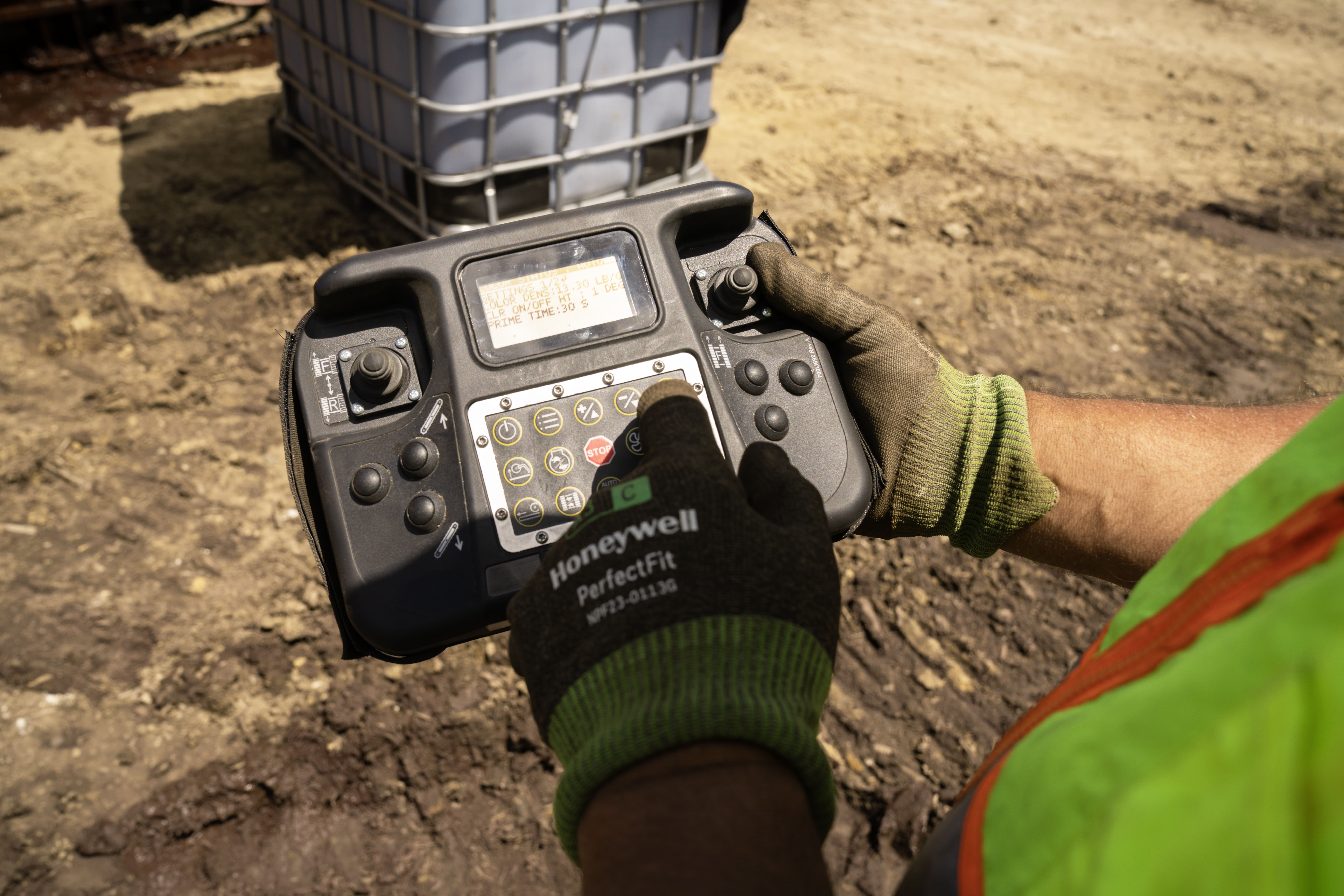

Radio remote type LCD
Display Type LCD
Engine Information Yes
Machine Information Yes
Operational Faults Yes
Gauges No
Switches Sealed membrane
Operating Range 300 ft (91.4 m)
Battery Type AA (qty. 6)
Channel Setting 50 channels
Frame Description Unit body construction
Track Type D4 triple or double grouser
Track Drive Pump Type Closed-loop
Track Drive Motor Type Two-speed bent axis axial piston
Track Brake Type Hydraulic release
Track Length on Ground 10.9 ft (3.3 m)
Track Width - Option One 18 in (45.7 cm)
Track Width Option One - Ground Bearing Pressure - Hard Ground 11.2psi (77.2kPa)
Type of Idler D4 track roller
Number of Idlers 9
Maximum Speed 2.8mph (4.5km/h)
Low Speed Travel in Creep Mode 1.4mph (2.3km/h)
Screens Yes
Tips Yes
Special Tools Group Yes
Magnetic discharge conveyor pulley Yes
Extended Warranty Yes
Preventative Maintenance Yes
Special Paint Yes
Vermeer Confidence Plus Asset Protection Program Yes
