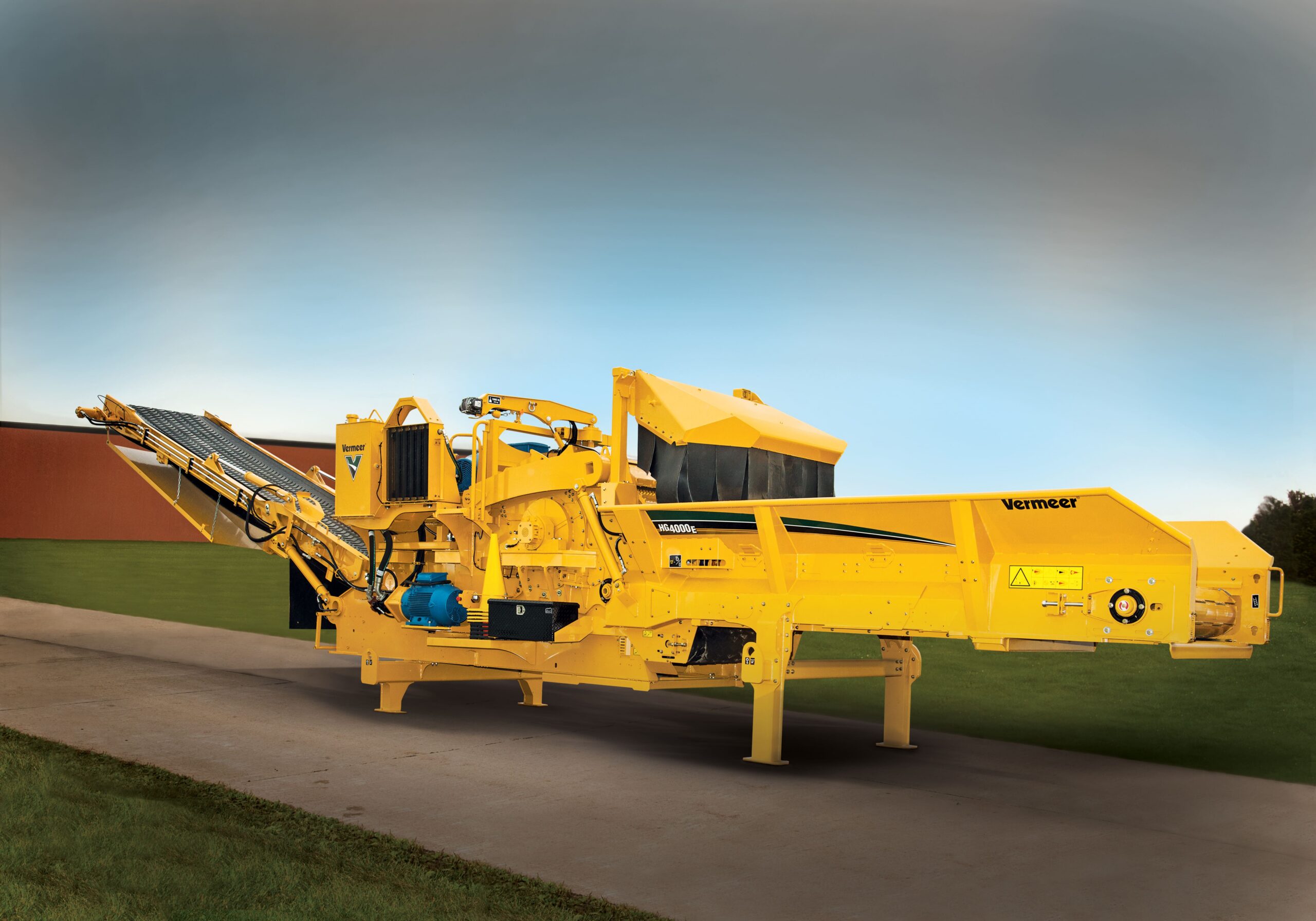

Broyeur horizontal HG4000E

  • Le broyeur horizontal HG4000E Vermeer est une solution électrique conçue pour le broyage de biomasse, bois et déchets verts.
  • Son moteur électrique WEG de 500 hp (373 kW) assure une puissance régulière pour les applications exigeantes.
  • Sa large table d’alimentation de 152,4 cm facilite le chargement de volumes importants de matériaux.
  • Les options de tambour duplex et de tambour à copeaux offrent plus de flexibilité selon le produit final souhaité.
  • Le double tamis améliore l’efficacité de traitement et le calibrage du broyat.

Contrairement au HG4000 thermique, le HG4000E fonctionne avec une motorisation électrique, idéale pour les sites fixes recherchant performance et réduction des émissions directes.

Base Image
Small Image
Base Image
Small Image
Demander un Devis Télécharger la brochure vermeer icon

Les broyeurs horizontaux Vermeer répondent aux exigences des professionnels du recyclage et de la valorisation des déchets verts. Leur conception robuste et leurs configurations possibles permettent d’adapter la machine à votre matériau et à votre cadence.

Selon vos besoins, vous choisissez la longueur de table d’alimentation et la puissance. Le tambour duplex breveté et les déflecteurs d’objets projetés contribuent à la performance et à la sécurité. Contactez Vermeer France pour choisir le modèle et demander un devis.

General

Manufacturer Vermeer
Model Broyeur horizontal HG4000E
Category Recyclage
Price Request a Quote

General Dimensions and Lengths - Long Infeed

Maximum Length - Transport 31.1ft (9.5m)
Maximum Length (Operation) 47.1ft (14.4m)
Maximum Width Transport - with Dolly 8.4ft (2.6m)
Maximum Height Transport with Dolly 11.9in (30.2cm)
Weight 38900lbs (17644.7kg)
Maximum Width 100in (254cm)
Maximum Length - Folding Conveyor 47.1ft (14.4m)
Maximum Height - Folding Conveyor 143ft (43.6m)
Weight 38900lbs (17644.7kg)
Rear Pad Weight 25000lbs (11339.8kg)
Front Pad Weight 13900lbs (6304.9kg)
Sound Power 110.2 db(A) re1pW
Manufacturer Weg
Frame 145T
Horsepower 2hp (1.5kw)
Frequency 60 Hz
Phase 3 Phases
Rated Speed 1750rpm
Enclosure TEFC
Full Load Amps 2.61
Locked Rotor Amps 19.6
Service Factor 1.25
Duty Cycle S1 - Continuous
NEMA Design B
Insulation Class F
Full Load Torque 5.9ft-lb (8Nm)
Locked Rotor (%) 240
Break Down 300
Ambient Temperature 40c (1352f)
Nominal Efficiency 86.5% (NEMA Premium)
Power Factor 0.84
Approximate Weight 51lbs (23.1kg)
Added Items Terminal Block, C-Face
Drive Belt Type Direct
Manufacturer Weg
Frame 90L
Horsepower 2hp (1.5kw)
Voltage 380
Frequency 50
Phase 3
Rated Speed 1430rpm
Enclosure TEFC
Full Load Amps 3.32
Locked Rotor Amps 20.9
Service Factor 1
Duty Cycle S1 - Continuous
NEMA Design N
Insulation Class F
Full Load Torque 7.4ft-lb (10Nm)
Locked Rotor (%) 180
Break Down 250
Ambient Temperature 40c (1352f)
Nominal Efficiency IE2
Power Factor 0.83
Approximate Weight 49lbs (22.2kg)
Added Items Terminal Block, C-Face
Drive Belt Type Direct
Manufacturer Weg
Frame 326T
Horsepower 50hp (37.3kw)
Voltage 460
Frequency 60
Phase 3
Rated Speed 1775rpm
Enclosure TEFC
Full Load Amps 59.2
Locked Rotor Amps 367
Service Factor 1.25
Duty Cycle S1 - Continuous
NEMA Design B
Insulation Class F
Full Load Torque 146ft-lb (197.9Nm)
Locked Rotor (%) 230
Break Down 270
Ambient Temperature 40c (1352f)
Nominal Efficiency 94.5 (NEMA Premium)
Power Factor 0.83
Approximate Weight 536lbs (243.1kg)
Added Items Terminal Block, C-Face
Drive Belt Type Direct
Manufacturer Weg
Frame 225S/M
Horsepower 50hp (37.3kw)
Voltage 380
Frequency 50
Phase 3
Rated Speed 1475rpm
Enclosure TEFC
Full Load Amps 68.5
Locked Rotor Amps 534
Service Factor 1
Duty Cycle S1-Continuous
NEMA Design N
Insulation Class F
Full Load Torque 177ft-lb (240Nm)
Locked Rotor (%) 250
Break Down 270
Ambient Temperature 40c (1352f)
Nominal Efficiency 94.3 (IE3)
Power Factor .87
Approximate Weight 864lbs (391.9kg)
Added Items Terminal Block, C-Face
Drive Belt Type Direct
Manufacturer Weg
Frame 586/7z
Voltage 460 Volt
Frequency 60 Hz
Phase 3
Rated Speed 1790rpm
Enclosure TEFC
Full Load Amps 564
Locked Rotor Amps 3610
Service Factor 1.15
Duty Cycle S1 - Continuous
NEMA Design B
Insulation Class F
Full Load Torque 1447ft-lb (1961.9Nm)
Locked Rotor (%) 210
Break Down 200
Ambient Temperature 40c (1352f)
Nominal Efficiency 95.8 (NEMA High)
Power Factor 0.86
Approximate Weight 3912lbs (1774.5kg)
Added Items Terminal Block, Thermostat (155C), Inverter Duty, Crusher Duty, Roller Bearings
Drive Belt Type Belt
Manufacturer Weg
Frame 355 M/L
Horsepower 500hp (372.8kw)
Voltage 380
Frequency 50
Phase 3
Rated Speed 1490rpm
Enclosure TEFC
Full Load Amps 675
Locked Rotor Amps 4730
Service Factor 1
Duty Cycle S1-Continuous
NEMA Design N
Insulation Class F
Full Load Torque 1750ft-lb (2372.7Nm)
Locked Rotor (%) 210
Break Down 220
Ambient Temperature 40c (1352f)
Nominal Efficiency 95.7 (IE2)
Power Factor .87
Approximate Weight 4346lbs (1971.3kg)
Added Items Terminal Block, Thermostat (155C), Inverter Duty, Roller Bearings
Drive Belt Type Belt
Height 90in (228.6cm)
Width 119in (302.3cm)
Depth 26in (66cm)
Weight 3020lbs (1369.8kg)
Feed Table Width 60in (152.4cm)
Feed Table Depth 21in (53.3cm)
Feed Table Length - Option One 15ft (4.6m)
Feed Table Capacity 4.8cu yd (3.7cu m)
Loading Height 6.5ft (2m)
Flare Construction Integrated with frame
Feed Conveyor Type Welded slat chain
Material Construction steel
Drive Type Radial piston motor
Drive Roller Construction Welded steel
Front Idler Roller Construction Self-cleaning steel auger
Infeed Floor Construction Welded steel with replaceable UHMW wear plates
Infeed Roller Width 58in (147.3cm)
Infeed Roller Weight 1000lbs (453.6kg)
Infeed Roller Diameter 28in (71.1cm)
Maximum Feed Height 26in (66cm)
Material Type Fabricated steel
Tooth Design Serrated bars
Number of Teeth 10 bars
Drive Motor Fixed displacement, Geroler
Drive Planetary 34.2:1
Feed Roller Down Pressure Adjustable
Thrown Object Deflector Standard
Deflector Position Variable
Millbox Opening 60" (152 cm) wide x 26" (66 cm) high
Drum Diameter 22.5in (57.2cm)
Tip Diameter 31.3in (79.6cm)
Drum Cutting Width 60.6in (153.9cm)
Drum Skin Thickness 1.5in (3.8cm)
Drum Speed 1125rpm
Bearing Type Double-row, spherical roller
Bearing - Inner Race Diameter 4.3in (10.9cm)
Number of Hammers 9
Number of Tips 18
Center Retention Pin Dimensions 2" (5 cm) dia. x 75.25" (191 cm) long
Millbox Opening 60" (152 cm) wide x 26" (66 cm) high
Drum Diameter 22.5in (57.2cm)
Tip Diameter 31.3in (79.6cm)
Drum Cutting Width 60.6in (153.9cm)
Drum Skin Thickness 1.5in (3.8cm)
Drum Speed 845rpm
Bearing Type Double-row, spherical roller
Bearing - Inner Race Diameter 4.3in (10.9cm)
Number of Hammers 9
Number of Tips 18
Center Retention Pin Dimensions 2" (5 cm) dia. x 75.25" (191 cm) long
Screen Dimensions 3/4" (1.9 cm) thick
Screen Type Fabricated out of abrasion-resistant steel
Number of Screens 2
Screen Area 3131sq in (20200sq cm)
Number of Sides 1
Millbox Lid Liner Dimensions Abrasion-resistant steel
Liner Dimensions 1/2" (1.3 cm) thick x 5" (12.7 cm) wide x 61.6" (156.5 cm) long
Anvil Type Fabricated steel with replaceable wear surfaces
Length 71.3ft (21.7m)
Width 48in (121.9cm)
Belt Design 3-ply - 330# with V-cleat
Splice R2-stainless steel
Return Roller Quantity 3
Idler Roller Diameter 12in (30.5cm)
Idler Roller Bearing 1-15/16, 4-bolt flange
Standard Drive Roller Diameter 12.8in (32.5cm)
Magnetic Drive Roller Diameter 12.8in (32.5cm)
Drive Motor Fixed displacement, Geroler
Belt Speed 529ft/min (161.2m/min)
Load Height 14ft (4.3m)
Tank capacity 60gal (227.1L)
Recommended Oil Vermeer HyPower 68
Filtration Method Dual in-tank return filters (B5=200)
Number of Coolers 1
System Type Open-loop, pressure- and flow-compensated
Pump Type Variable displacement, axial piston
Pump Flow at Maximum RPM 25.9 (60HZ) ; 24.9 (50HZ)
System Relief Pressure 3000
System Type Open-loop
Pump Type Fixed displacement, gear pump
Pump Flow at Maximum RPM 14.7gpm (55.6L/min)
System Relief Pressure 3000
Motor Series Char-Lyn 6000 Series, Geroler
System Voltage 380V or 460V
System Protection Fused
Display Type LCD
Engine Information Yes
Machine Information Yes
Operational Faults Yes
Gauges Hydraulic pressure (implement circuit)
Switches Moisture-proof, toggle style
Display Type LCD
Engine Information Yes
Machine Information Yes
Operational Faults Yes
Switches Sealed membrane
Operating Range Up to 300' (91.4 m)
Battery Type AA (qty 6)
Channel Setting 50 channels
Frame Description Unit body construction
Suspension Type Spring
Manufacturer - Option One Hendrickson
Capacity per Axle 20000lbs (9071.8kg)
Number of Axles 2
Tires - Option One 425/65R22.5 super singles
Wheels - Option One Aluminum
Tires - Option Two 385/65R22.5 super singles
Wheels - Option Two Aluminum
Screens Yes
Special Tools Group Yes
Extended Warranty Yes
Preventative Maintenance Yes
Special Paint Yes
