Vermeer Equipment Broyeurs horizontaux Broyeur horizontal HG4000 à Configuration européenne

Broyeur horizontal HG4000 à Configuration européenne

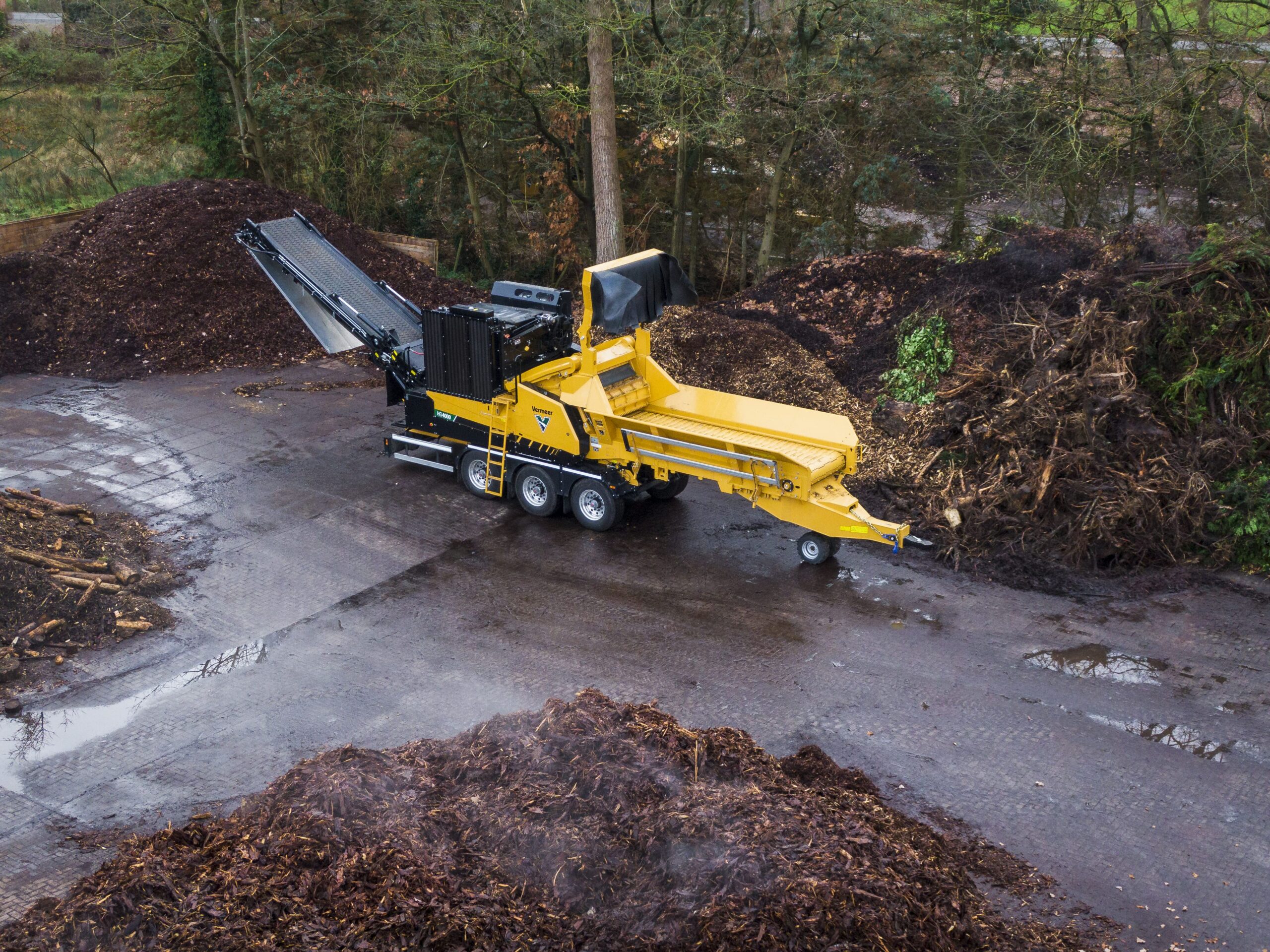

  • Le broyeur horizontal HG4000 à configuration européenne Vermeer est conçu pour le broyage de biomasse, bois et déchets verts.

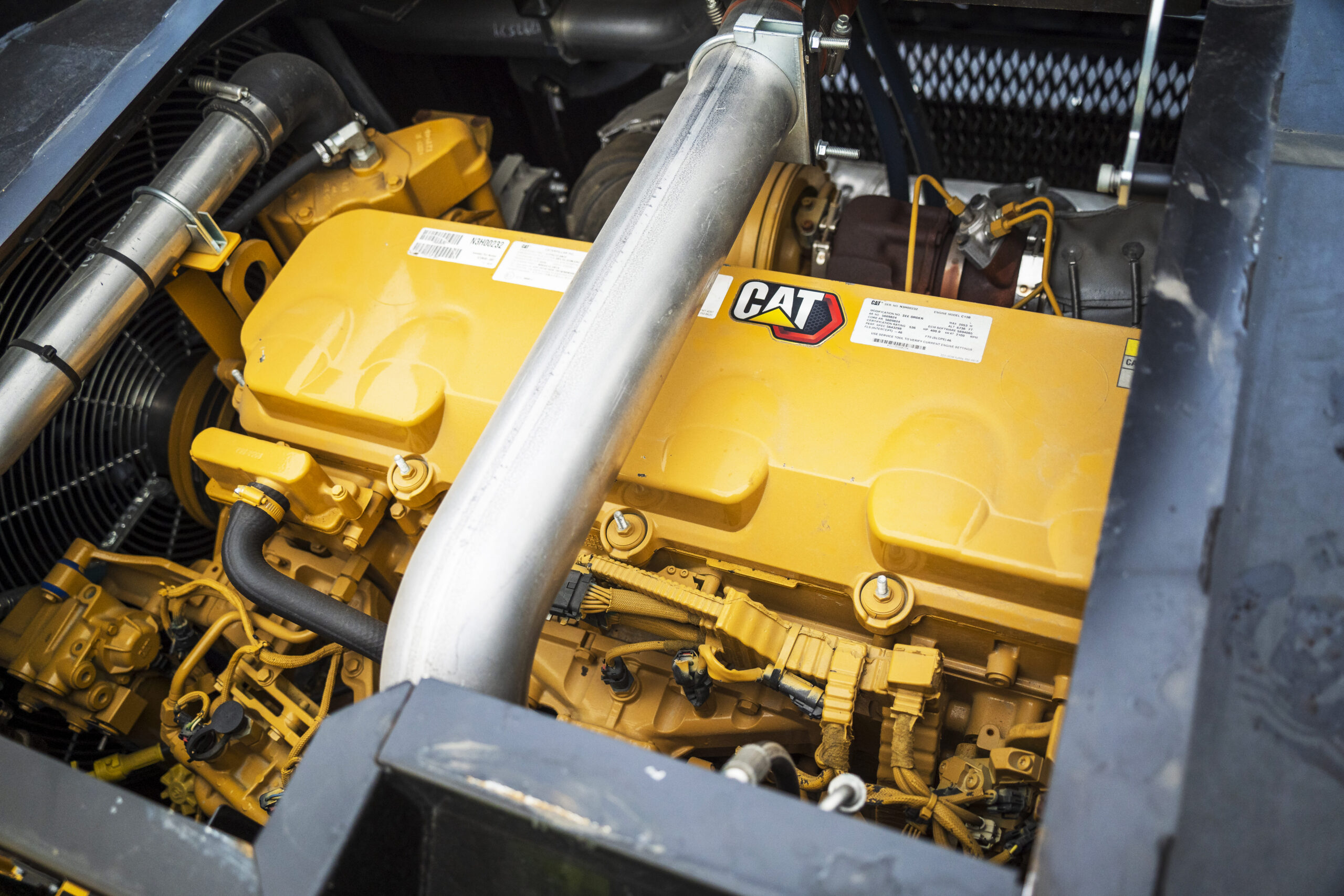

  • Son moteur CAT C13B de 536 hp (400 kW) offre une puissance adaptée aux applications exigeantes.
  • Le tambour duplex Série III assure des performances de coupe élevées et une meilleure durée de vie des composants.

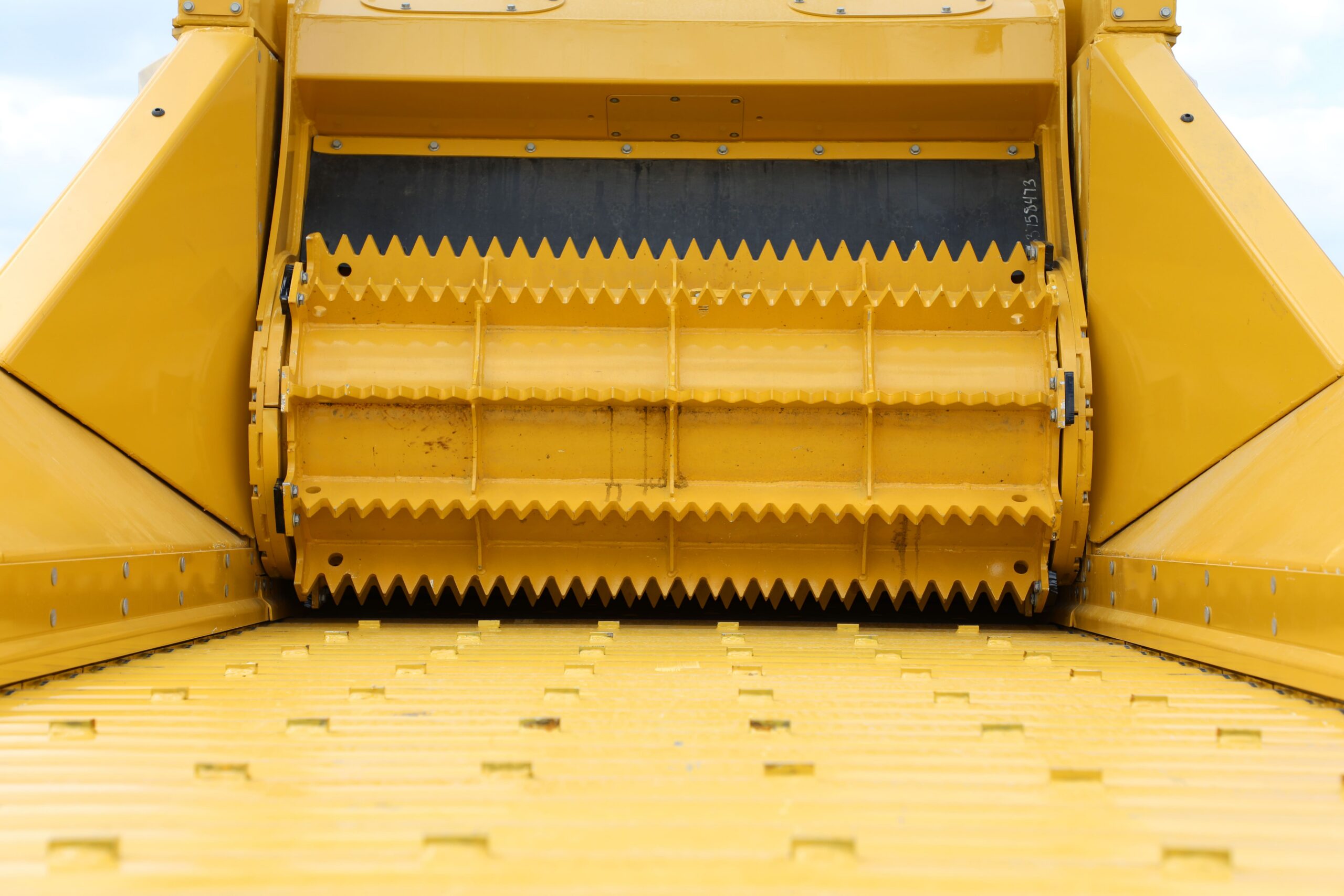

  • Le rouleau d’alimentation agressif garantit un flux de matériaux régulier et efficace.

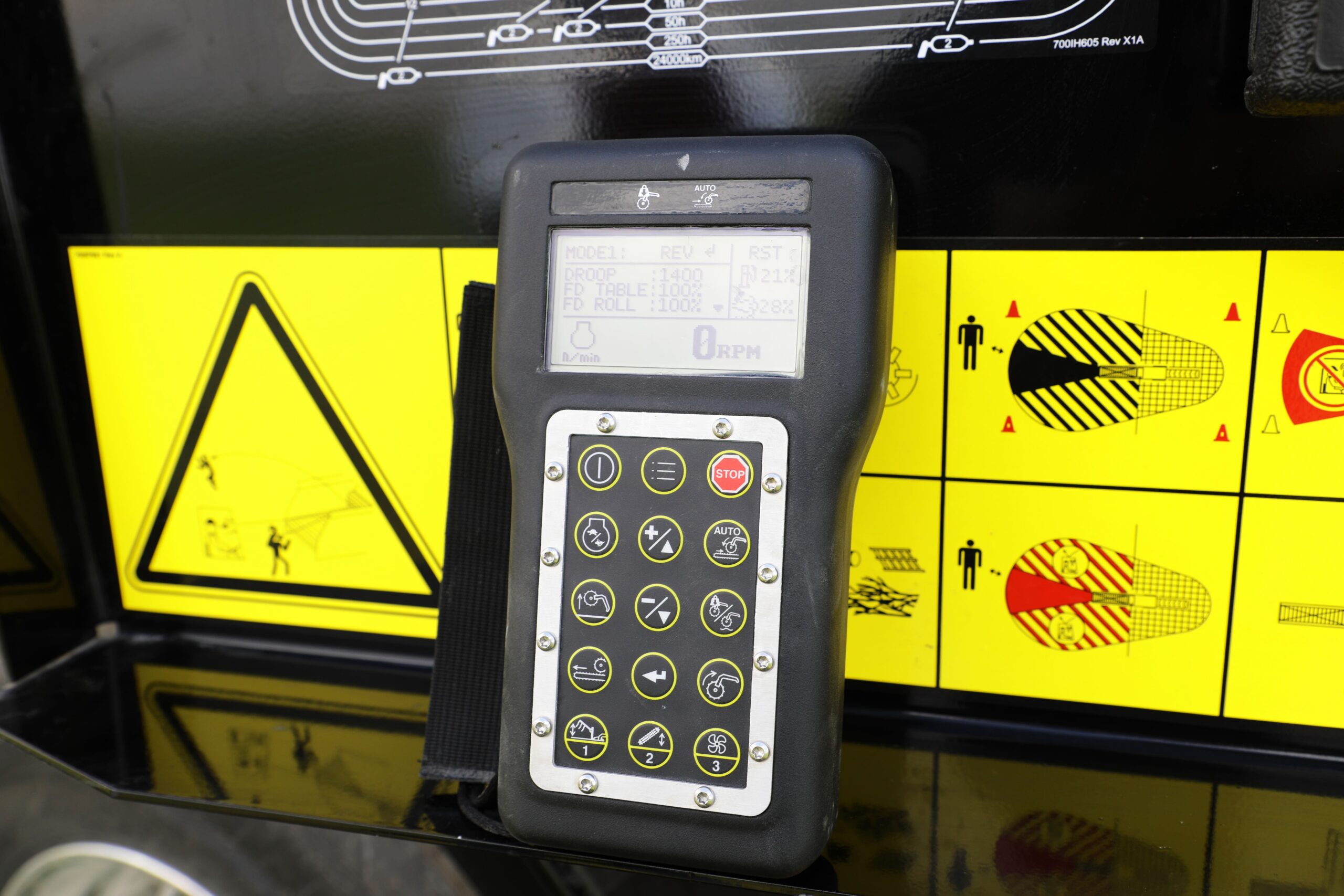

  • La télécommande sans fil permet un contrôle précis et sécurisé de la machine à distance.
  • Le système Damage Defense (en option) protège la machine contre l’introduction de contaminants métalliques.

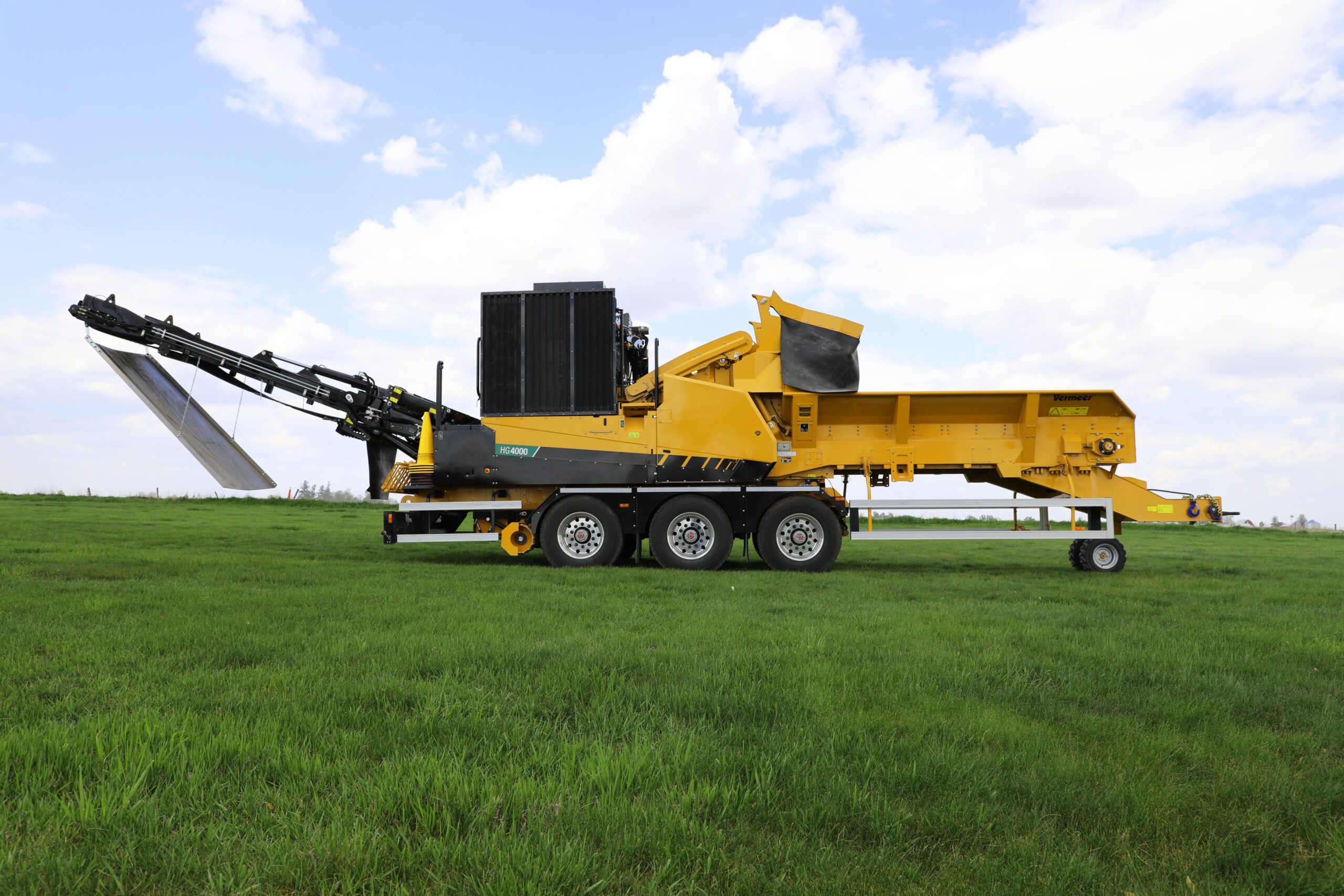

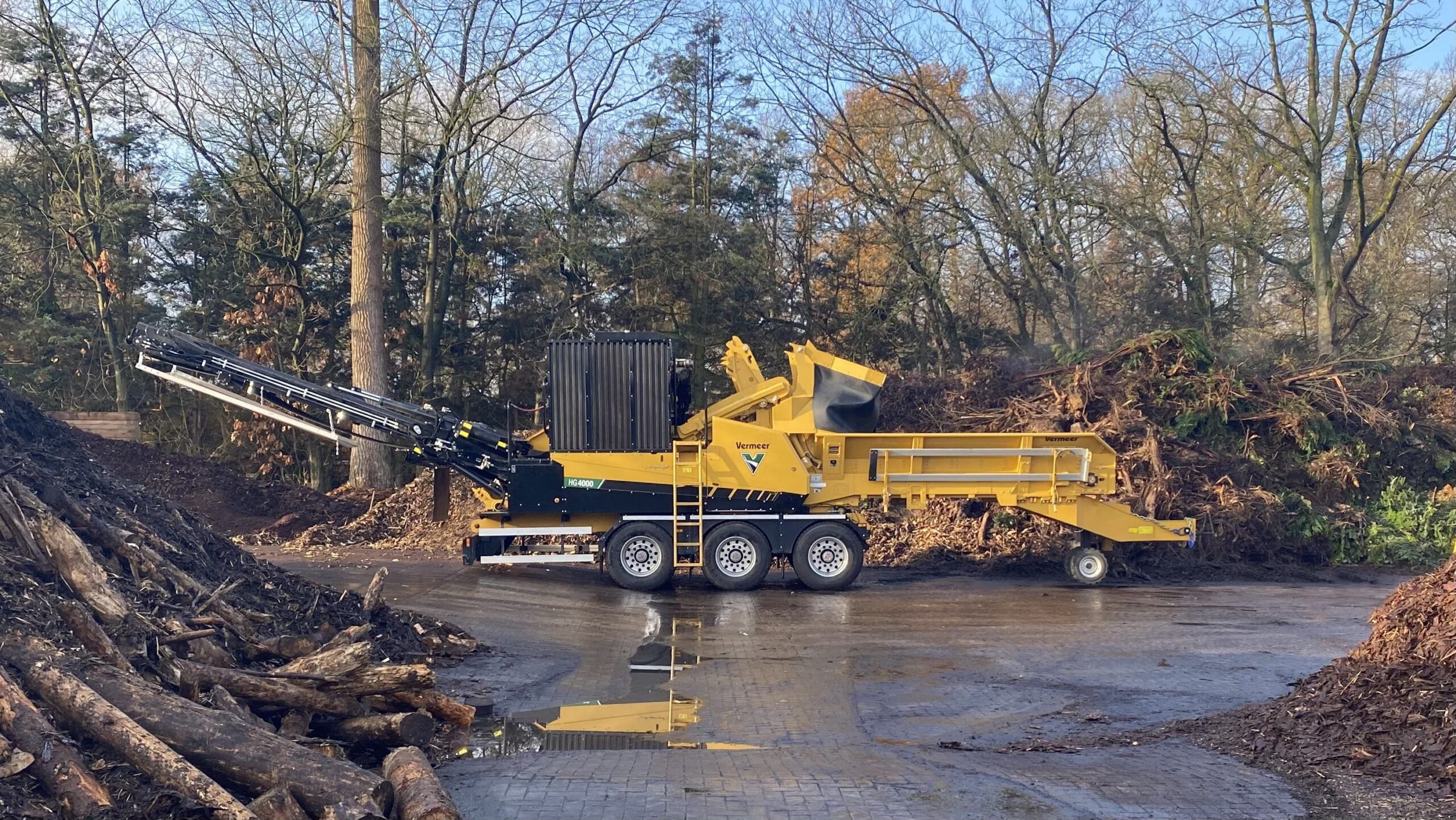

Contrairement au HG4000TX monté sur chenilles, le HG4000 à configuration européenne est monté sur roues, offrant une meilleure mobilité routière et une utilisation adaptée aux sites nécessitant des déplacements fréquents.

Base Image
Small Image
Small Image
Small Image
Small Image
Small Image
Small Image
Small Image
Small Image
Small Image
Small Image
Base Image
Small Image
Small Image
Small Image
Small Image
Small Image
Small Image
Small Image
Small Image
Small Image
Small Image
Demander un Devis Télécharger la brochure vermeer icon

Les broyeurs horizontaux Vermeer répondent aux exigences des professionnels du recyclage et de la valorisation des déchets verts. Leur conception robuste et leurs configurations possibles permettent d’adapter la machine à votre matériau et à votre cadence.

Selon vos besoins, vous choisissez la longueur de table d’alimentation et la puissance. Le tambour duplex breveté et les déflecteurs d’objets projetés contribuent à la performance et à la sécurité. Contactez Vermeer France pour choisir le modèle et demander un devis.

Général

Fabricant Vermeer
Modèle Broyeur horizontal HG4000 à Configuration européenne
Catégorie Recyclage
Prix Demander un devis

General Dimensions and Lengths - Long Infeed

Maximum length - Transport (Pintle) 37ft (11.3m)
Maximum length - Transport (5th wheel) 32ft (9.8m)
Maximum Length (Operation) 52ft (15.8m)
Maximum Width (Transport) 8.2ft (2.5m)
Maximum Height (Transport) 13ft (4m)
Maximum weight (Pintle) 55155lbs (25017.9kg)
Maximum weight (5th wheel) 52910lbs (23999.6kg)
Maximum tongue weight (Pintle) 2200lbs (997.9kg)
Maximum tongue weight (5th wheel) 15432lbs (6999.8kg)
Maximum axle weight (Pintle) 52910lbs (23999.6kg)
Maximum axle weight (5th wheel) 37478lbs (16999.7kg)
Make and Model CAT C13B Tier 4 final/Stage V
Number of Cylinders 6
Gross Horsepower (Maximum) 536hp (399.7kw)
Torque (Max) 1807ft-lb (2450Nm)
Fuel Tank Capacity 200gal (757.1L)
Max Fuel Consumption 27.2gph (103lph)
Fuel Type Ultra-low sulfur diesel
Diesel exhaust fluid capacity 17.3gal (65.5L)
Air Cleaner Dry-type with primary and secondary elements and restriction indicator
Oil Filter Full-flow, spin-on
Recommended Oil API CJ-4, 15W-40
Cooling Medium Liquid (nitrite-free, pre-diluted 50/50)
Coolant Capacity (Engine and Radiator) 10.5gal (39.7L)
Oil volume with filter 9gal (34.1L)
Air to boil temperature 128° F (53° C)
Alternator 24 V 250 A
Fan Flexxaire (variable pitch)
Fan - CAC Electric (variable speed)
Clutch Type Hydraulic-operated twin disc
Clutch Engagement Push button
Drive Belt Type V-belt
Sound Power 112.3 dB
Feed Table Width 60in (152.4cm)
Feed Table Depth 20in (50.8cm)
Feed Table Length - Option One 15ft (4.6m)
Feed Table Capacity 4.6cu yd (3.5cu m)
Loading Height 7.6ft (2.3m)
Flare Construction Integrated with bolt on corner flare
Feed Conveyor Type Welded slat chain
Material Construction Steel
Drive Type Fixed displacement motor
Drive Roller Construction Welded steel
Front Idler Roller Construction Self-cleaning auger
Infeed Floor Construction Welded steel
Infeed Roller Width 56in (142.2cm)
Feed opening 42-in (106.7-cm) high x 60-in (152.4-cm) wide
Infeed roller weight with arm 2700lbs (1224.7kg)
Infeed Roller Diameter 28in (71.1cm)
Material Type Steel
Tooth Design Serrated bars
Number of Teeth 10
Drive Motor Fixed displacement motor/planetary
Drive Planetary 34.2:1
Feed Roller Down Pressure Adjustable
Thrown Object Deflector Standard
Deflector Position Variable
Curtain description Rubber
Millbox Opening 60-in (152.4-cm) wide x 31-in (78.7-cm) high
Drum Weight 5370lbs (2435.8kg)
Drum Diameter 22.5in (57.2cm)
Tip Diameter 31.3in (79.5cm)
Drum Cutting Width 60.9in (154.7cm)
Drum Skin Thickness 1.5in (3.8cm)
Drum Speed 1113rpm
Tip speed (Duplex) 9615ft/min (2930.7m/min)
Bearing Type Double row spherical roller
Bearing - Inner Race Diameter 4.3in (10.9cm)
Bearing - Dynamic Capacity 136000lbs (61688.6kg)
Number of Hammers 9
Number of Tips 18
Tip types Premium wide
Center Retention Pin Dimensions 2-in (5-cm) diameter x 75.3-in (191-cm) long
Number of Wipers Four-blade spiral fan
Millbox Opening 60-in (152.4-cm) wide x 31-in (78.7-cm) high
Drum Weight 4707lbs (2135.1kg)
Drum Diameter 27.3in (69.3cm)
Drum Cutting Width 60in (152.4cm)
Drum Skin Thickness 1.3in (3.3cm)
Depth of Cut Adjustable: .125 in (.31 cm) to 1 in (2.5 cm)
Number of Knives 12
Knife Thickness .625 in (1.6 cm)
Useable Edges 1
Material A8 mod chipper steel
Number of Bolts/Knife 2
Replaceable Threaded Knife Block Yes
Number of Pockets 12
Drum Speed 842rpm
Tip speed (1-in chip) 7274ft/min (2217.1m/min)
Bearing Type Double row spherical roller
Bearing - Inner Race Diameter 4.3in (10.9cm)
Bearing - Dynamic Capacity 136000lbs (61688.6kg)
Shaft diameter 5in (12.7cm)
Shaft Retention Type Keyless bushing
Screen Weight Varies
Screen Dimensions .75-in (1.9-cm) thick
Screen Type Abrasion-resistant steel
Number of Screens 2
Screen Area 3131sq in (20200sq cm)
Millbox lid liner Abrasion-resistant steel
Number of Sides 1
Liner Dimensions 62-in (157.4-cm) wide x 21.5-in (54.6-cm) high x 16-in (40.6-cm) radius
Anvil Type Adjustable, replaceable wear surfaces
Anvil Dimensions 6.1-in (15.6-cm) high x 73.5-in (186.7-cm) long x 13.6-in (34.5-cm) wide
Length 20ft (6.1m)
Width 48in (121.9cm)
Belt Design 3-ply, 330# with V-cleat
Splice R2 stainless steel cable
Return Roller Quantity 3
Idler Roller Diameter 12in (30.5cm)
Idler Roller Bearing 1-15/16, 4-bolt flange
Standard Drive Roller Diameter 12.8in (32.5cm)
Magnetic Drive Roller Diameter 12.8in (32.5cm)
Drive Motor Fixed displacement
Belt Speed 625ft/min (190.5m/min)
Load Height 14ft (4.3m)
Tank capacity 7.7gal (29.1L)
Recommended Oil Vermeer Hypower 68
Filtration Method Dual return filters
Number of Coolers 1
Components Dual PVG-32 valves
System Type Open-loop, pressure and flow compensated
Pump Type Variable displacement, axial piston
Pump Flow at Maximum RPM 25.3 gpm (96.5 L/min)
System Relief Pressure 3000 psi (206.8 bar)
System Type Open-loop
Pump Type Fixed displacement gear pump
Pump Flow at Maximum RPM 16.3gpm (61.7L/min)
System Relief Pressure 2900 psi (200 bar)
Motor Series TH
System Type Hydraulically-activated variable pitch
System Voltage 24 Volt
Battery 8D-MHD, 1400 CCA (qty. 2)
System Protection Fused

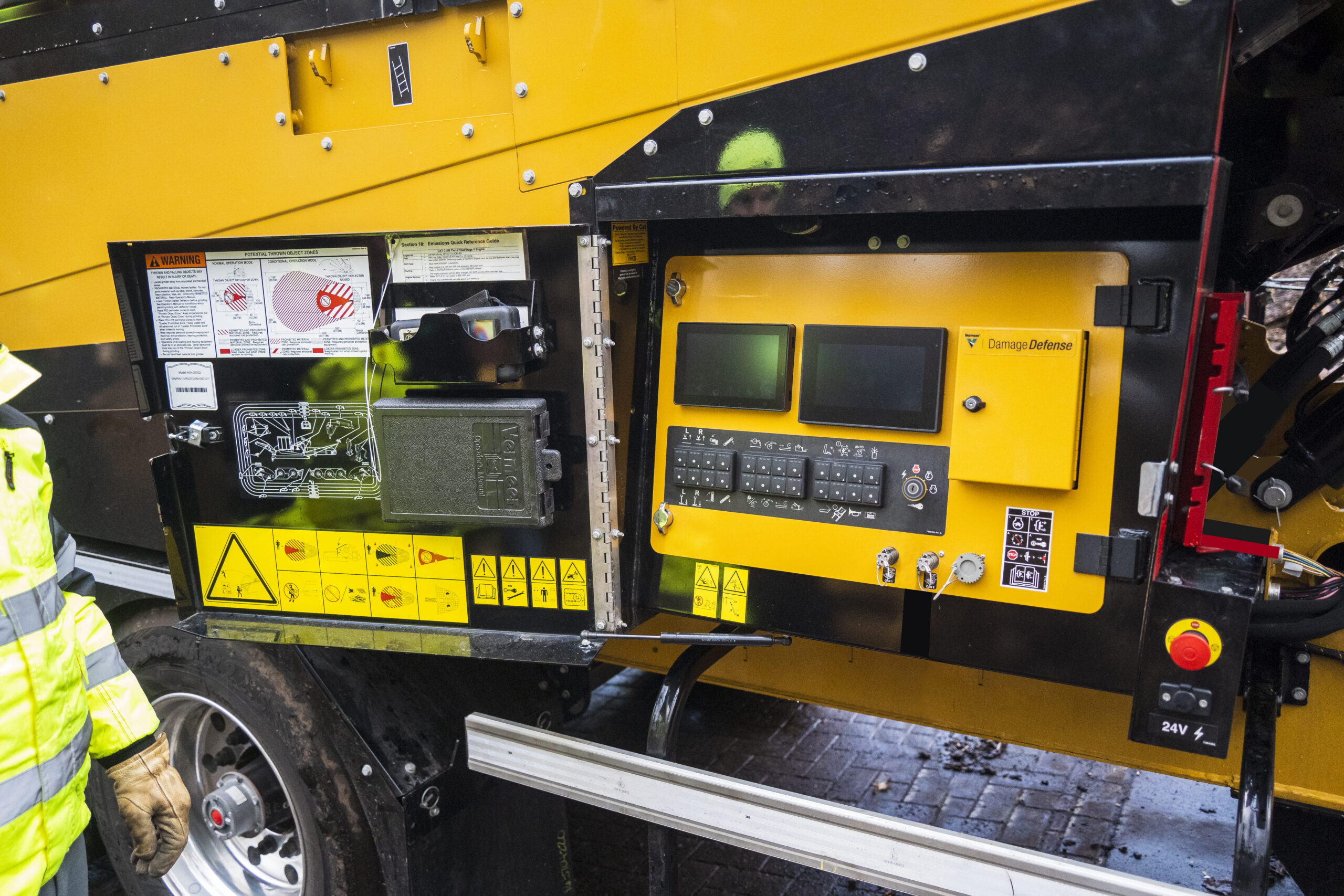

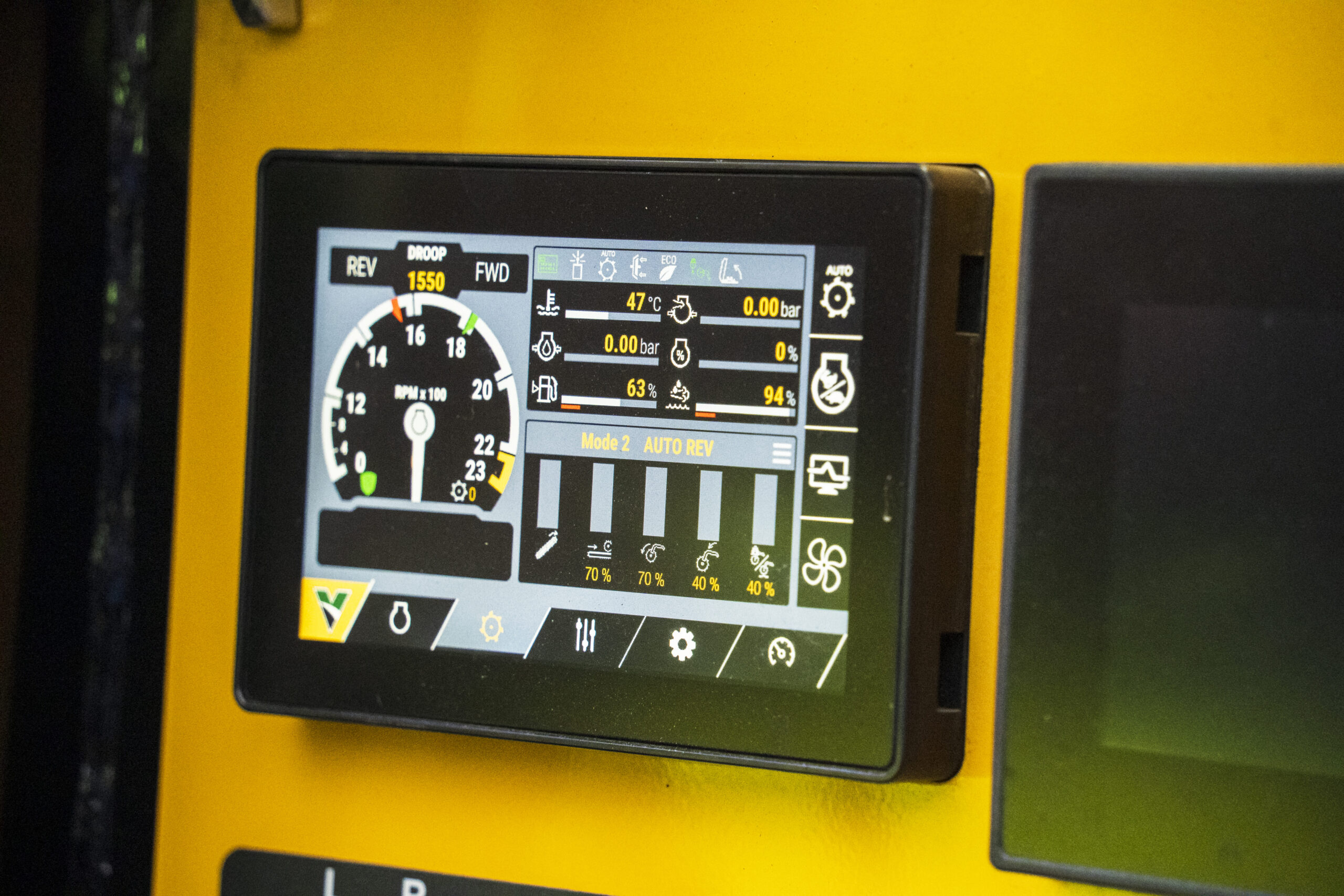

Display Type LCD
Engine Information Yes
Machine Information Yes
Operational Faults Yes
Gauges No

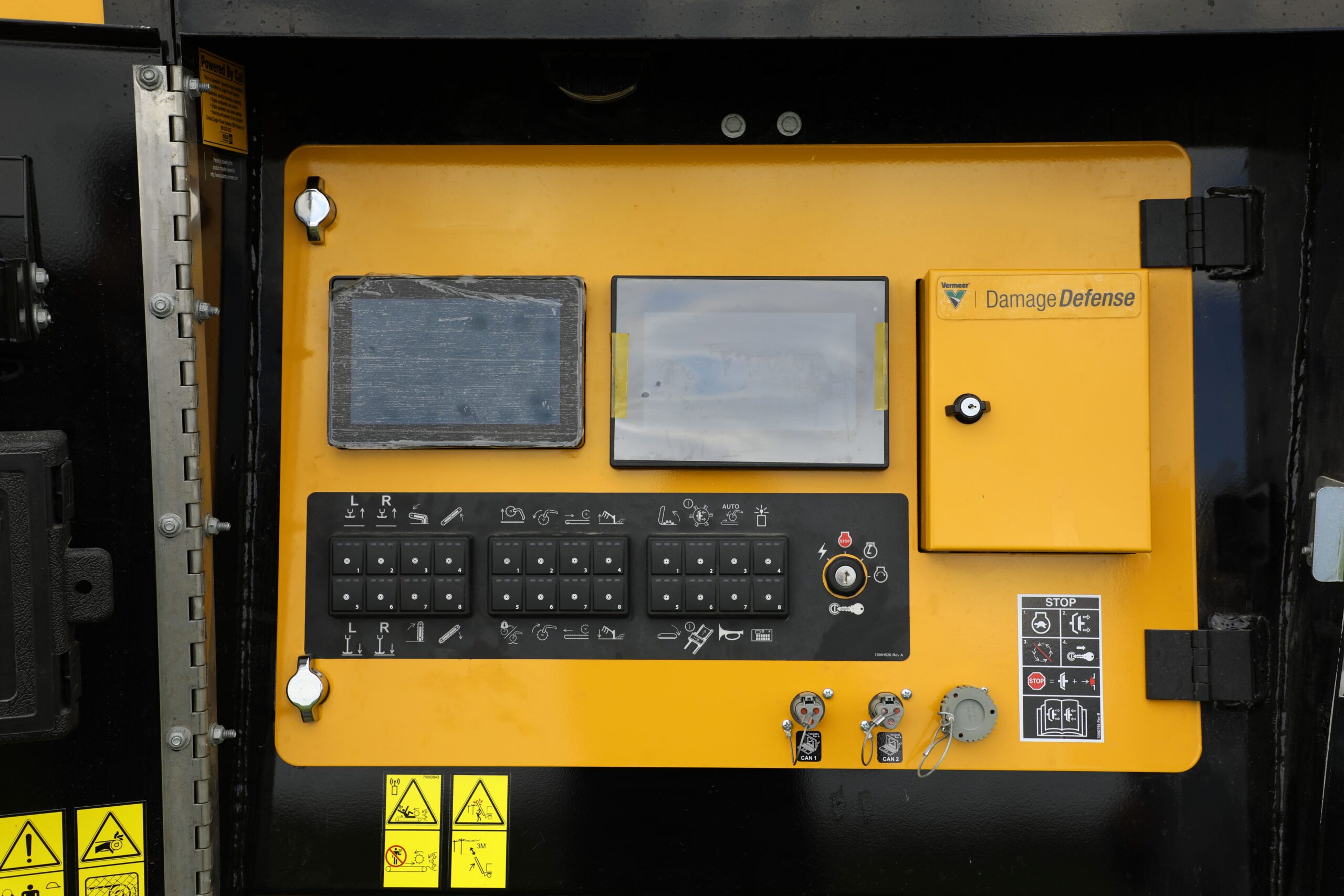

Switches Sealed membrane CAN bus keypad
Display Type LCD
Engine Information Yes
Machine Information Yes
Operational Faults Yes
Gauges No
Switches Sealed membrane
Operating Range 300 ft (91.4 m)
Battery Type AA (6)
Channel Setting 50 channels
Frame Description Unit body construction
Tongue Description Fabricated
Hitch Type 5th wheel, 5th wheel with creep drive, Pintle, Pintle with creep drive
Fender Description Formed steel, replaceable
Brake Type EBS
Trailer Light Type 12-24V LED
Suspension Type Spring
Manufacturer - Option One Hutchens Industrial, Inc.
Capacity per Axle 22400lbs (10160.5kg)
Number of axles (5th wheel) 2
Number of axles (Pintle) 3
Tires - Option One 385/65R22.5
Wheels - Option One Aluminum
Ground Clearance - Option One 17in (43.2cm)
Air Compressor Brand Mi-T-M
Engine Honda, 9 hp (6.7 kW)
Maximum Pressure 125psi (8.6bar)
Maximum Air Flow 17.2cfm (.5cmm)
Tank capacity (5th wheel) 21gal (79.5L)
Tank capacity (Pintle) 31.7gal (120L)
Screens Yes
Tips Yes
Special Tools Group Yes
Magnetic discharge conveyor pulley Yes
Extended Warranty Yes
Preventative Maintenance Optional
Special Paint Optional
Air Compressor Options via hitch selection
Vermeer Confidence Plus Asset Protection Program Optional
