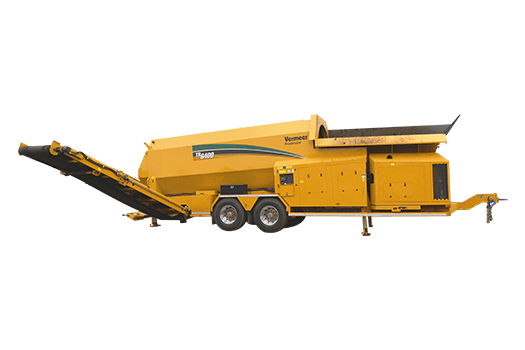

Trommel cribleur TR6400EU
- Une conception robuste et compacte
- Des tamis sous tension à changement rapide
- Un contrôle total pour une productivité maximale
Les trommels cribleurs Vermeer répondent aux besoins de criblage avec une approche orientée productivité et maintenance. La trémie basse facilite l’alimentation, et l’accès au tamis via panneaux latéraux amovibles accélère le nettoyage et les interventions.
Pour gagner en efficacité, vous limitez les bourrages grâce aux éléments réversibles et vous choisissez vos options de déchargement, dont un convoyeur radial (jusqu’à 200°). La tension du tamis améliore la rigidité et autorise des mailles plus fines. Contactez Vermeer France pour un devis.
General
| Manufacturer | Vermeer |
| Model | Trommel cribleur TR6400EU |
| Category | Recyclage |
| Price | Request a Quote |
| Year | 2024 |
General Dimensions and Weights
| Weight | 41900lbs (19005.5kg) |
| Hitch Weight | 2200lbs (997.9kg) |
| Transport Length | 40ft (12.2m) |
| Transport Width | 99in (251.5cm) |
| Transport Height | 13.2ft (4m) |
| Operation Length | 54.2ft (16.5m) |
| Operation Width | 295in (749.3cm) |
| Operation Height | 16.7ft (5.1m) |
| Capacity | Approximately 175 cu yd per hour (134 cu m per hour) with 0.5" (1.3 cm) screens installed and material with moisture less than 40% |
Engine - Option one
| Make and Model | Cat C3.6L Tier 4F (Stage V) |
| Number of Cylinders | 4 |
| Engine Rating | 99 hp |
| Fuel Tank Capacity | 50gal (189.3L) |
| Fuel Consumption | 3 gph (11.4 Lph) |
| Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) | 35deg |
| Battery | 950 CCA |
| Oil Filter | Spin-on |
| Recommended Oil | Mobil 15W40 |
| Oil Volume with Filter | 11.2qt (10.6L) |
| System Voltage | 12 V, 120 amp alternator |
| Air Cleaner | Dual element |
| Radiator Fan | Suction |
Hydraulic System
| Operation | 77.8 gpm @ 3000 psi (294.5 L/min @ 207 bar) |
| Tank capacity | 80gal (302.8L) |
Chassis
| Frame Description | Four independent hydraulic jacklegs |
| Axle/Suspension | Leaf spring |
| Tires - Option One | 385/65 R22.5 (J) |
Hopper and Apron Conveyor
| Hopper Capacity | 6.5cu yd (5cu m) |
| Hopper Bottom Width | 37.5in (95.3cm) |
| Apron Conveyor Speed | 0-15 ft/min |
| Apron Opening Height | 45in (114.3cm) |
| Apron Opening Width | 37.5in (95.3cm) |
| Hopper Height | 9.5' from ground level at operating incline |
| Hopper Opening | 11.7' x 5.3' |
| Apron Conveyor Length | 12.4ft (3.8m) |
| Apron Conveyor Belt Width | 42in (106.7cm) |
| Apron Conveyor Rollers | 5" CEMA "D" x 17 |
Screen Drum
| Drum Operation | 0-33.1 gpm (0-125.3 L/min) |
| Drum Motor | 35.5 cu in (630 cu cm) displacement |
| Drum Diameter | 6.5ft (2m) |
| Drum Support Description | 8 polyurethane trunnion wheels on pivoting bogeys 8" od x 4" wide |
| Drum Length | 19.7ft (6m) |
| Thrust Bearing Diameter | 4in (10.2cm) |
| Thrust Bearing Face | 2in (5.1cm) |
| Drum Speed | 0-25 rpm |
| Drum Drive Chain | 140 extended pin/extended width |
| Drum Angle Adjustability | 0-5 degrees |
| Maximum Screen Panels | 8 |
Screen Brushes
| Brush Diameter | 14in (35.6cm) |
| Bristle Material | Polyethylene |
| Brush Assembly Support | Two 1.25" sealed ball bearings/brush |
Collecting Conveyor
| Conveyor Motor Displacement | 16.7cu-in (273.7cu-cm) |
| Fines Conveyor Length | 16ft (4.9m) |
| Maximum Fines Belt Speed | 360ft/min (109.7m/min) |
| Conveyor Belt Width | 36in (91.4cm) |
| Conveyor Belt Type | 220 lb (99.8 kg), 2 ply, 2/16" x 1/16" (4.8 mm x 1.6 mm) |
| Head/Tail Pulley Type | 8" crowned |
| Head Pulley Bearing | 1 3/4" double roller |
| Rubber Flashing | Adjustable corded rubber |
| Idler Type | 4" CEMA "B" straight |
| Tail Pulley Takeup | 6in (15.2cm) |
| Self-Cleaning Return Idlers | 4" rubber disk x 3 |
| Fines Conveyor Frame | Part of trailer frame |
Fines Conveyor
| Conveyor Motor Displacement | 14.2cu-in (232.7cu-cm) |
| Fines Conveyor Length | 23.5ft (7.2m) |
| Maximum Fines Belt Speed | 400ft/min (121.9m/min) |
| Conveyor Belt Width | 36in (91.4cm) |
| Conveyor Belt Type | 220 lb (99.8 kg), 2 ply, 2/16" x 1/16" (4.8 mm x 1.6 mm) smooth |
| Conveyor Belt Stacking Height | 10.5 ft (3.2m) (conveyor @ 25 degrees) |
| Head Pulley Type | 8" crowned |
| Head Pulley Bearing | 1.5" pillow block |
| Troughing Idler Type | 20 degrees CEMA "B" with permanently sealed bearings spaced at 40" centers |
| Self-Cleaning Tail Pulley Dimensions | 8" diameter, 38" wide, crowned wing pulley, 1.75" shaft |
| Head Pulley Takeup | 8in (20.3cm) |
| Self-Cleaning Return Idlers | 2, 4" diameter, 1, 5" diameter, "rattle roller" |
| Fines Conveyor Frame | Engineered structural frame |
Overs Conveyor - Option 1
| Overs Conveyor Length | 19.2ft (5.9m) |
| Maximum Variable Overs Belt Speed | 360ft/min (109.7m/min) |
| Conveyor Belt Size | 42 in (106.7 cm) |
| Conveyor Belt Type | 220 lb (99.8 kg), 2 ply, 2/16" x 1/16" (4.8 mm x 1.6 mm) cleated |
| Conveyor Belt Stacking Height | 9' (2.74 m) (conveyor @ 25 degrees) |
| Head Pulley Type | 8" crowned |
| Head Pulley Bearing | 1.5" pillowed block |
| Self-Cleaning Tail Pulley Dimensions | 8" diameter, 44" wide, crowned wing pulley, 1.75" shaft |
| Head Pulley Takeup | 8in (20.3cm) |
| Self-Cleaning Return Idlers | 2, 4" diameter; 1, 5" diameter, "rattle roller" |
| Overs Conveyor Frame | Engineered structural frame |
| Troughing Idler Type | 20 degrees CEMA "B" with permanently sealed bearings spaced at 32" centers |
