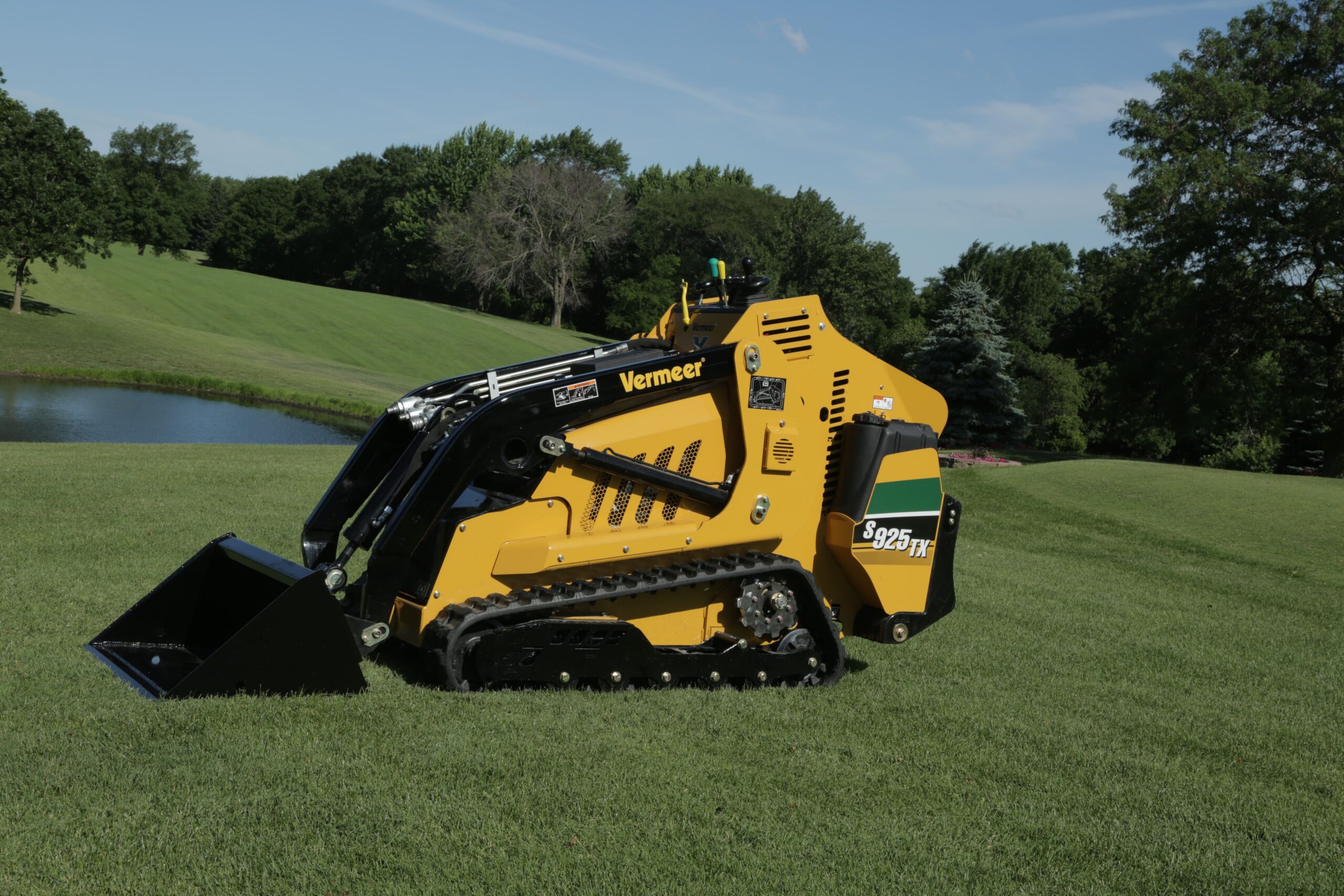

S925TX Mini-chargeuse

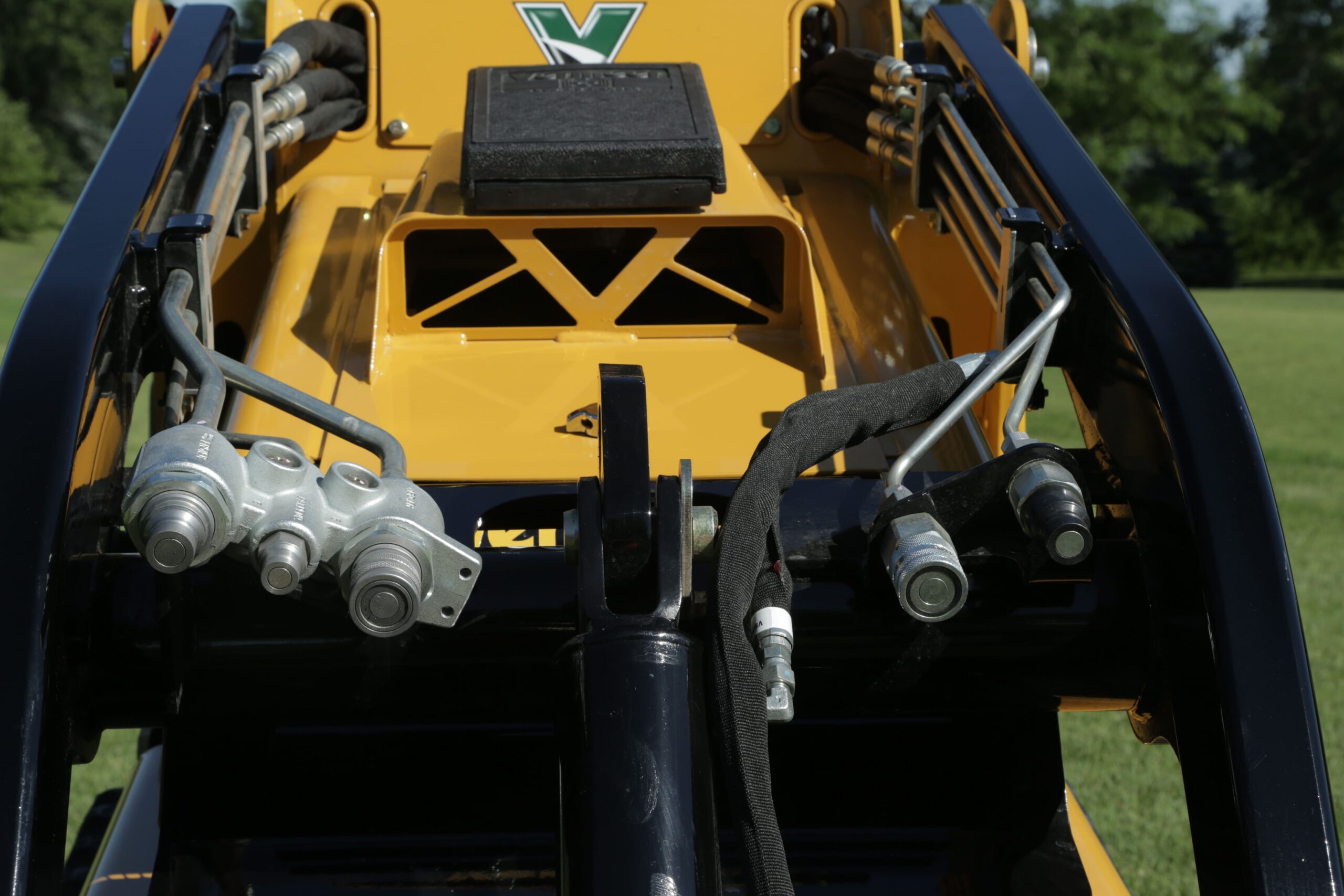

À la recherche de puissance, de polyvalence et de fiabilité ? Ne cherchez pas davantage. Sur les traces de ses prédécesseurs, la mini-chargeuse S925TX de Vermeer a la robustesse qui convient aux travaux les plus difficiles. Dotée d'une capacité de levage impressionnante et offrant le confort d’un poste de commande de type chariot, cette machine est conçue pour votre productivité et votre confort. Le circuit hydraulique auxiliaire double standard fonctionne en tandem avec la plaque de montage universelle pour assurer un maximum de polyvalence sur le site de travail.

General

Manufacturer Vermeer
Model S925TX Mini-chargeuse
Category Entretien des arbres, Installation de réseaux souterrains, Paysage
Price Request a Quote
Year 2024

General Dimensions and Weights

Ground Clearance 6in (15.2cm)
Width Without Standard Bucket 36in (91.4cm)
Length with Standard Bucket 106in (269.2cm)
Length without Standard Bucket 84in (213.4cm)
Weight (Standard Bucket, Diesel Engine) 3465lbs (1571.7kg)
Height 58in (147.3cm)
Weight (No Bucket, Diesel Engine) 3350lbs (1519.5kg)
Height (to Hinge Pin) 84.5in (214.6cm)
Width with Standard Bucket 42in (106.7cm)
Design Stand-on/Track drive
Rated Operating Capacity (SAE) 925lbs (419.6kg)
Ground Pressure (Narrow Tracks) 5psi (34.5kPa)
Ground Pressure (Wide Tracks) 4psi (27.6kPa)
Fuel Type Diesel
Make and Model Kubota V1505 (available in LRC only)
Gross Horsepower 35hp (26.1kw)
Fuel Tank Capacity 13gal (49.2L)
Cooling System Liquid
Maximum Angle of Inclination 30deg
Travel Speed 4.5mph (7.2km/h)
Make and Model Kubota V1505
Fuel Tank Capacity 13gal (49.2L)
Gross Horsepower 24.8hp (18.5kw)
Fuel Type Diesel
Cooling System Liquid
Maximum Angle of Inclination 30deg
Travel Speed 4.1mph (6.6km/h)

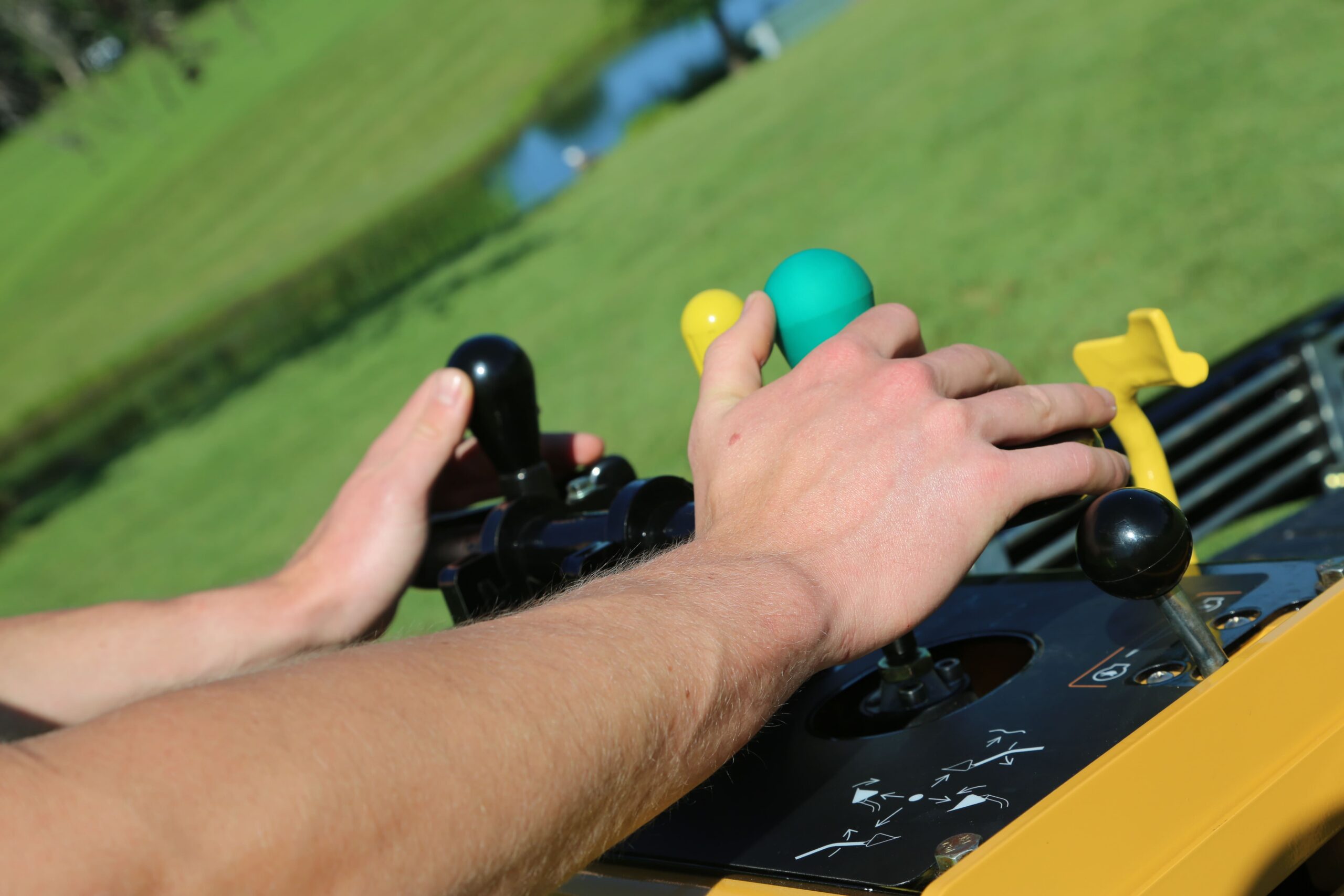

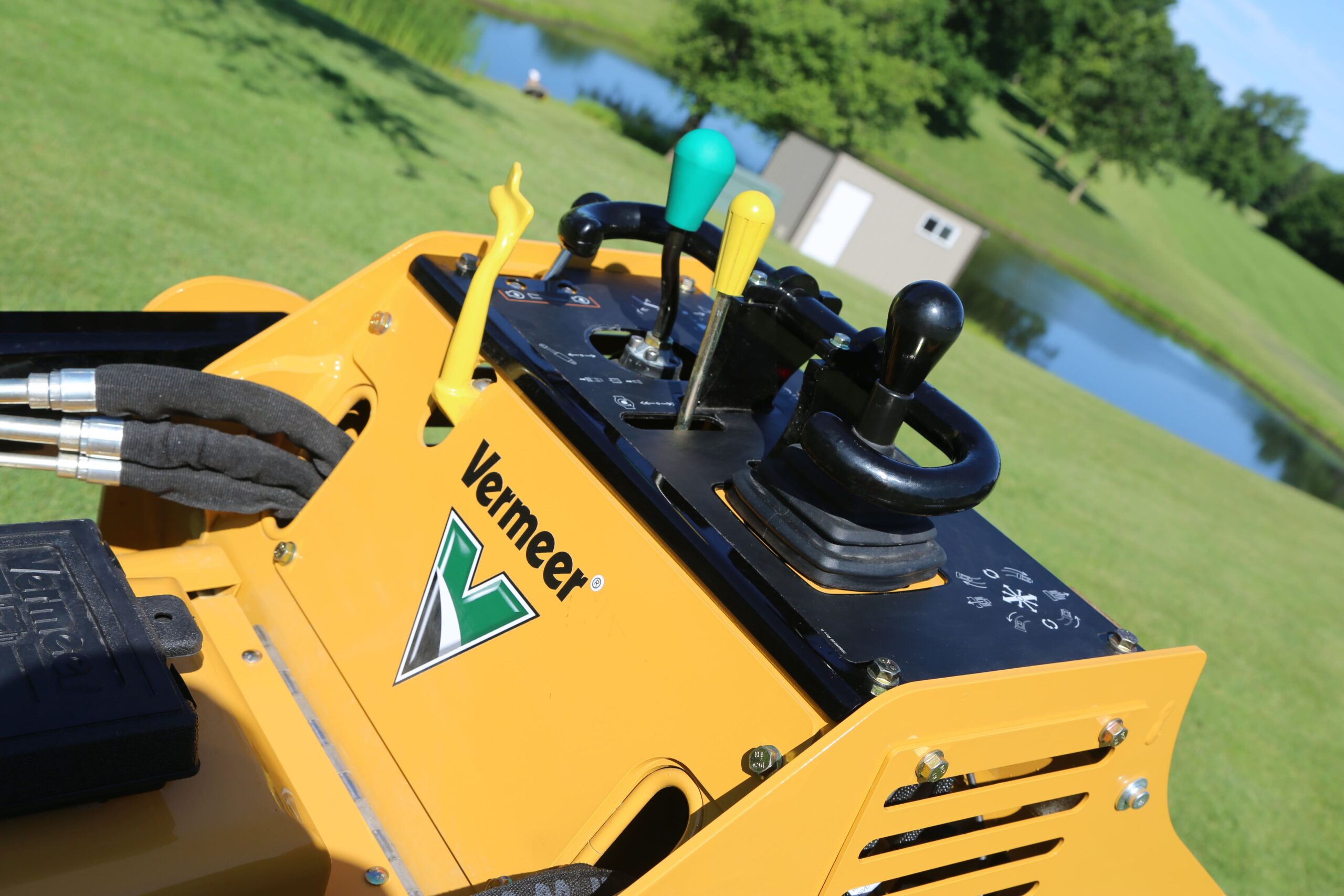

Curl Dual Axis, common bucket lever
Steering Dual Axis, pilot operated joystick
Lift Dual Axis, common bucket lever
Hydraulic System Pressure 3045psi (209.9bar)
Tank capacity 10.5gal (39.7L)
Hydraulic System Flow 12gpm (45.4L/min)
Make and Model Kubota V1505
Fuel Type Gas
Fuel Tank Capacity 13gal (49.2L)
Gross Horsepower (Maximum) 40hp (29.8kw)
Cooling System Liquid
Maximum Angle of Inclination 30deg
Travel Speed 4.5mph (7.2km/h)
