| Manufacturer | Vermeer |
| Model | Foreuse directionnelle horizontale D40x55DR S3 |
| Category | Canalisations, Installation de réseaux souterrains |
| Price | Request a Quote |
| Year | 2024 |
| Length (Minimum Transport) | 264in (670.6cm) |
| Width (Minimum Transport) | 89in (226.1cm) |
| Height (Minimum Transport) | 110in (279.4cm) |
| Weight | 32000lbs (14515kg) |
| Angle of Approach | 23deg |

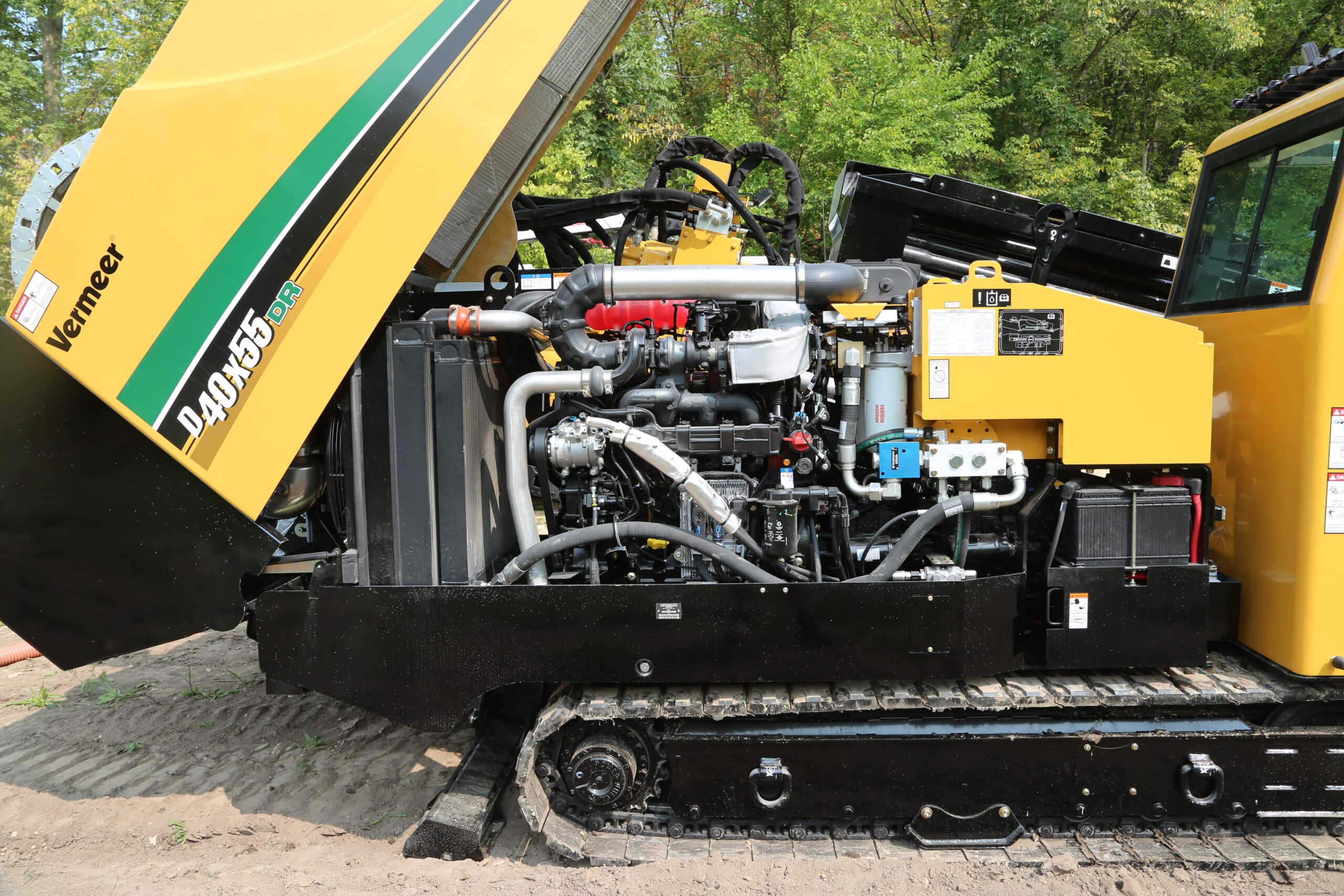

| Make and Model | John Deere PowerTech 4045HF275 |
| Fuel Type | Diesel |
| Maximum Engine RPM | 2400rpm |
| Gross Horsepower | 140hp (104.4kw) |
| Aspiration | Turbocharged |
| Max Fuel Consumption | 7.6gph (28.6lph) |
| Emissions rating | Tier 4 Final (EU Stage V) |
| Maximum Operating Angle (Fore/Aft)* | 30 continuous/45 intermittent |
| Maximum Operating Angle (Left/Right)* | 30 continuous/45 intermittent |
| Make and Model | John Deere |
| Fuel Type | Diesel |
| Maximum Engine RPM | 2400rpm |
| Gross Horsepower | 140hp (104.4kw) |
| Aspiration | Turbocharged |
| Max Fuel Consumption | 7.6gph (28.6lph) |
| Emissions rating | Tier 3 (EU Stage IV) |
| Maximum Operating Angle (Left/Right)* | 30deg |
| Maximum Operating Angle (Fore/Aft)* | 30deg |
| Make and Model | John Deere 4045HI550 |
| Fuel Type | Diesel |
| Maximum Engine RPM | 2400rpm |
| Gross Horsepower | 140hp (104.4kw) |
| Displacement | 275cu-in (4.5L) |
| Aspiration | Turbocharged |
| Noise Level at Operator's Ear | 80 dB(A) |
| Emissions rating | Tier 4 Final (EU Stage V) |
| Thrust | 40000lbs (177.9kN) |
| Pullback | 40000lbs (177.9kN) |
| Maximum Carriage Speed at Maximum Engine RPM | 115ft/min (35.1m/min) |
| Maximum Spindle Torque (Low at Maximum Engine RPM) | 5500ft-lb (7457Nm) |
| Maximum Spindle Speed at Max Engine RPM | 100rpm |
| Minimum Bore Diameter | 6.3in (15.9cm) |
| Maximum Ground Drive Speed at Maximum Engine RPM | 3.3mph (5.3km/h) |
| Noise Level at Operator's Ear | 80 dB |
| Guaranteed sound power (CE-rating) | 105 dB |
| Drill Rack Angle | 15.6deg |
| Fuel Tank | 45gal (170.3L) |
| Hydraulic System | 65gal (246.1L) |
| Maximum Flow | 70gpm (265L/min) |
| Maximum Pressure | 900psi (62.1bar) |
| Breakout System | Sliding, open top vise |
| Drilling Lights | Standard |
| Flow Indicator | Mud Flow indicator can function like the current D24s3 |
| Stakedown System | Standard/Aggressive |

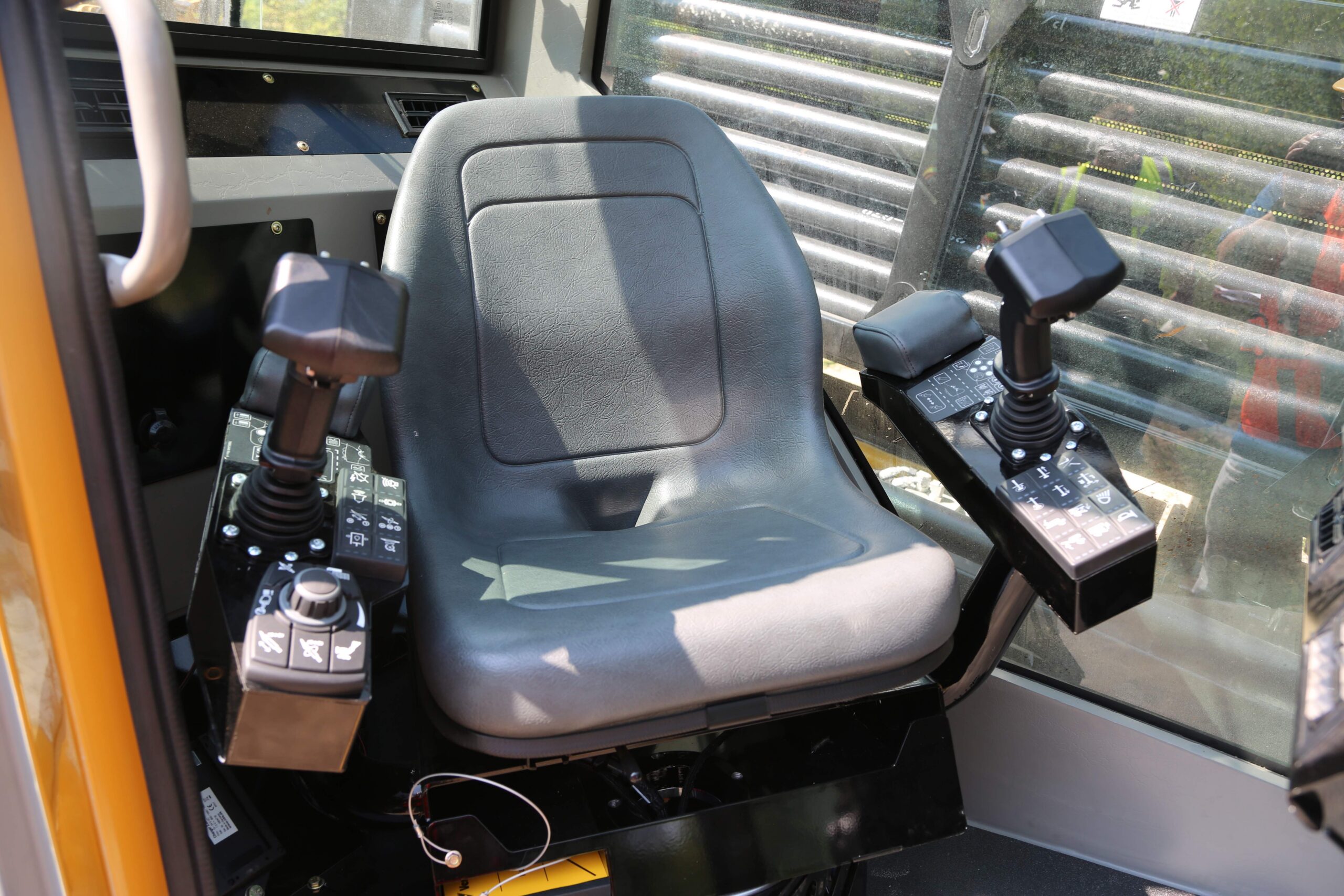

| Cab | Standard |
| Strike Alert | Standard |
| Remote Lockout | Standard |
| Drill Rod Thread | Firestick - #200 R & R |
| Thread Type | Firestick - #750 R & R |
| Length | 10ft (3m) |
| Joint Inside Diameter | .8in (1.9cm) |
| Weight | 126lbs (57.2kg) |
| Minimum Bend Radius | 169ft (51.5m) |
