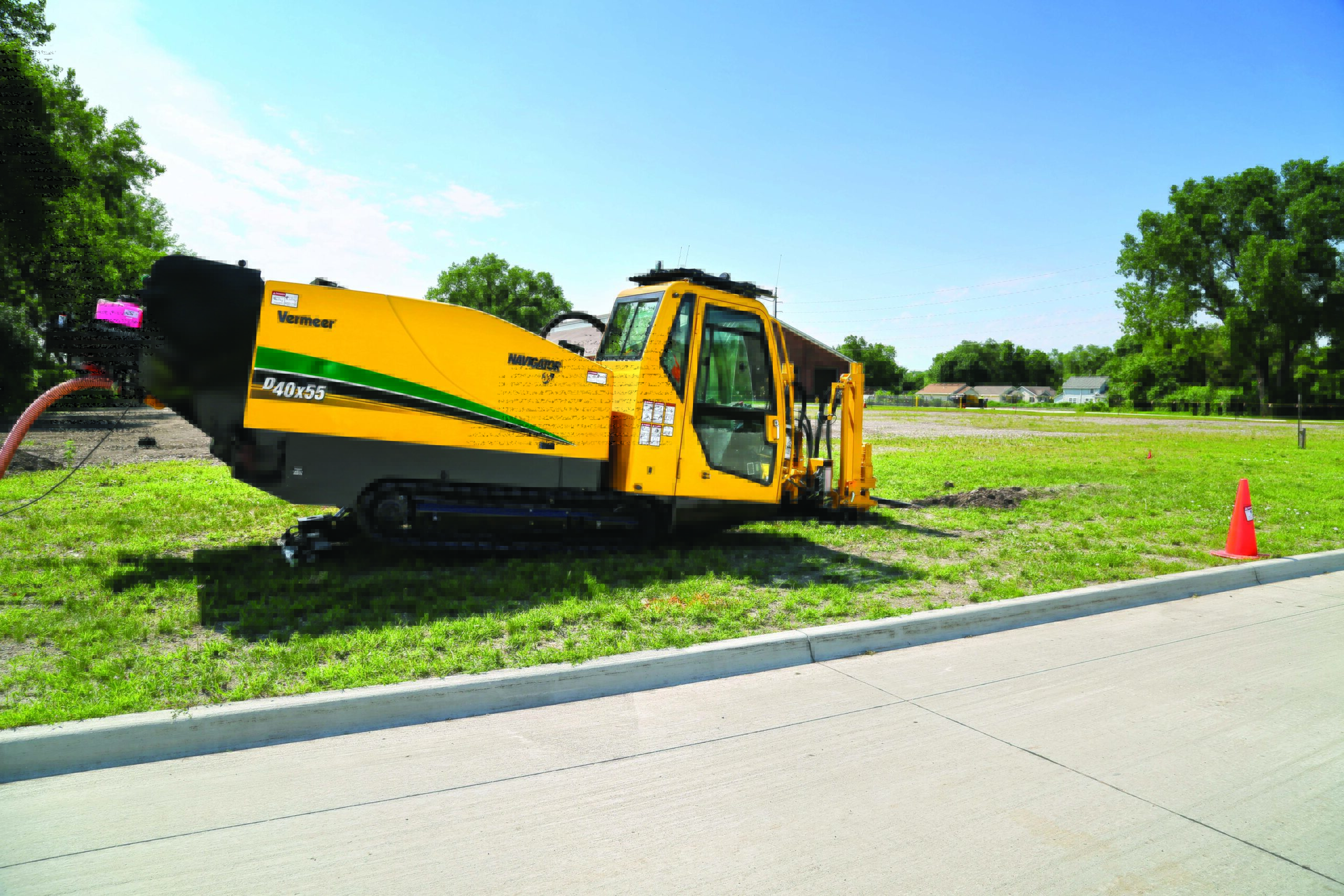

Foreuse directionnelle horizontale D40x55 S3

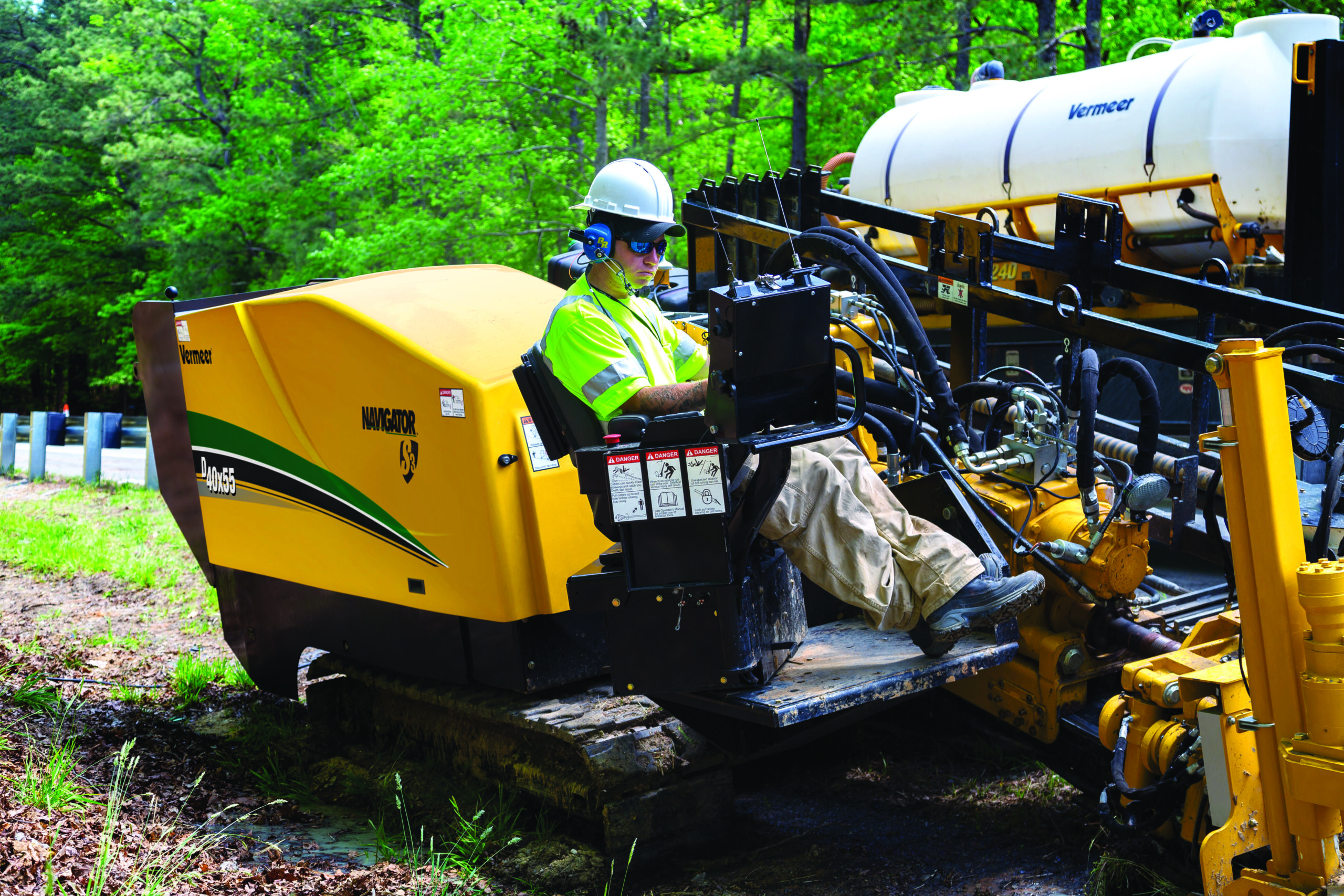

La foreuse directionnelle horizontale D40x55 S3 Navigator® est polyvalente et offre d'excellentes performances, des durées de cycle inégalées et de nombreuses options de tiges de forage, ce qui en fait une foreuse très adaptée à un grand nombre d'applications – de la mise en place de longs câbles de fibre optique à celle de petits tuyaux.

Avec 178 kN de poussée/tirage et 7457 Nm de couple rotationnel, ce qui représente une augmentation de 10 % par rapport au modèle précédent (la foreuse directionnelle horizontale D36x50 série II Navigator®), la D40x55 S3 permet de développer au maximum la productivité de vos chantiers.

General

Manufacturer Vermeer
Model Foreuse directionnelle horizontale D40x55 S3
Category Canalisations, Installation de réseaux souterrains
Price Request a Quote
Year 2024

Engine

Make and Model John Deere 4045
Gross Horsepower 140hp (104.4kw)
Maximum Operating Angle (Left/Right)* 25/25
Maximum Operating Angle (Fore/Aft)* 30
Maximum Engine RPM 2400rpm
Fuel Type Ultra low sulfur diesel
Max Fuel Consumption 7.4gph (28lph)
Aspiration Turbo
Width (Minimum Transport) 89in (226.1cm)
Width (With Cab, Minimum Transport) 89in (226.1cm)
Height (Minimum Transport) 76in (193cm)
Height (With Cab) 94.5in (240cm)
Weight 22380lbs (10151.4kg)
Weight (Cab Option) 27080lbs (12283.3kg)
Length (Minimum Transport) - 10 ft (3 m) 241in (612.1cm)
Length (Minimum Transport) - 15 ft (4.6 m) 290in (736.6cm)
Angle of Approach - 10 ft (3 m) 18deg
Angle of Approach - 15 ft (4.6 m) 15deg
Noise Level at Operator's Ear 83 dB(A)
Maximum Carriage Speed in Low at Maximum Engine RPM 75ft/min (22.9m/min)
Automated Rod Loader Yes
Maximum Carriage Speed at Maximum Engine RPM 188ft/min (57.3m/min)
Maximum Ground Drive Speed at Maximum Engine RPM 3.3mph (5.3km/h)
Minimum Bore Diameter 4in (10.2cm)
Maximum Spindle Speed at Max Engine RPM 227rpm
Maximum Spindle Torque (High at Maximum Engine RPM) 3000ft-lb (4067.5Nm)
Maximum Spindle Torque (Medium at Maximum Engine RPM) 4400ft-lb (5965.6Nm)
Maximum Spindle Torque (Low at Maximum Engine RPM) 5500ft-lb (7457Nm)
Guaranteed sound power (CE-rating) 105 dB(A)
Thrust 40000lbs (177.9kN)
Pullback 40000lbs (177.9kN)
Fuel Tank 44gal (166.6L)
Hydraulic Tank 55gal (208.2L)
Hydraulic System 65gal (246.1L)
Maximum Pressure 1050psi (72.4bar)
Maximum Flow 50gpm (189.3L/min)
Brand Aplex
On Board Tank Capacity 6gal (22.7L)
Strike Alert Standard

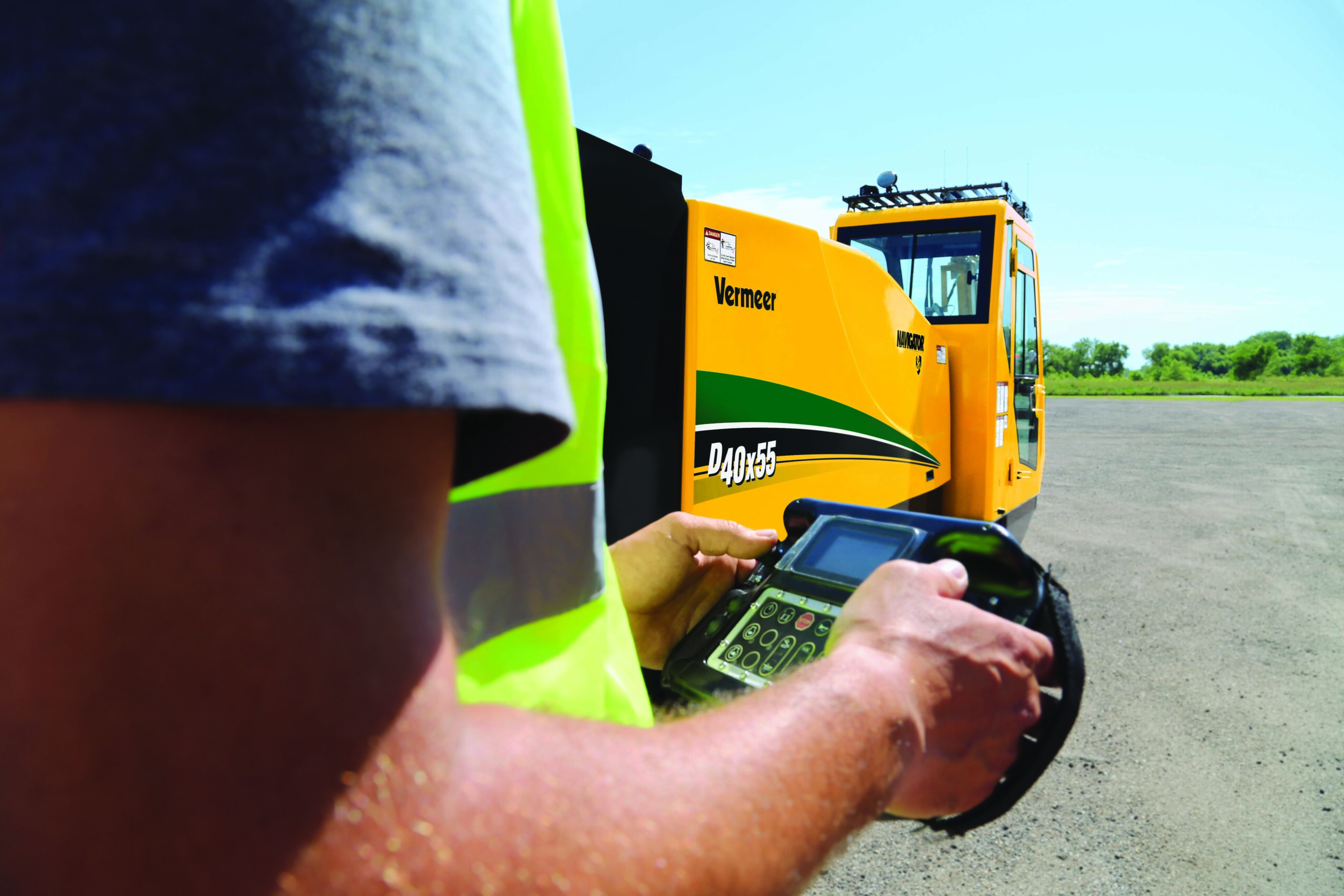

Remote Lockout Standard
Cab Optional
Flow Indicator Standard
Drilling Lights Standard
Breakout System Standard hydraulic vise
Stakedown System Standard
Rotation Pump Relief Pressure 6000psi (413.7bar)
Rotation Pump Flow at Maximum Engine RPM 45gpm (170.3L/min)
Thrust/Pullback Pump Flow at Max Engine RPM 32gpm (121.1L/min)
Auxiliary Pump Relief Pressure 3000psi (206.8bar)
Auxiliary Pump Flow at Maximum Engine RPM 9gpm
Hydraulic Supply Filter Rating 9 micron
Hydraulic Return Filter Rating Dual 5 micron filters
Maximum Flow 70gpm (265L/min)
Maximum Pressure 1100psi (75.8bar)
Brand Aplex
On Board Tank Capacity 6gal (22.7L)
Make and Model John Deere 4045
Fuel Type Diesel
Maximum Engine RPM 2400rpm
Gross Horsepower 140hp (104.4kw)
Aspiration Turbo
Max Fuel Consumption 7.4gph (28lph)
Maximum Operating Angle (Left/Right)* 30deg
