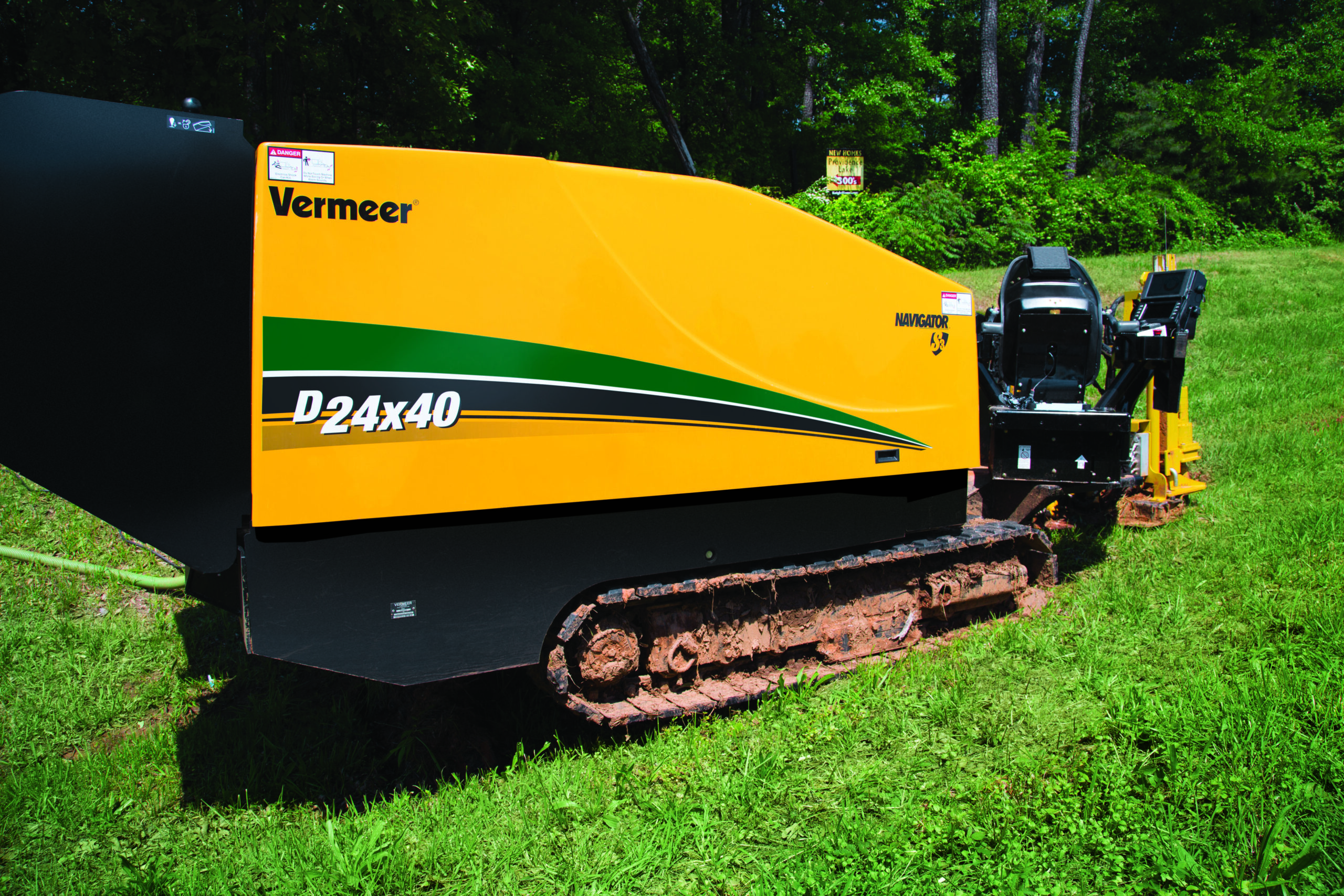

Foreuse directionnelle horizontale D24x40 S3
- À la pointe du secteur depuis 1993
- Une taille et une puissance idéales pour les entrepreneurs
- Une productivité optimisée pour la machine et le chantier
Les foreuses directionnelles Vermeer accompagnent les professionnels des réseaux dans leurs chantiers de pose sans tranchée. Conçues pour la performance et la fiabilité, elles facilitent l’installation de conduites et de câbles (eau, gaz, électricité, fibre), même dans des conditions complexes.
La gamme de foreuses directionnelles horizontales s’adapte aux contraintes du terrain : espaces restreints, sols durs ou hétérogènes, exigences de précision. Contactez Vermeer France pour choisir le modèle adapté et faire une demande de devis.
General
| Manufacturer | Vermeer |
| Model | Foreuse directionnelle horizontale D24x40 S3 |
| Category | Travaux de canalisations et réseaux |
| Price | Request a Quote |
| Year | 2024 |
General Dimensions and Weights
| Length (Minimum Transport) | 241in (612.1cm) |
| Width (Minimum Transport) | 89in (226.1cm) |
| Width (With Cab, Minimum Transport) | 89in (226.1cm) |
| Height (Minimum Transport) | 76in (193cm) |
| Height (With Cab) | 102in (259.1cm) |
| Weight | 21750lbs (9865.6kg) |
| Weight (Cab Option) | 22250lbs (10092.4kg) |
| Angle of Approach | 19deg |
Engine
| Make and Model | John Deere 4045 |
| Fuel Type | Ultra low sulfur diesel |
| Maximum Engine RPM | 2400rpm |
| Gross Horsepower | 125hp (93.2kw) |
| Aspiration | Turbo |
| Max Fuel Consumption | 6.8gph (25.7lph) |
| Emissions rating | Tier 4 Final (EU Stage V) |
| Maximum Operating Angle (Fore/Aft)* | 30 |
| Maximum Operating Angle (Left/Right)* | 25/25 |
Engine - Option two
| Make and Model | John Deere 4045 |
| Fuel Type | Diesel |
| Maximum Engine RPM | 2400rpm |
| Gross Horsepower | 125hp (93.2kw) |
| Aspiration | Turbo |
| Max Fuel Consumption | 6.8gph (25.7lph) |
| Emissions rating | Tier 3/Stage IIIA |
| Maximum Operating Angle (Left/Right)* | 30deg |
Operational
| Thrust | 28000lbs (124.6kN) |
| Pullback | 28000lbs (124.6kN) |
| Maximum Carriage Speed at Maximum Engine RPM | 240ft/min (73.2m/min) |
| Maximum Carriage Speed in Low at Maximum Engine RPM | 101ft/min (30.8m/min) |
| Maximum Spindle Torque (Low at Maximum Engine RPM) | 4200ft-lb (5694.4Nm) |
| Maximum Spindle Torque (Medium at Maximum Engine RPM) | 3500ft-lb (4745.4Nm) |
| Maximum Spindle Torque (High at Maximum Engine RPM) | 2000ft-lb (2711.6Nm) |
| Maximum Spindle Speed at Max Engine RPM | 270rpm |
| Minimum Bore Diameter | 4in (10.2cm) |
| Maximum Ground Drive Speed at Maximum Engine RPM | 3.3mph (5.3km/h) |
| Automated Rod Loader | Yes |
| Noise Level at Operator's Ear | 83 dB(A) |
| Guaranteed sound power (CE-rating) | 105 dB(A) |
Fluid Capacities
| Fuel Tank | 44gal (166.6L) |
| Hydraulic Tank | 55gal (208.2L) |
| Hydraulic System | 65gal (246.1L) |
Hydraulic System
| Auxiliary Pump Flow at Maximum Engine RPM | 9gpm |
| Auxiliary Pump Relief Pressure | 3000psi (206.8bar) |
| Thrust/Pullback Pump Flow at Max Engine RPM | 32gpm (121.1L/min) |
| Thrust/Pullback Pump Relief Pressure | 5500psi (379.2bar) |
| Rotation Pump Flow at Maximum Engine RPM | 45gpm (170.3L/min) |
| Rotation Pump Relief Pressure | 6000psi (413.7bar) |
| Hydraulic Supply Filter Rating | 9 micron |
| Hydraulic Return Filter Rating | Dual 5 micron filters |
Drilling Fluid System Option One
| Maximum Flow | 50gpm (189.3L/min) |
| Maximum Pressure | 1050psi (72.4bar) |
| Brand | Aplex |
| On Board Tank Capacity | 6gal (22.7L) |
Features
| Breakout System | Standard hydraulic vise |
| Drilling Lights | Standard |
| Flow Indicator | Standard |
| Stakedown System | Standard |

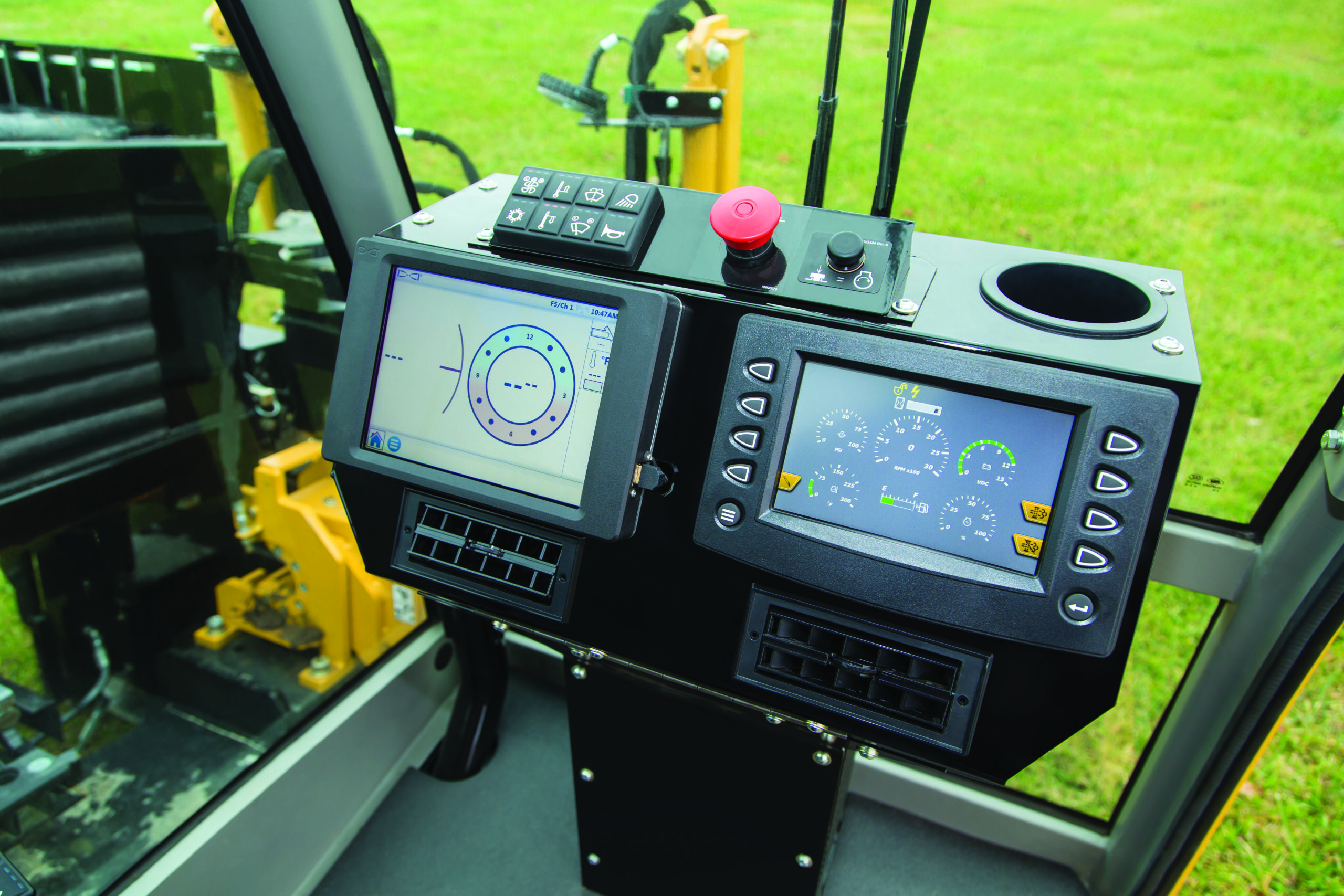

| Cab | Optional |
| Strike Alert | Standard |

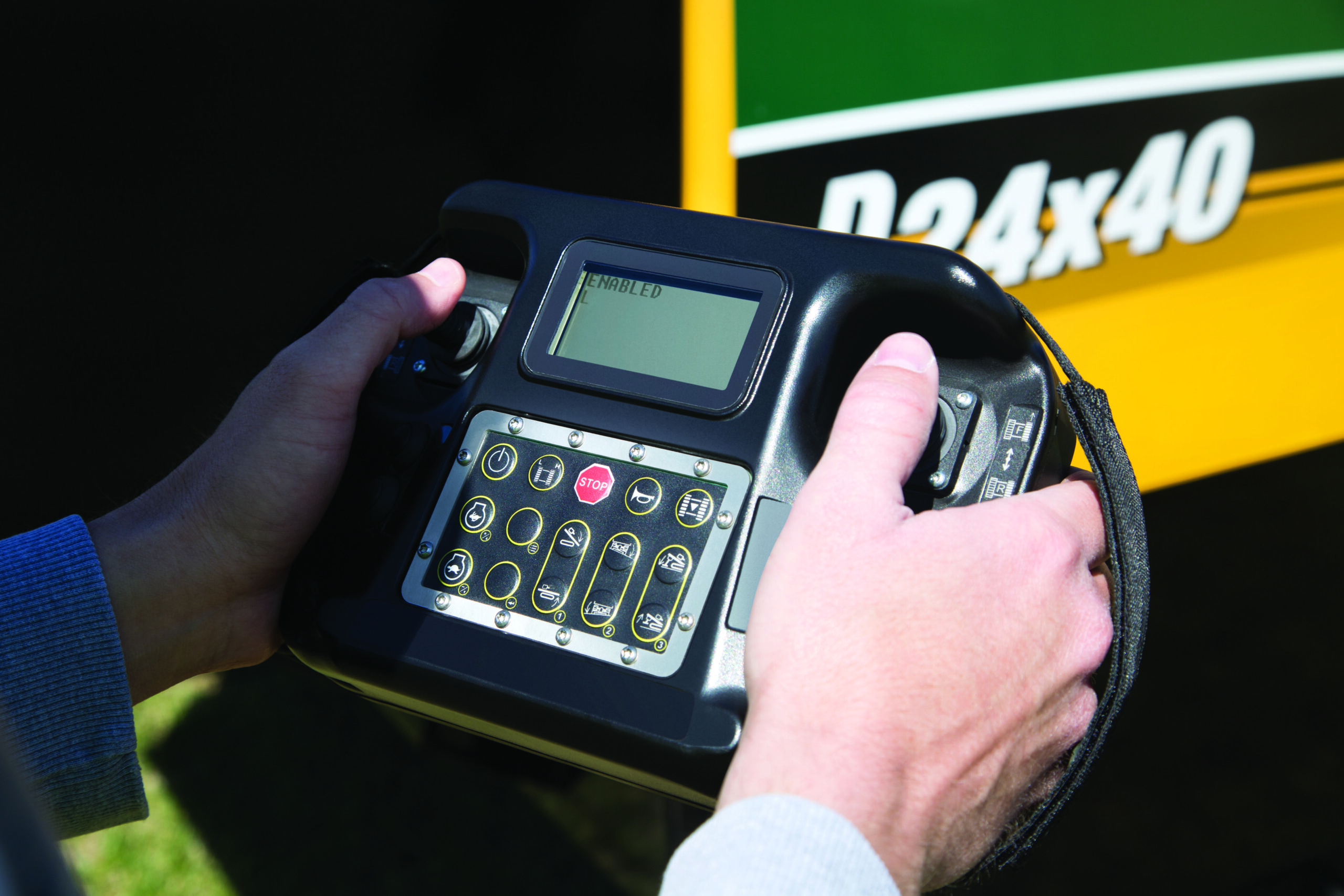

| Remote Lockout | Standard |
