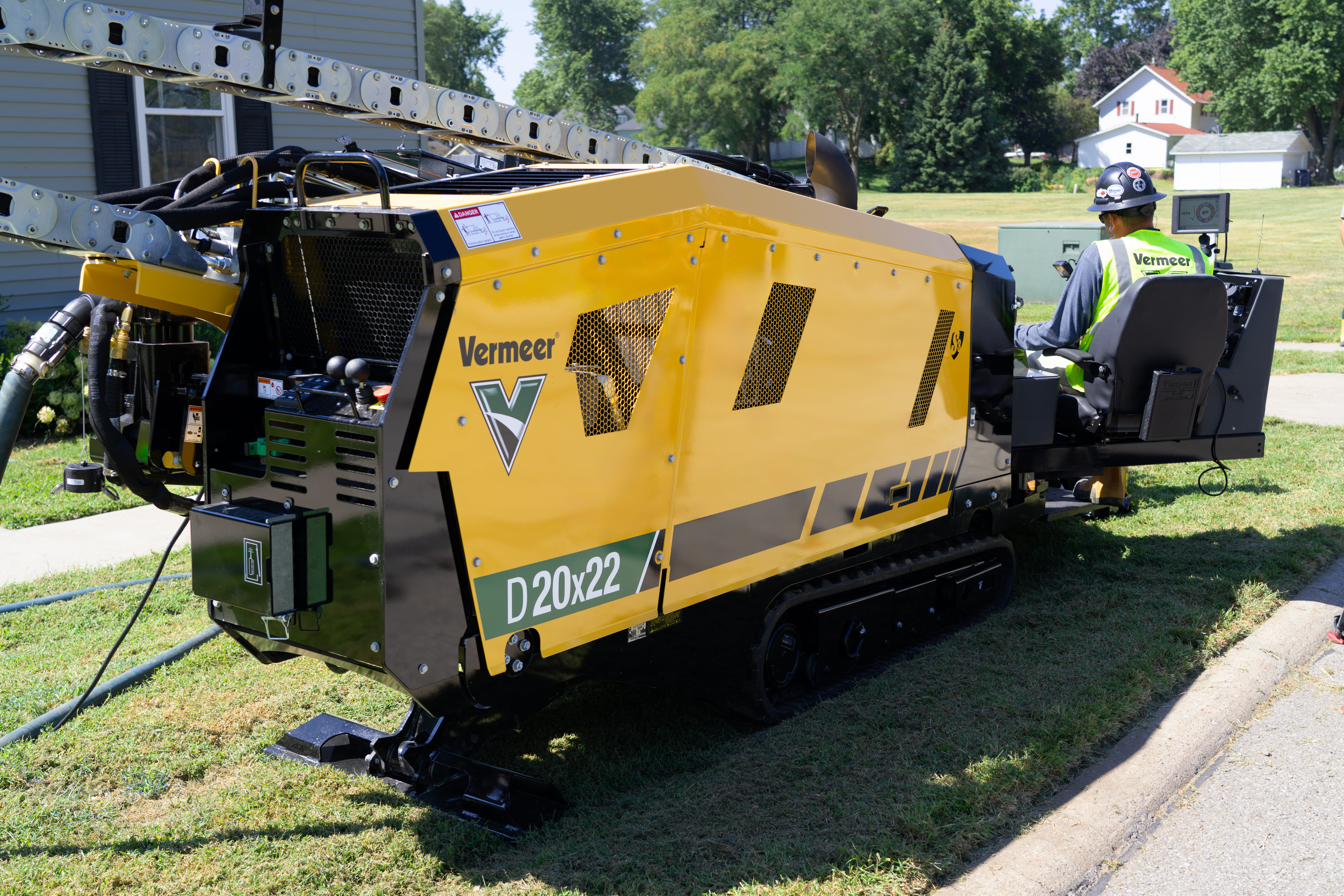

Foreuse directionnelle horizontale D20x22 S3
- Puissance, vitesse, polyvalence et précision de la commande

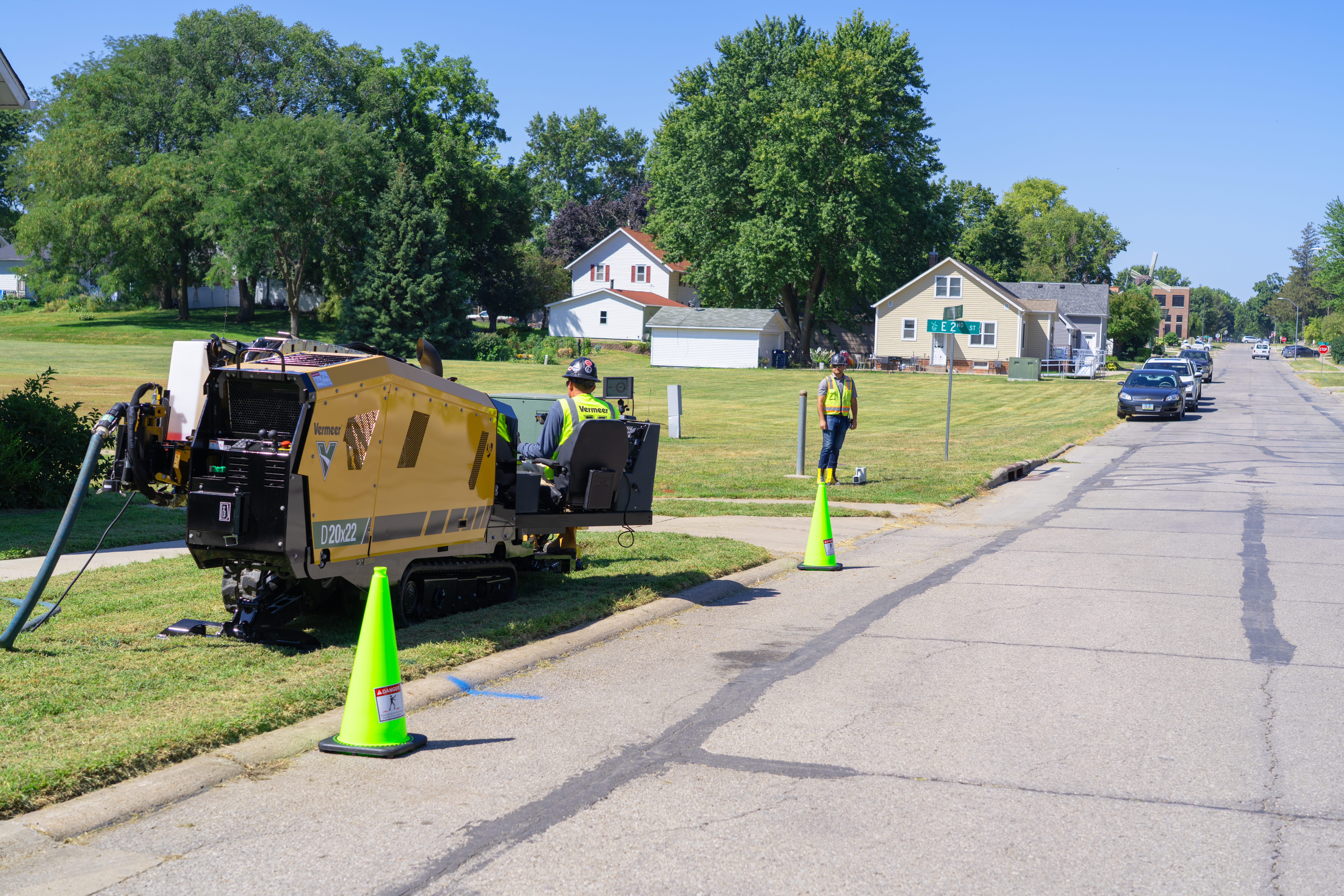

- La meilleure option pour travailler dans les zones urbaines encombrées
- Une augmentation de la puissance de 12 % par rapport au modèle précédent
General
| Manufacturer | Vermeer |
| Model | Foreuse directionnelle horizontale D20x22 S3 |
| Category | Canalisations, Installation de réseaux souterrains |
| Price | Request a Quote |
| Year | 2024 |
General Dimensions and Weights
| Length (Minimum Transport) | 229in (581.7cm) |
| Width (Minimum Transport) | 47.5in (120.7cm) |
| Height (Minimum Transport) | 74in (188cm) |
| Weight | 12808lbs (5809.6kg) |
| Angle of Approach | 18deg |

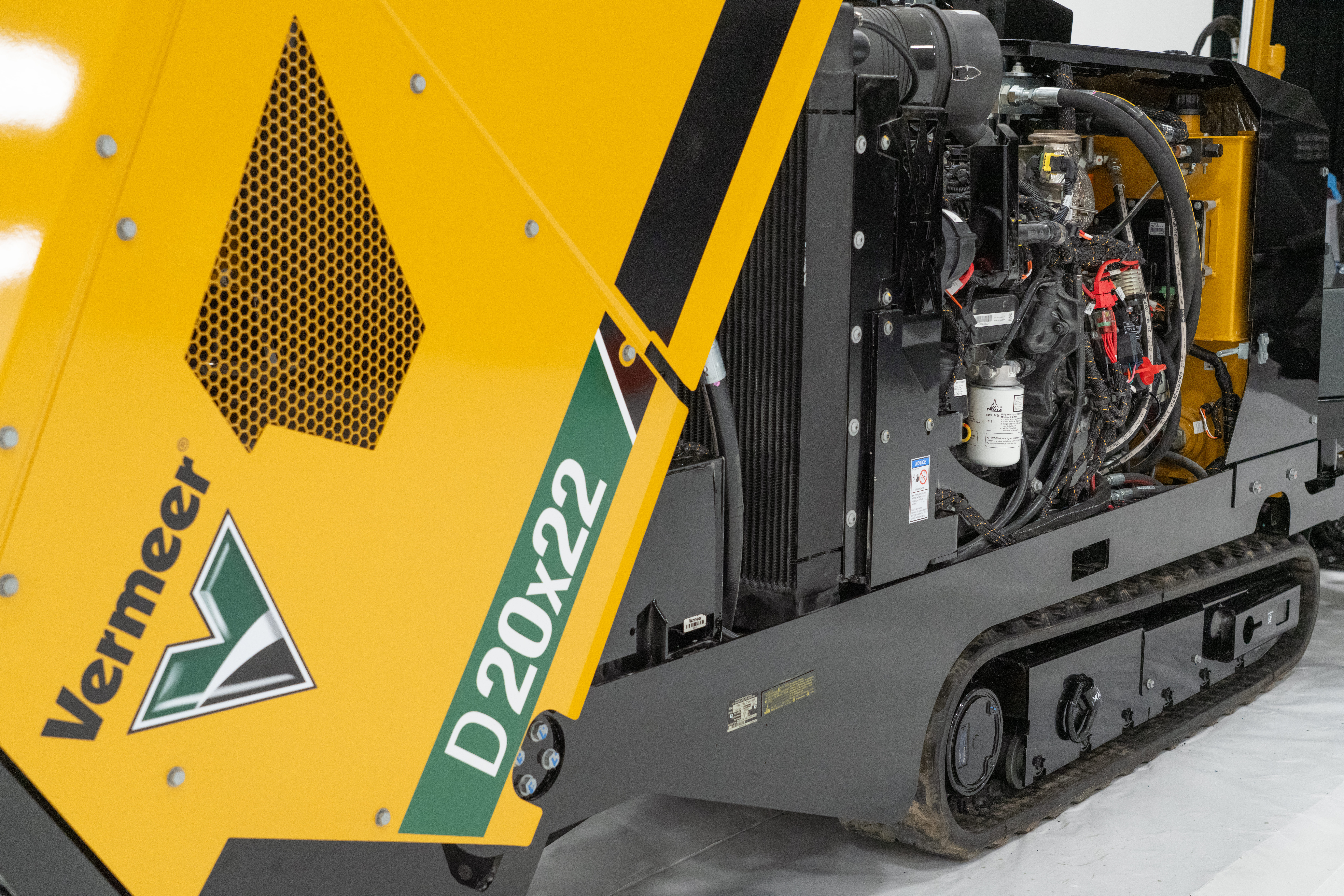

Engine
| Make and Model | Deutz TD2.9 |
| Fuel Type | Low sulfur diesel |
| Maximum Engine RPM | 2600rpm |
| Gross Horsepower | 74hp (55.2kw) |
| Displacement | 177cu-in (2.9L) |
| Aspiration | Turbocharged |
| Cooling Method | Liquid |
| Noise Level at Operator's Ear | 86.5 dB(A) |
| Emissions rating | Tier 4i (EU Stage IIIA) |
Engine - Option two
| Make and Model | Deutz TD2.9 |
| Fuel Type | Ultra-low sulfur diesel |
| Maximum Engine RPM | 2600rpm |
| Gross Horsepower | 74hp (55.2kw) |
| Displacement | 177cu-in (2.9L) |
| Aspiration | Turbocharged |
| Cooling Method | Liquid |
| Noise Level at Operator's Ear | 91 dB(A) |
| Emissions rating | Tier 4 Final (EU Stage V) |
Operational
| Thrust | 19500lbs (86.7kN) |
| Pullback | 19500lbs (86.7kN) |
| Maximum Carriage Speed at Maximum Engine RPM | 160ft/min (48.8m/min) |
| Maximum Carriage Speed in Low at Maximum Engine RPM | 114ft/min (34.7m/min) |
| Maximum Spindle Torque (Low at Maximum Engine RPM) | 2250ft-lb (3050.6Nm) |
| Maximum Spindle Speed at Max Engine RPM | 257rpm |
| Minimum Bore Diameter | 3in (7.6cm) |
| Maximum Ground Drive Speed at Maximum Engine RPM | 3.3mph (5.3km/h) |
| Automated Rod Loader | Semi-automated |
| Guaranteed sound power (CE-rating) | 107 dB(A) |
| Drill Rack Angle | 17deg |
Drilling Fluid System Option One
| Maximum Flow | 25gpm (94.6L/min) |
| Maximum Pressure | 750psi (51.7bar) |
Features
| Breakout System | Standard hydraulic vice |
| Drilling Lights | Standard |
| Flow Indicator | Standard |
| Stakedown System | Standard |
| Strike Alert | Standard |
| Remote Lockout | Standard |
| Operator Presence | Standard |
