Dessoucheuse SC552
- Des dimensions de coupe impressionnantes
- Puissance et efficacité au niveau de la souche
- Des fonctionnalités standard pour les professionnels du broyage de souches
Les rogneuses de souches Vermeer sont pensées pour les chantiers exigeants : puissance, maniabilité et fiabilité au quotidien. Avec une plage de 18,6 à 85,8 kW, vous choisissez le modèle adapté à votre volume de travail et au type de souche.
Le système SmartSweep™ améliore l’efficacité sur chantier. L’entretien reste simple et rapide, et la durée de vie des dents augmente. Certains modèles sur chenilles réduisent la pression au sol pour limiter les dégâts sur le gazon. Contactez Vermeer France pour un devis.
General
| Manufacturer | Vermeer |
| Model | Dessoucheuse SC552 |
| Category | Aménagement paysager & entretien des arbres |
| Price | Request a Quote |
| Year | 2024 |
General Dimensions and Weights
| Length | 147in (373.4cm) |
| Width | 35in (88.9cm) |
| Height | 76.5in (194.3cm) |
| Weight - Engine Option One | 4000lbs (1814.4kg) |
| Width with Dual Wheel Option (Additional) | 56in (142.2cm) |

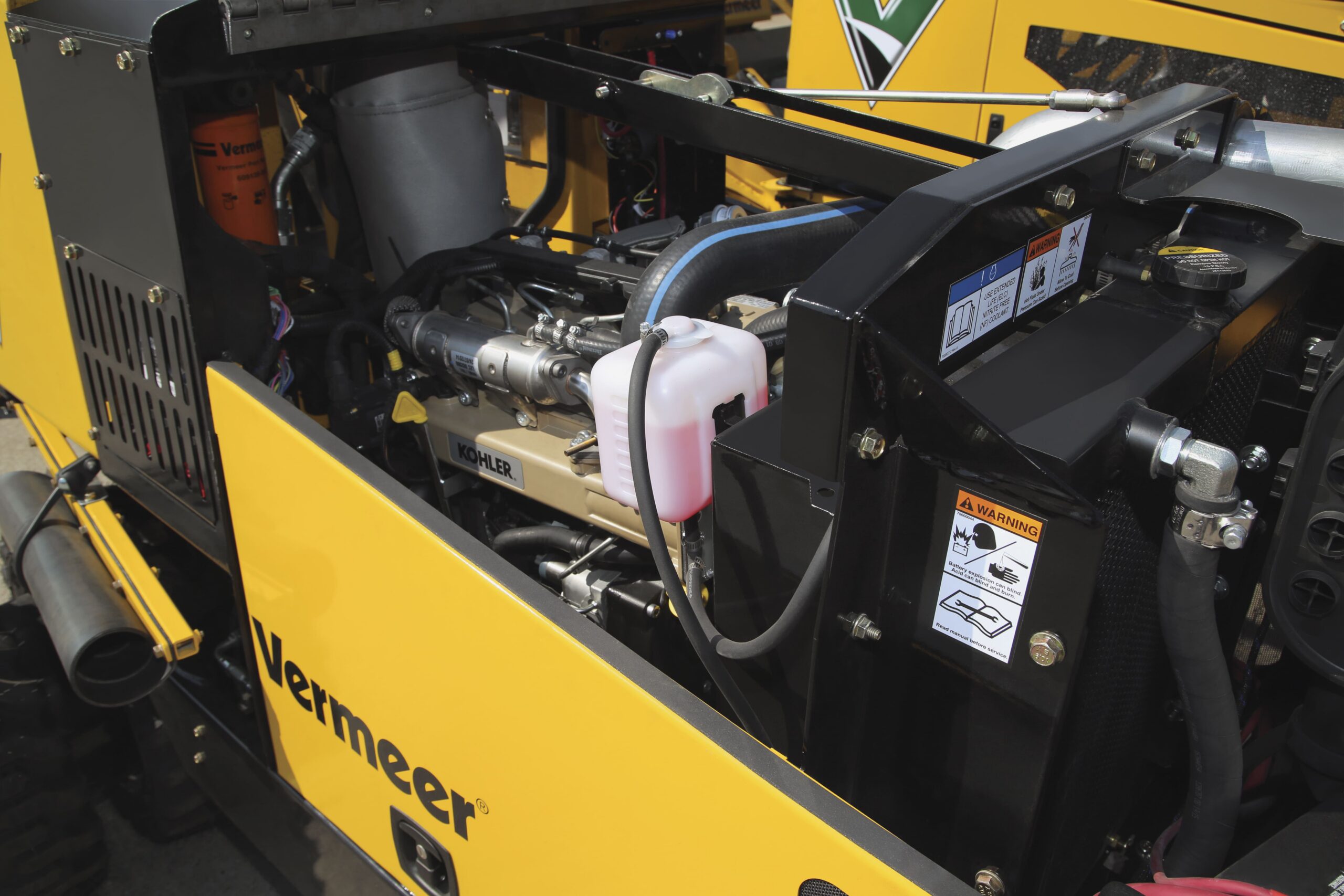

Engine - Option one
| Make and Model | Kohler KDI 1903 |
| Number of Cylinders | 3 |
| Gross Horsepower (Maximum) | 56hp (41.8kw) |
| Torque (Max) | 165ft-lb (223.7Nm) |
| Fuel Tank Capacity | 14.5gal (54.9L) |
| Max Fuel Consumption | 2.4gph (9.2lph) |
| Fuel Type | Diesel |
| Air Cleaner | Dry type safety element and restriction indicator |
| Oil Filter | Cartridge Style |
| Recommended Oil | SAE 10W30 Low SAPS - ACEA E6-E9 |
| Oil Volume with Filter | 9.4qt (8.9L) |
| Maximum Angle of Continuous Operation | 30deg |
| Cooling Medium | Liquid |
| Coolant Capacity (Engine and Radiator) | 1.7gal (6.2L) |
| Alternator | 100 amp |
| Fan | Suction |
| Clutch Type | Hydrostatic Transmission |
Cutterwheel System
| Cutterwheel Diameter | 23in (58.4cm) |
| Cutterwheel Thickness | 1.1in (2.9cm) |
| Cutterwheel Speed | 1124rpm |
| Cutterwheel Straight Line Dimension | 72in (182.9cm) |
| Cutterwheel Cut Above Ground | 31in (78.7cm) |
| Cutterwheel Cut Below Ground | 25in (63.5cm) |
| Tooth Description | Yellow Jacket Cutting System |
| Number of Teeth | 26 |
| Number of Indexes | 2 per tooth |
| Number of Pockets | 26 |
| Reversible Pockets/Teeth | Yes- standard |
| Cutterwheel Guard | Standard |
| Chip Containment | 28.2cu ft (.8cu m) |
Cutterwheel Drive Components
| Lower Gearbox | 90 degree |
| Oil Type - Lower Gearbox | Syn 75W90 |
| Oil Capacity - Lower Gearbox | 1.6qt (1.5L) |
| Driveshaft | Standard |
| Driveshaft - U Joints | 2 standard with double lip seals |
Hydraulic System
| Tank capacity | 17gal (64.4L) |
| Recommended Oil Type | Vermeer HyPower 68 |
| System Type | 2 closed loops and 1 open |
| Filtration Method | Suction strainers, one charge pump filter and one 3 micron return filter |
| Directional Control | Electric over hydraulic |
| Oil Cooler | Standard |
Electrical System
| System Voltage | 12 Volt |
| Battery | 950 CCA |
| Deluxe Gauges | DP05 Display - Fuel,Hour Meter, Selectible |
| Warning Lights | Low oil pressure, high engine temperature, alternator/charging, wait to start glow plug indicator, high and low hydraulic temp, ACS controller function lights- various functions shown on controller |
| Switches | Two-speed ground drive, blade, steering, differential propel lock, SmartSweep settings, cutterwheel engage/disengage, creep, propel system joystick and boom controls joystick |
| Controller | Vermeer ACS |
| Shutdown System | High coolant temperature, low oil pressure and high hydraulic oil temperature |
| Radio Remote Control | Functions include: propel forward/reverse; boom up/down, boom left/right, steering left/right, blade up/down, SmartSweep settings, travel speed high/low, differential lock, throttle |
Chassis
| Frame Description | Welded tube and plate steel |
| Control Station Description | Swing out control station with three available positions plus auxiliary control station |
| Operator Vision Shield Description | Abrasion resistant coated polycarbonate, 3/16" thick |
| Toolbox Description | Standard |
| Steerable Axle Type | Two wheels, hydraulic |
| Degree of Oscillation | 15deg |
| Turning Radius | 105deg |
| Axle/Suspension | Steerable axle type |
| Tires - Standard | Rear:Duals, 23x8.5-14 |
| Wheels - Standard | Rear: 14" x 6" (35.56 cm x 15.24 cm) |
| Brake Type | Spring applied, hydraulic release at planetary drives and hydrostatic braking (closed loop) |
Option One
| Chip Blade Dimension | Standard - 34 inches wide, 13.75 inches tall |
| Blade Travel Above Ground | 14in (35.6cm) |
| Bumper | .75" (1.9 cm) plate |
Remote Control Option
| Radio Remote Control | Optional |
| Remote Functions | Engine stop, throttle, cutter wheel engage, swing, raise/lower, propel, creep, smartsweep |
| Remote Display | LED |
| Remote Range | 300' |
Other Options
| Special Paint | Optional |
| Extended Warranty | 2 years/ 2000 hours or 3 years/3000 hours |
| Preventive Maintenance | Optional |
Operator Presence System
| Description | Capacitive Handles - Swing/Raise & Lower |
| Sensor Type | Capacitive Handles |
| Quantity/Location | 2 - Swing Out Station |
| Visual Interface | Indicator Light/Display |
