Vermeer Equipment Dessoucheuses Dessoucheuse SC48TX

Dessoucheuse SC48TX

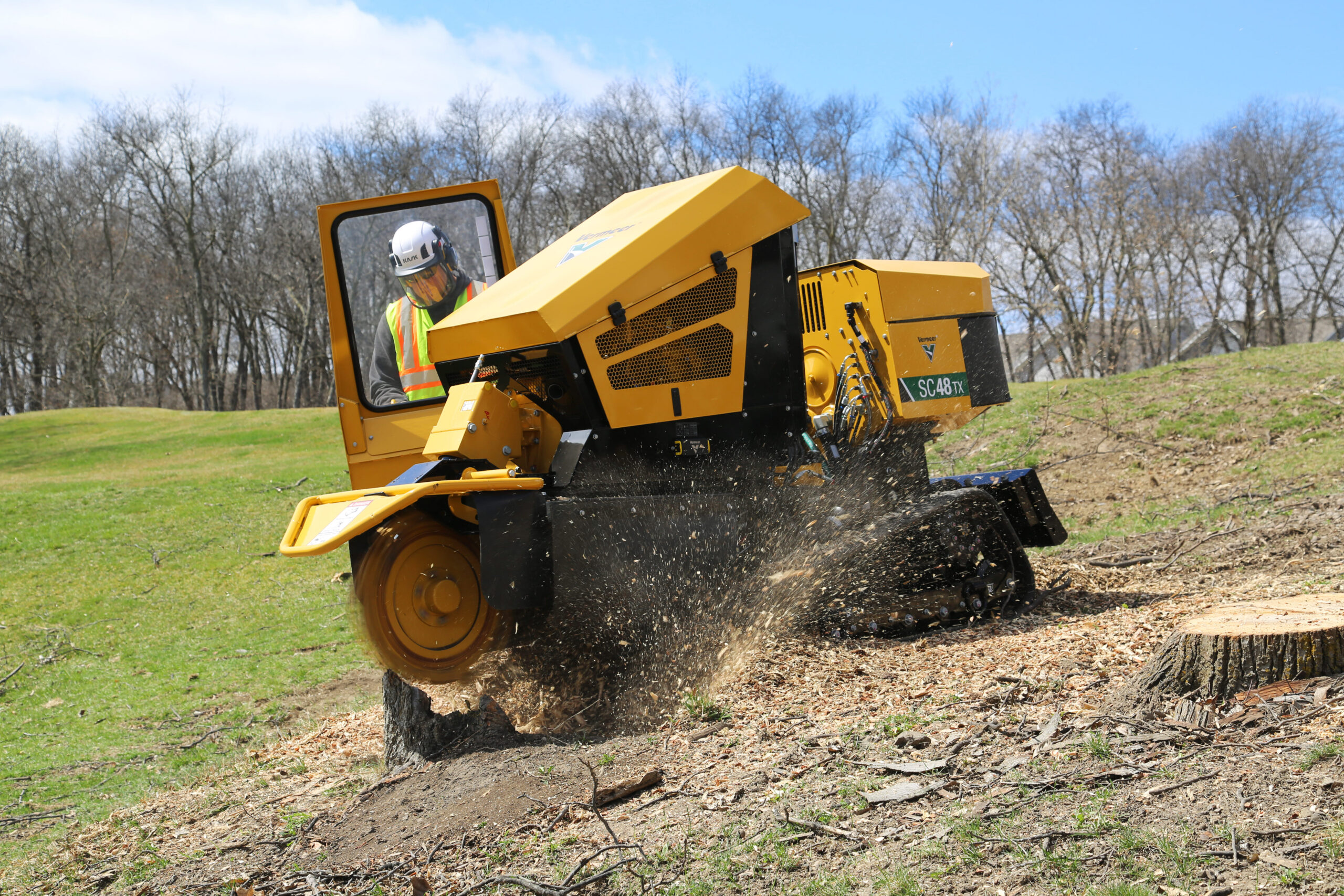

La dessoucheuse Vermeer SC48TX garantit une efficacité élevée de la roue dessoucheuse grâce à un moteur diesel 48 cv doté d'un système à entraînement direct. Cette machine permet aux opérateurs d'accéder à des chantiers étroits et difficiles grâce à un encombrement réduit et à une faible pression au sol pour effectuer divers types de travaux. De plus, les opérateurs peuvent ajouter des fonctionnalités telles que la commande à distance et la lame de remblai pour augmenter la productivité.

Base Image
Base Image
Demander un Devis Télécharger la brochure vermeer icon

General

Manufacturer Vermeer
Model Dessoucheuse SC48TX
Category Entretien des arbres, Paysage
Price Request a Quote
Year 2024

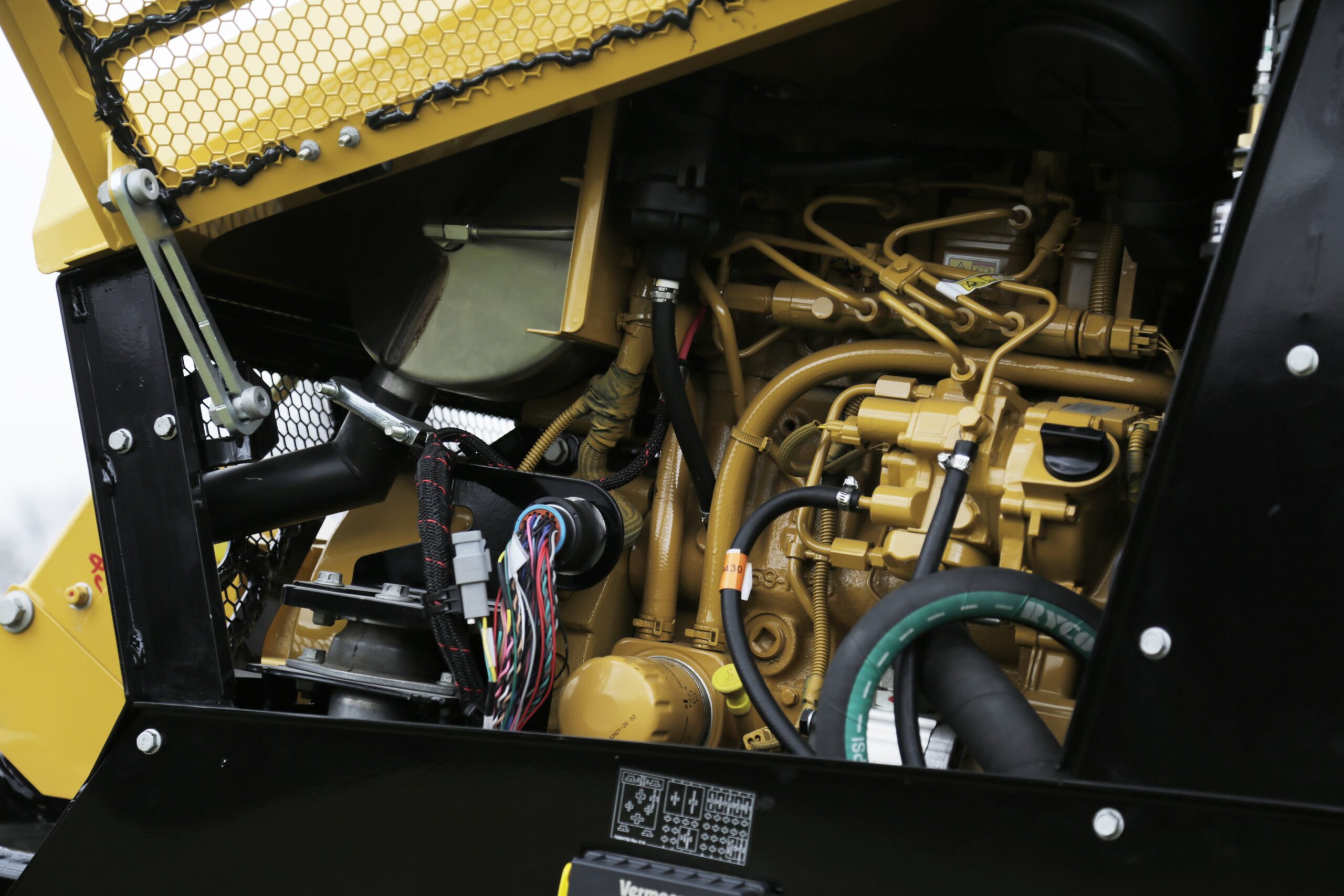

Engine - Option one

Oil Volume with Filter 5.3qt (5L)
Oil Filter Spin-on
Make and Model CAT C1.7 T4F/Stage V
Maximum Angle of Continuous Operation 35deg
Fan 16.5 in
Coolant Capacity (Engine and Radiator) 2.9gal (11L)
Clutch Type Electric clutch with brake
Gross Horsepower (Maximum) 48hp (35.8kw)
Cooling Medium Water/antifreeze
Max Fuel Consumption 2.9gph (11lph)
Fuel Tank Capacity 14.5gal (54.9L)
Torque (Max) 123ft-lb (166.8Nm)
Alternator 85A
Recommended Oil 10W-30
Air Cleaner Dry-type, restriction indicator, evacuator valve and safety element
Number of Cylinders 3
Fuel Type Ultra-low sulfur diesel
Filtration Method Full-flow 4-micron return filter, suction strainer
Recommended Oil Type Vermeer highpower 68
Pump Flow at Maximum RPM 11gpm (41.6L/min)
System Type Tandem gear pump, pressure balanced
Oil Cooler Yes
Directional Control Yes
Tank capacity 9gal (34.1L)
System relief pressure 2900psi (199.9bar)
Frame Description Welded tube and plate steel
Brake Type Spring-applied and hydraulically-released dual parking brakes

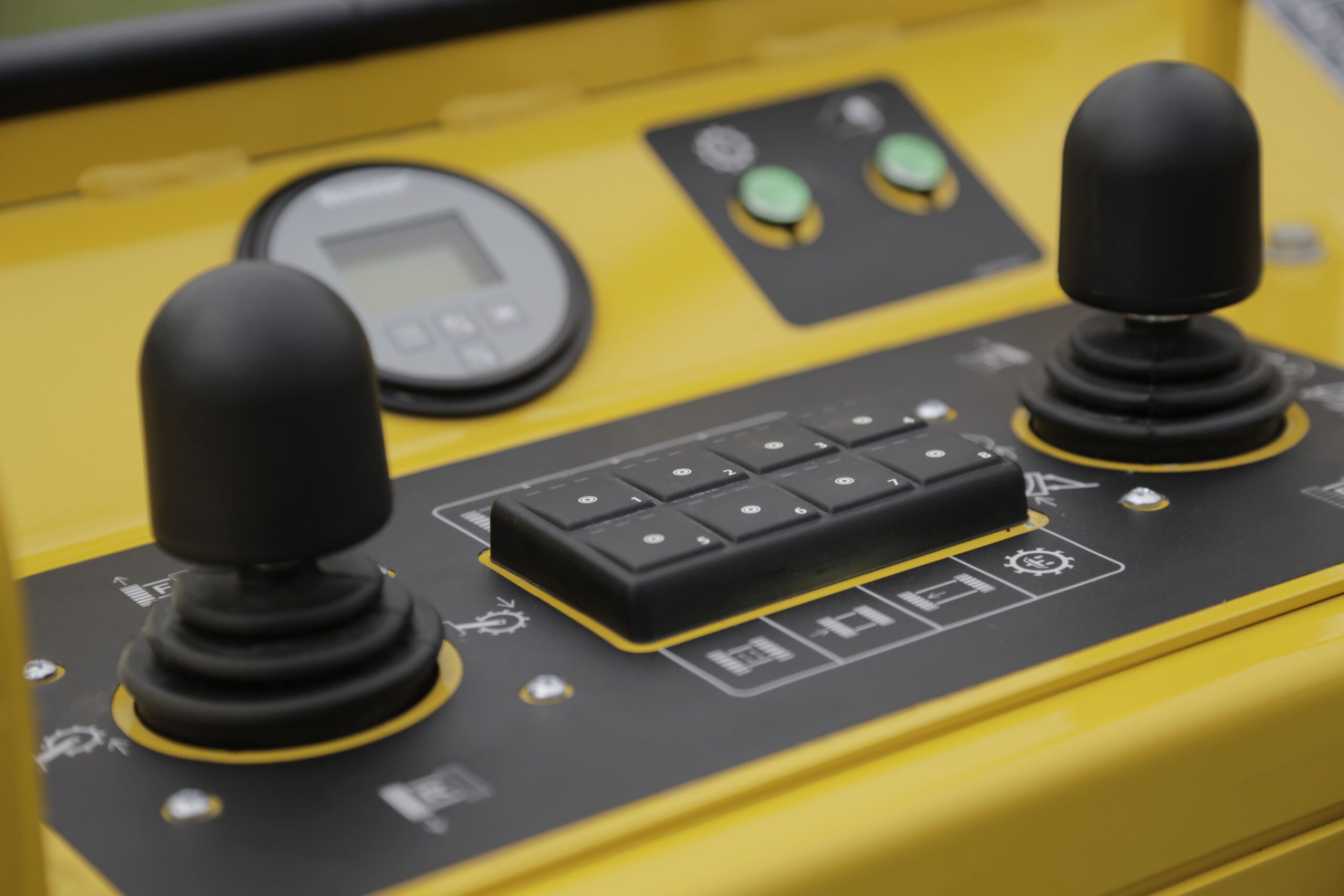

Control Station Description Swing out
Operator Vision Shield Description Abrasion-resistant coated polycarbonate
Radio Remote Control Optional, wireless
Switches Boom swing, boom height, creep propel, ignition, clutch, track gauge, track speed range and throttle, blade
Battery 950 CCA
System Voltage 12
Display Multifunction display (MFD) that displays hours, fuel level, engine speed, engine faults and engine status
Controller Danfoss
Shutdown System High engine temperature and low oil pressure
Warning Lights Engine warning
Weight - Engine Option One 3750lbs (1701kg)
Sound Power 107 dB(A)
Length 140in (355.6cm)
Width (tracks retracted) 35in (88.9cm)
Width (tracks extended) 49in (124.5cm)
Height (non-remote unit) 76in (193cm)
Height (remote unit) 85in (215.9cm)
Lower Gearbox Straight bevel
Oil Type - Lower Gearbox SAE 75W90 synthetic gear oil
Oil Capacity - Lower Gearbox 1.6qt (1.5L)
Driveshaft 2 universal joints
Driveshaft - U Joints 2 standard with double lip seal

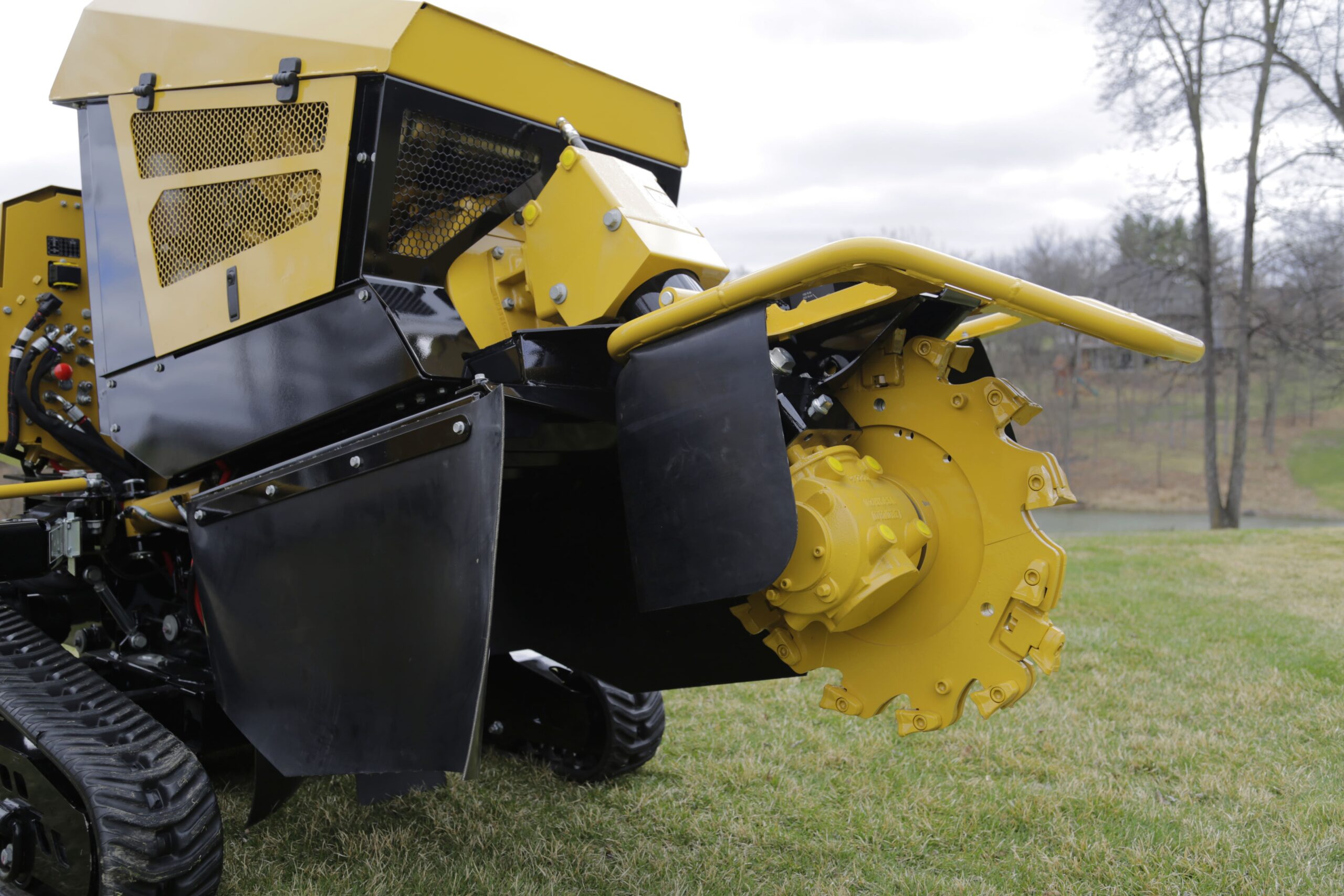

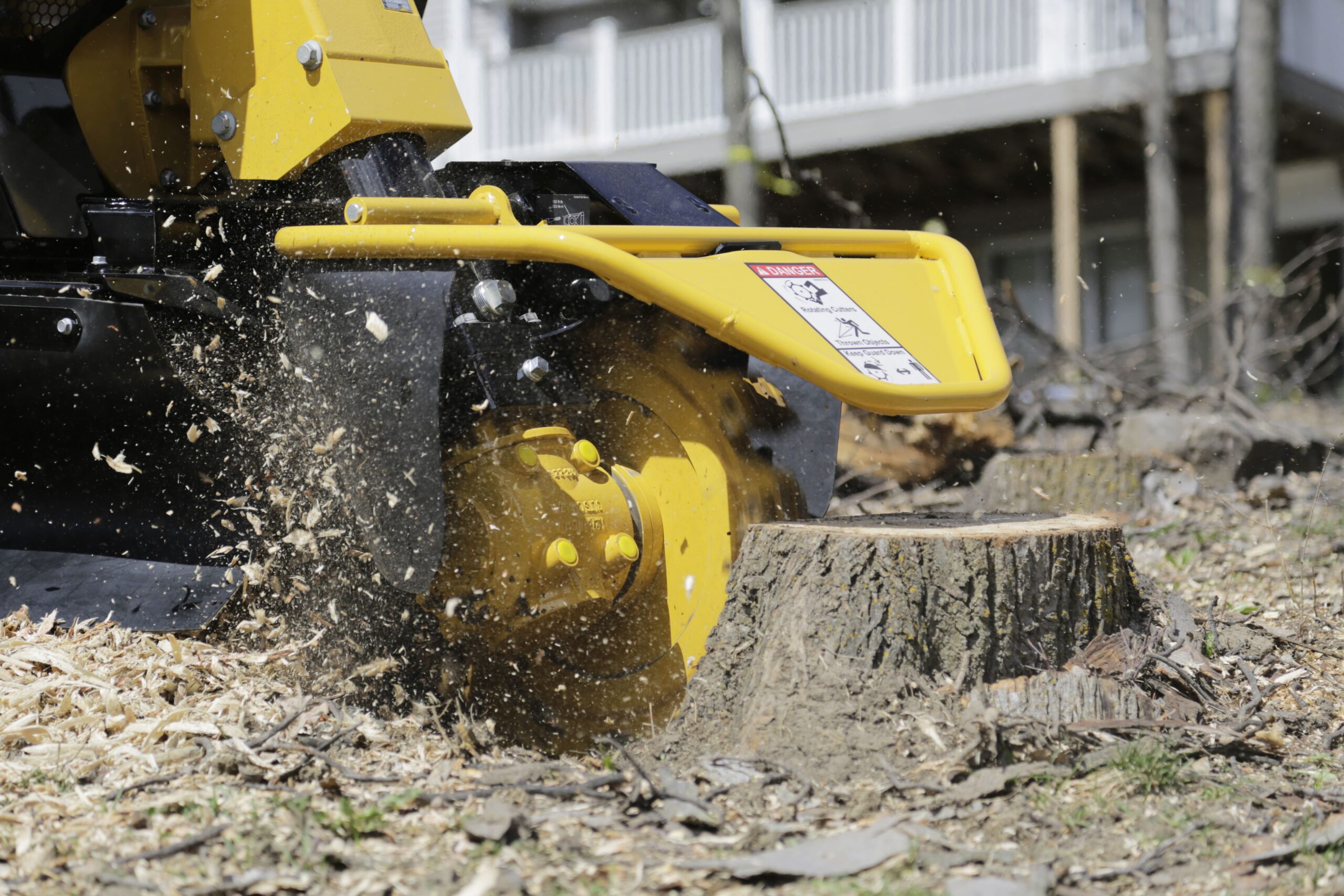

Cutterwheel Speed 1235rpm
Cutterwheel Thickness 1.4in (3.5cm)
Number of Teeth 27
Tooth Description Vermeer cutting system
Cutterwheel Guard Standard
Reversible Pockets/Teeth 24
Cutterwheel Straight Line Dimension 65in (165.1cm)
Cutterwheel Cut Above Ground 28in (71.1cm)
Cutterwheel Cut Below Ground 16in (40.6cm)
Chip Containment 23cu ft (.7cu m)
Cutterwheel Diameter 24in (61cm)
Number of wear plates 6

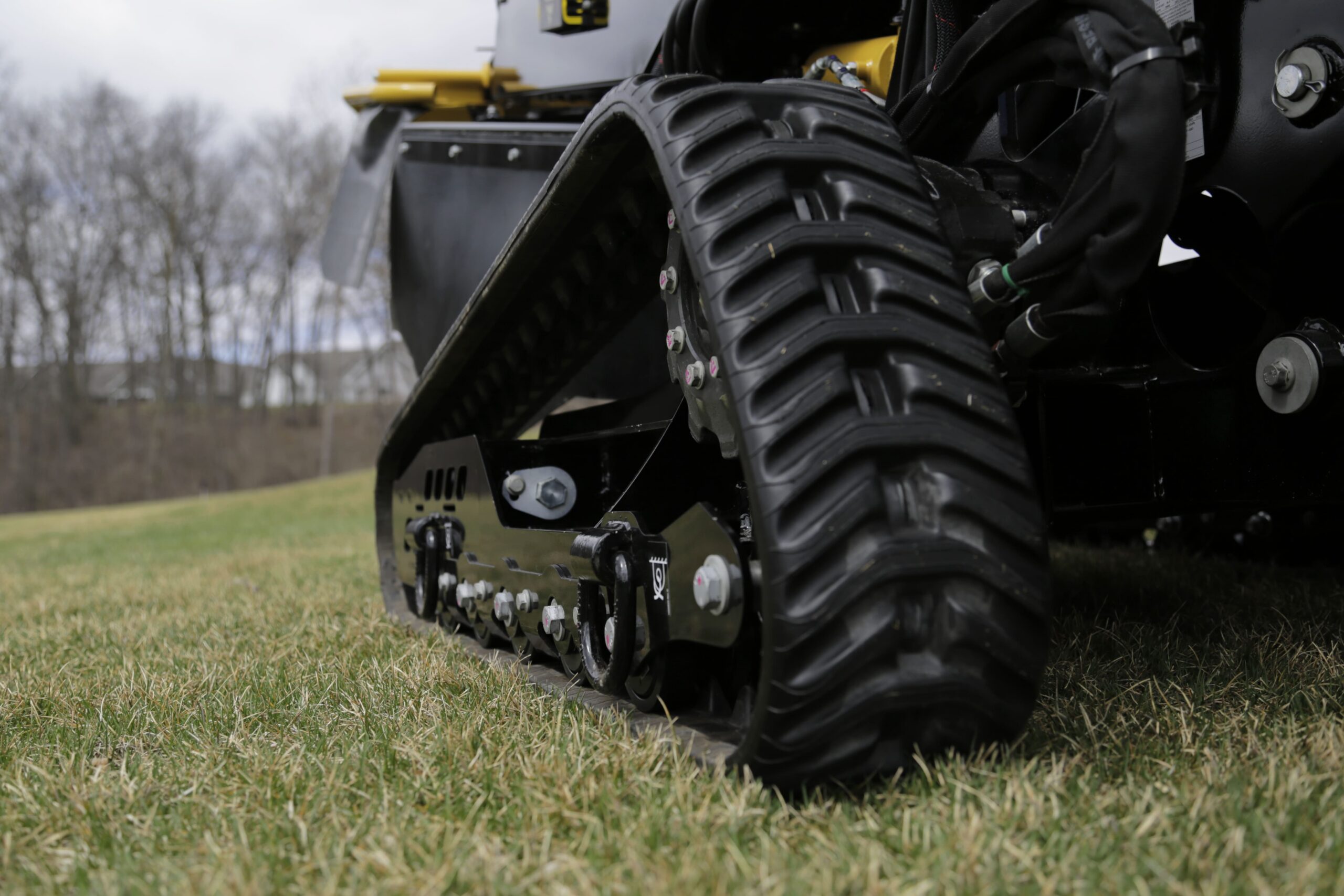

Track Type Rubber 7-in width
Track Drive Pump Type Tandem gear pump, pressure balanced
Number of Idlers 7
Type of Idler Cast
Low Speed Travel 1.1mph (1.8km/h)
Track Length on Ground 47 in (119.4 cm)
Ground Bearing Pressure - Soft Ground 5.7psi (39.2kPa)
High Speed Travel 1.5mph (2.4km/h)
System Relief Pressure 2900 psi
Radio Remote Control Optional
Remote Display LCD with remote control and machine functions status
Remote Range 300 ft (91.4 m)
Remote Functions E-stop, throttle, cutter wheel clutch, boom swing, boom height, propel, track mode and track speed range
Special Paint Optional
Extended Warranty Optional
Preventive Maintenance Optional

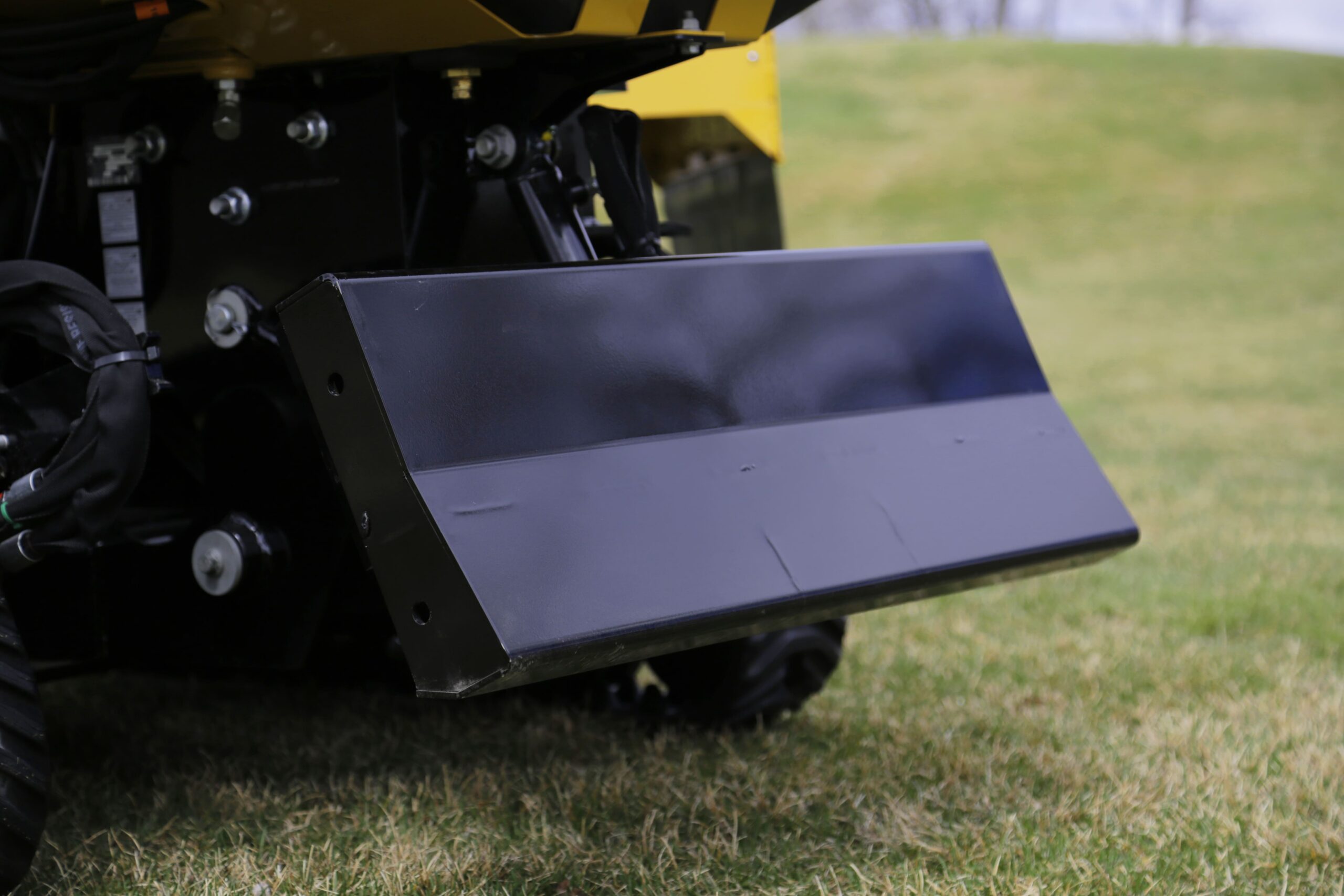

Blade Travel Above Ground 8.5in (21.6cm)
Chip blade width (without extensions) 34in (86.4cm)
High Speed Travel 140ft/min (42.7m/min)
Low Speed Travel 100ft/min (30.5m/min)
