Dessoucheuse SC30TX
- Un encombrement réduit pour plus de maniabilité et d'accessibilité
- Un entretien simplifié
- Une conception axée sur la sécurité
Les rogneuses de souches Vermeer sont pensées pour les chantiers exigeants : puissance, maniabilité et fiabilité au quotidien. Avec une plage de 18,6 à 85,8 kW, vous choisissez le modèle adapté à votre volume de travail et au type de souche.

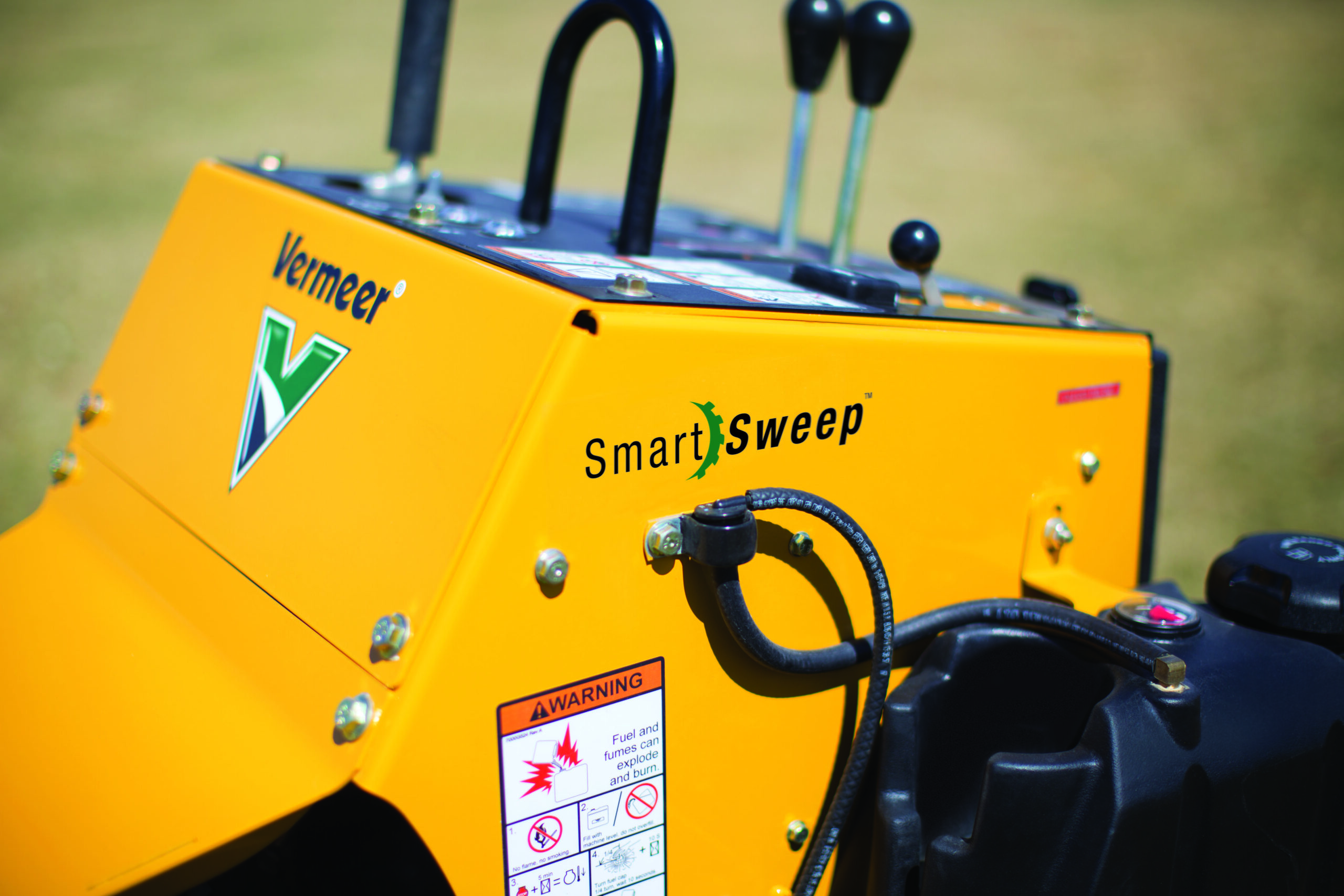

Le système SmartSweep™ améliore l’efficacité sur chantier. L’entretien reste simple et rapide, et la durée de vie des dents augmente. Certains modèles sur chenilles réduisent la pression au sol pour limiter les dégâts sur le gazon. Contactez Vermeer France pour un devis.
General
| Manufacturer | Vermeer |
| Model | Dessoucheuse SC30TX |
| Category | Aménagement paysager & entretien des arbres |
| Price | Request a Quote |
| Year | 2024 |
General Dimensions and Weights
| Length | 94in (238.8cm) |
| Width | 35in (88.9cm) |
| Height | 49in (124.5cm) |
| Weight - Engine Option One | 1550lbs (703.1kg) |
Engine - Option one
| Make and Model | Kohler ECH740 |
| Number of Cylinders | 2 |
| Gross Horsepower (Maximum) | 25hp (18.6kw) |
| Torque (Max) | 42ft-lb (56.9Nm) |
| Fuel Tank Capacity | 6.8gal (25.7L) |
| Max Fuel Consumption | 2.4gph (9.1lph) |
| Fuel Type | Gas |
| Air Cleaner | 6 " (15.2 cm) 2-Stage dry |
| Oil Filter | Spin-on |
| Recommended Oil | Kohler oil or API CH4/SJ |
| Oil Volume with Filter | 2qt (1.9L) |
| Maximum Angle of Continuous Operation | 25deg |
| Cooling Medium | Air/oil |

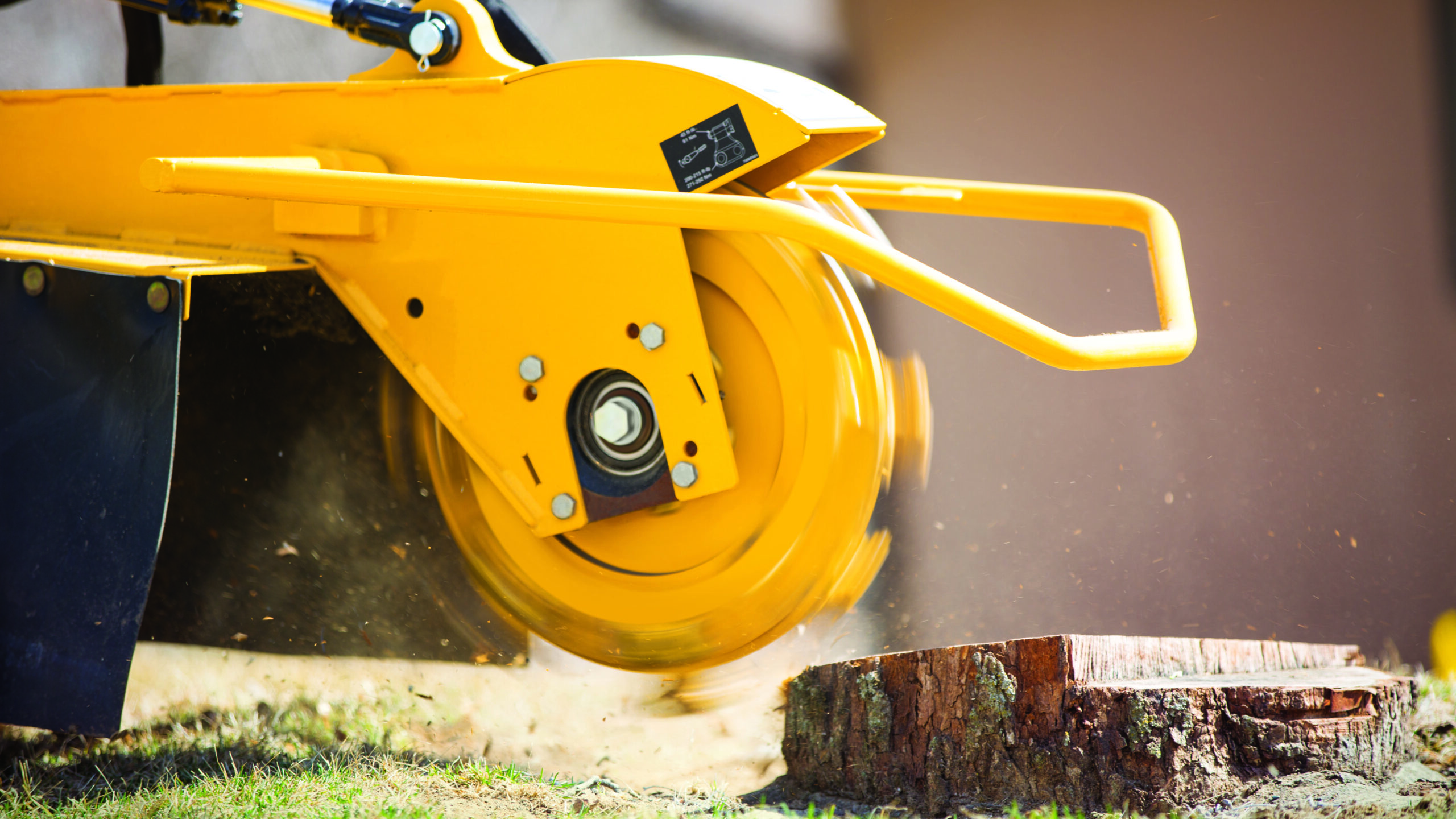

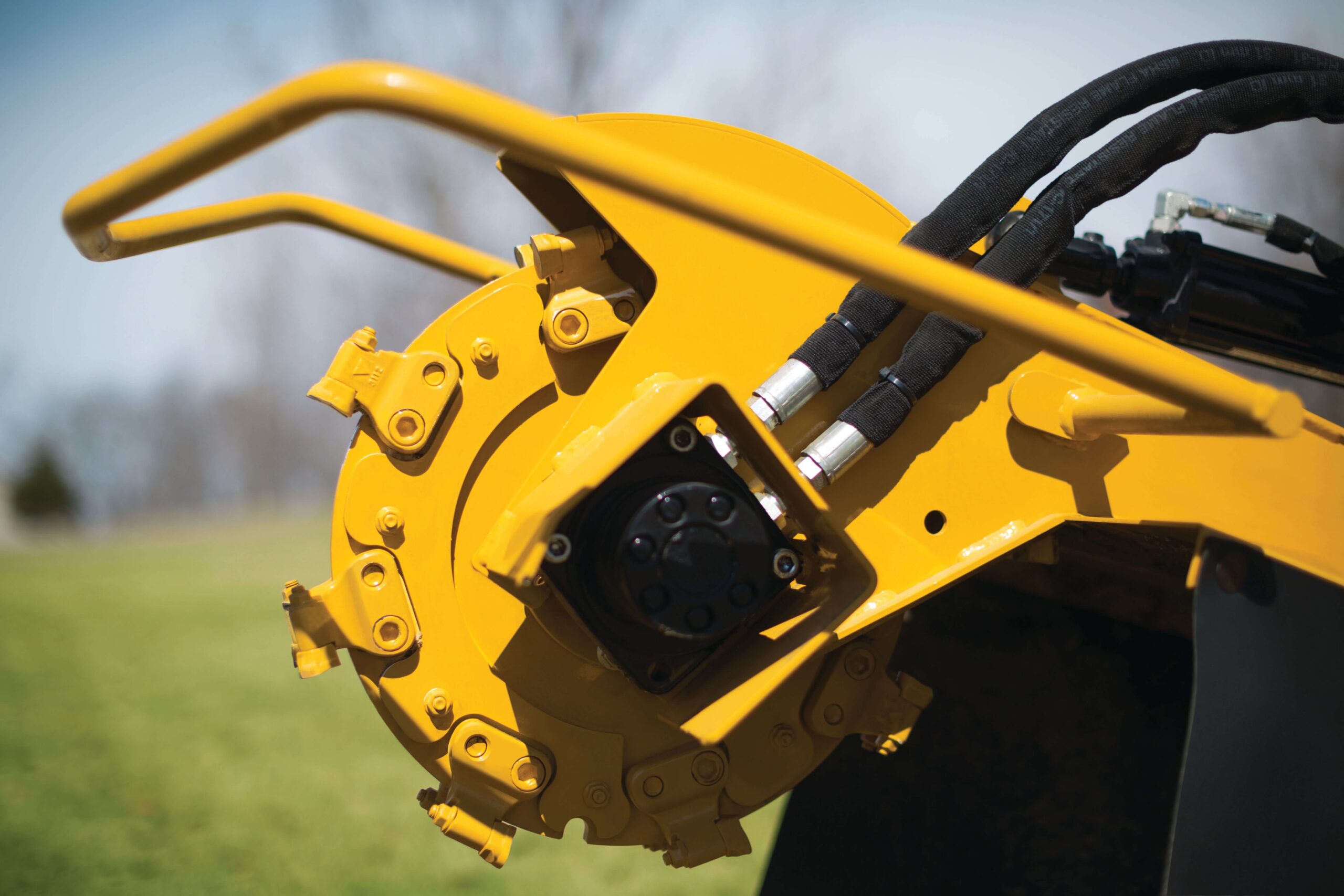

Cutterwheel System
| Cutterwheel Diameter | 16in (40.6cm) |
| Cutterwheel Thickness | .5in (1.3cm) |
| Cutterwheel Speed | 1110rpm |
| Cutterwheel Straight Line Dimension | 35.5in (90.2cm) |
| Cutterwheel Cut Above Ground | 25in (63.5cm) |
| Cutterwheel Cut Below Ground | 12in (30.5cm) |
| Tooth Description | Yellow Jacket Cutter System |
| Number of Teeth | 16 |
| Number of Indexes | 2 |
| Number of Pockets | 16 |
| Reversible Pockets/Teeth | Yes |
| Cutterwheel Guard | Yes |
| Chip Containment | 2.2cu ft (.1cu m) |
Cutterwheel system - Two
| Number of Teeth | 20 |
Cutterwheel Drive Components
| Lower Gearbox | Hydraulic motor |
Hydraulic System
| Tank capacity | 9gal (34.1L) |
| Recommended Oil Type | ISO 68 |
| System Type | Open loop |
| Filtration Method | Inline return filter |
| Pump Flow at Maximum RPM | 16gpm (60.6L/min) |
| System relief pressure | 2750psi (189.6bar) |

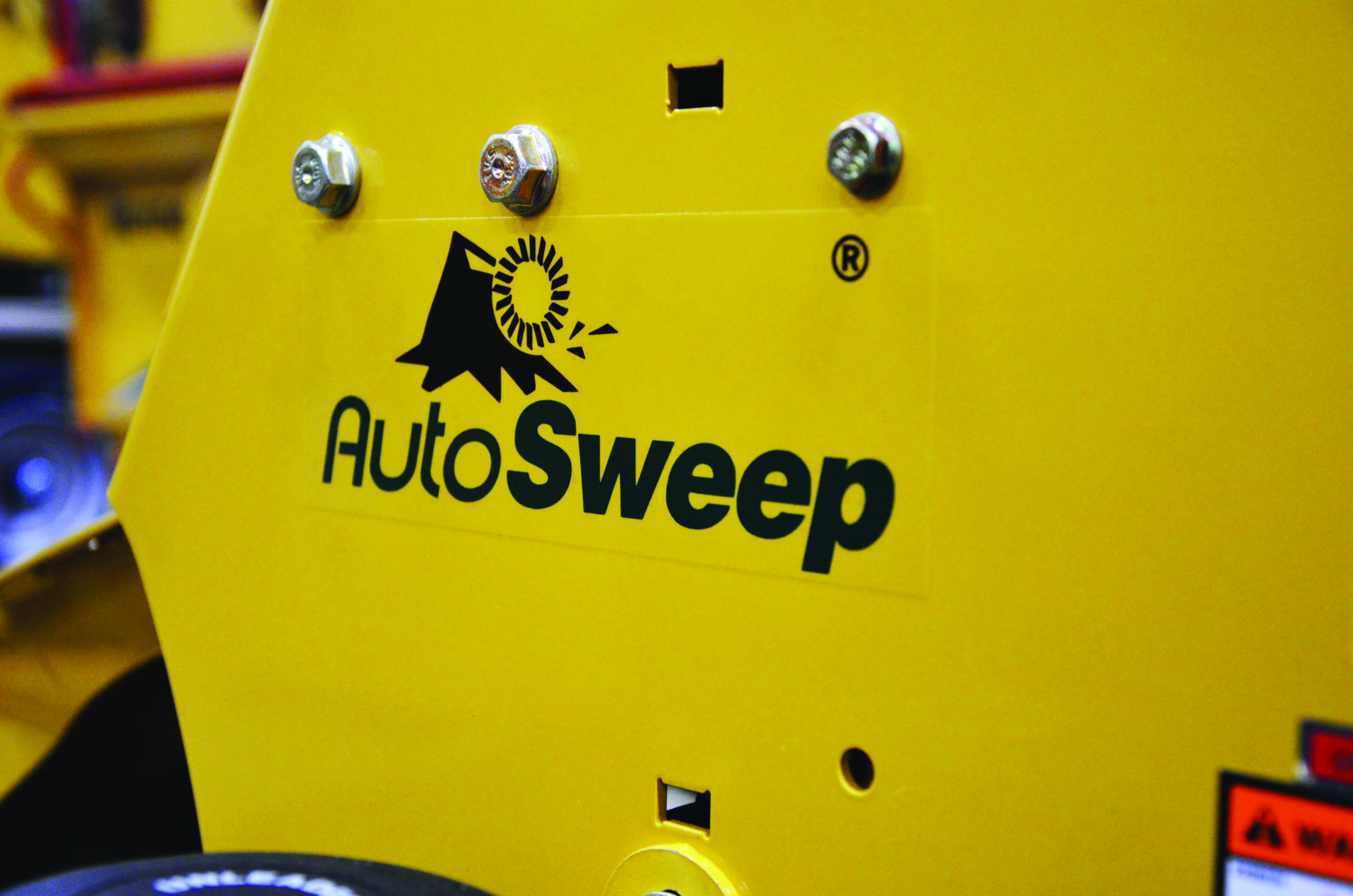

| Flow Control | Autosweep (option) |
| Directional Control | Standard |
| Oil Cooler | Yes. Fan-cooled |
Electrical System
| System Voltage | 12 |
| Battery | 405 |

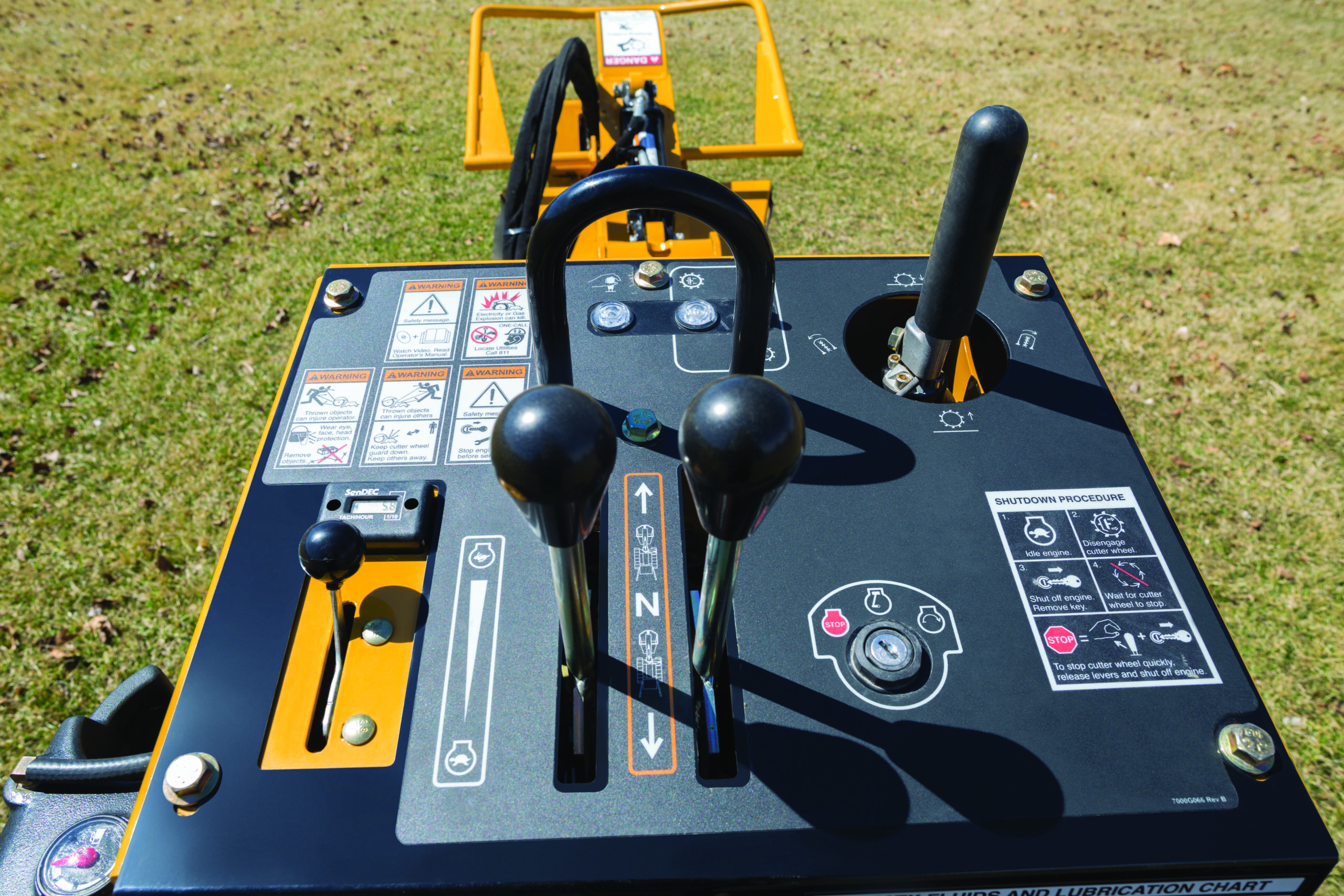

| Standard Gauges | Hour meter/tach |
| Switches | Cutter wheel drive |
| Controller | Yes |
Chassis
| Control Station Description | Fixed-rear |
Track Drive System
| Track Type | Rubber 7 " (17.8 cm) width |
| Track Width - Retracted | 35 " (88.9 cm) |
| Track Width - Extended | 35 " (88.9 cm) |
| Track Length on Ground | 31.4 " (79.7 cm) |
| Type of Idler | Cast |
| Number of Idlers | 5 |
| Track Drive Pump Type | Hydrostatic |
| System Relief Pressure | 2900 psi (200 bar) |
| Pump Flow at Maximum RPM | 11.4 gpm (43.1 L/min) |
| Track Drive Motor Type | Geroter |
| Track Brake Type | Hydrostatic |
| High Speed Travel | 3.2mph (5.1km/h) |
| Ground Bearing Pressure - Soft Ground | 3.4psi (23.4kPa) |
Other Options
| Special Paint | Per request |
| Extended Warranty | Per request |
| Preventive Maintenance | Per request |
