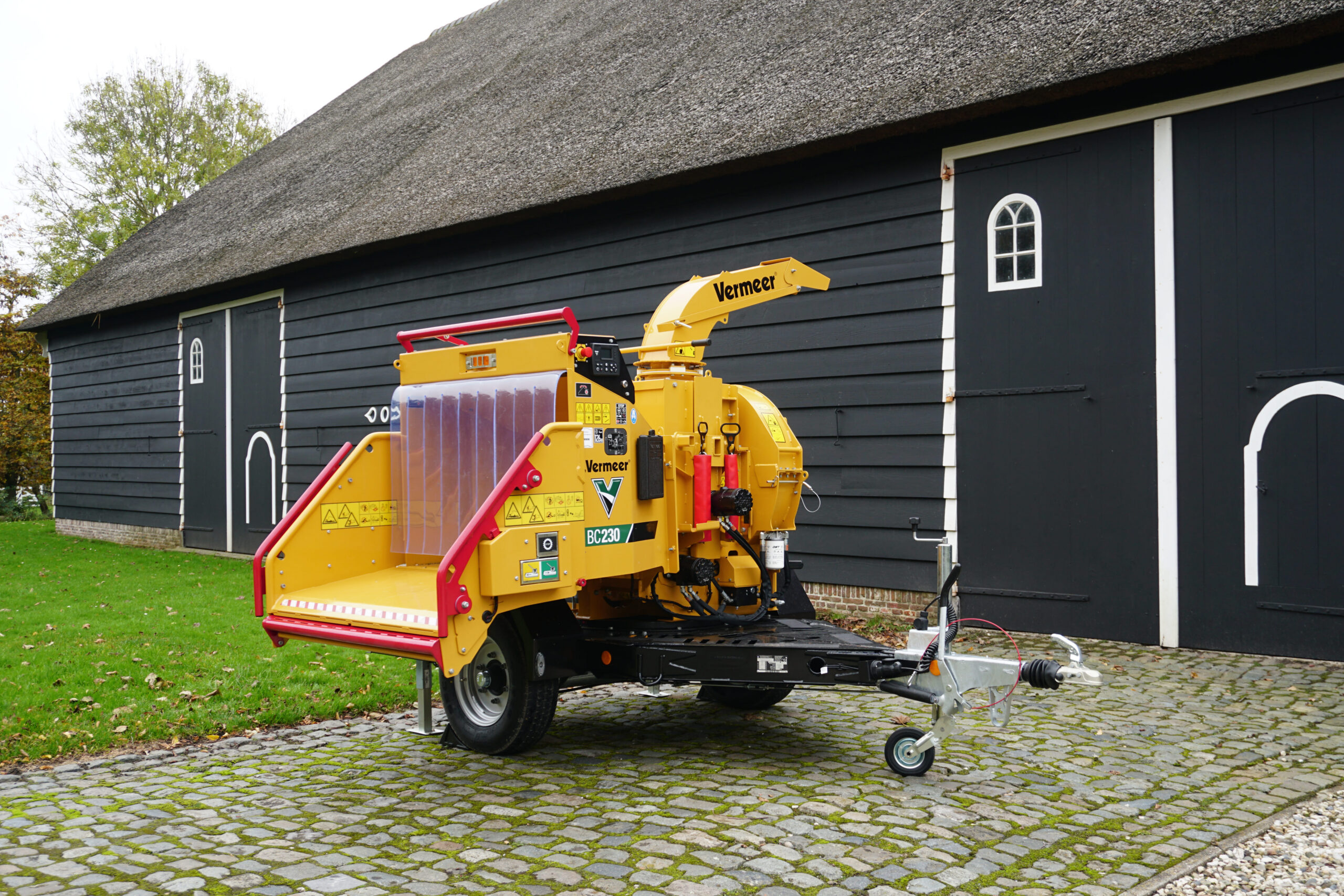

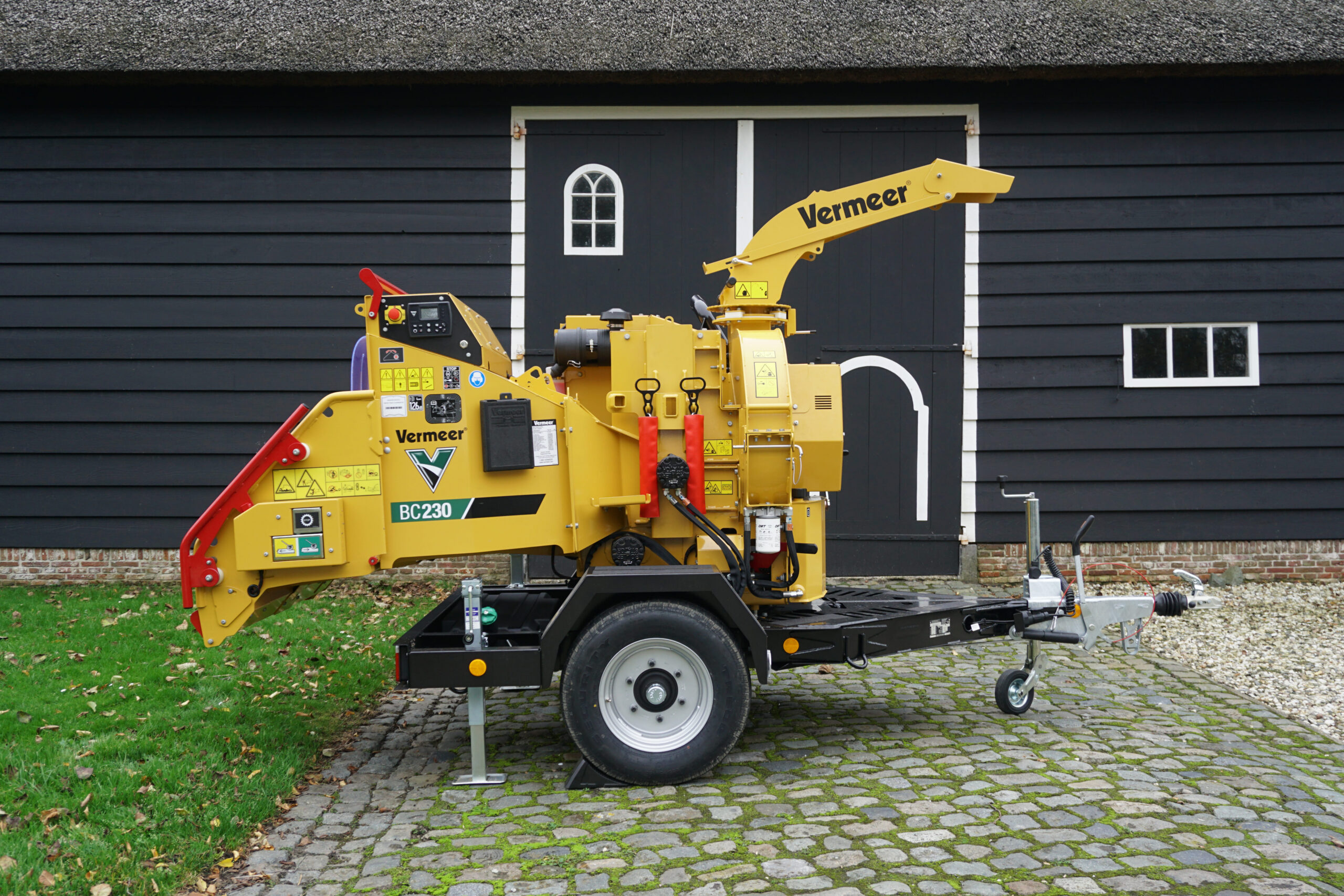

Broyeur de branches BC230
- Moteur diesel CAT® Phase V de 55 kW (74 cv)

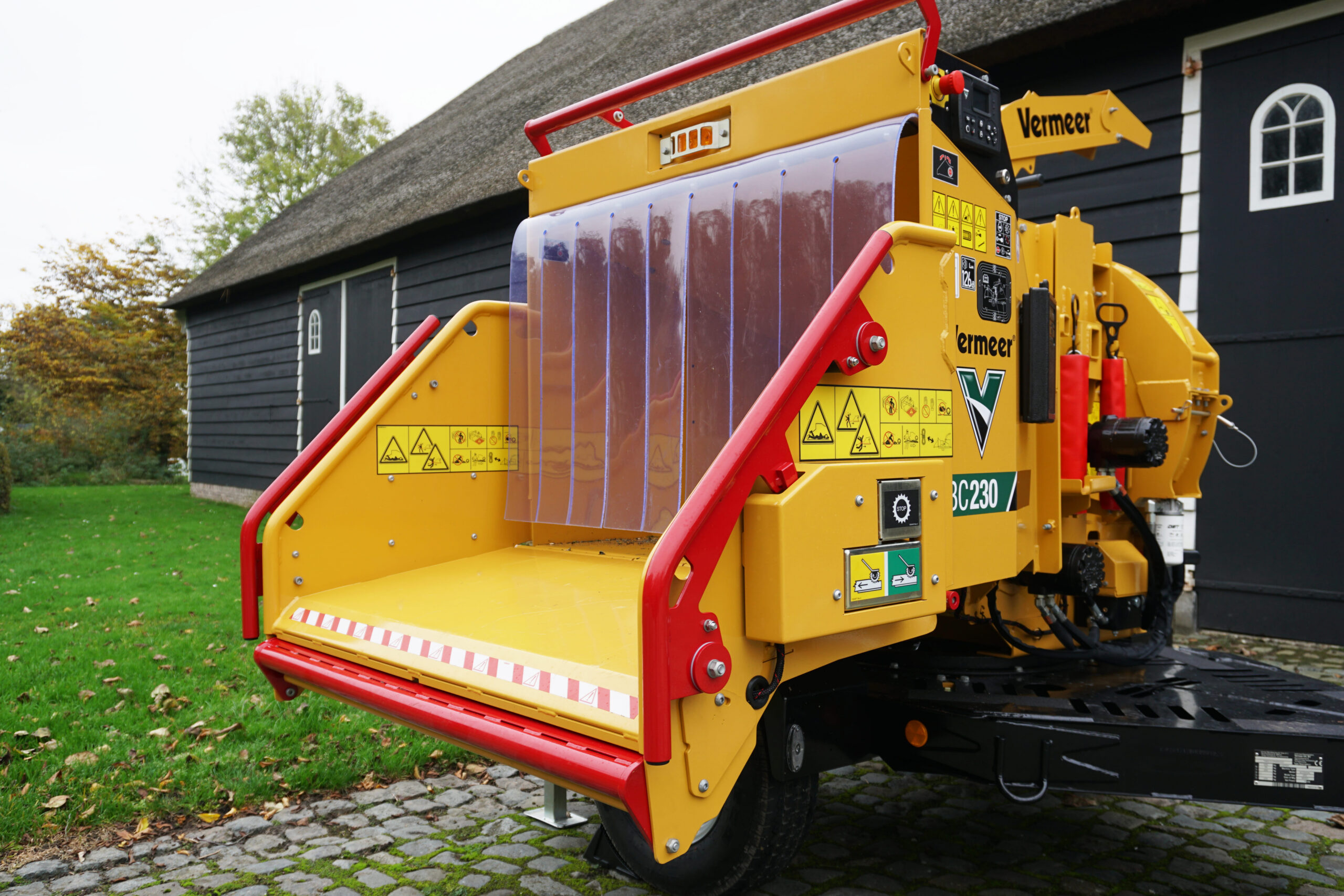

- Table tournante pratique
- Rouleaux d’alimentation horizontaux jumeaux à déport

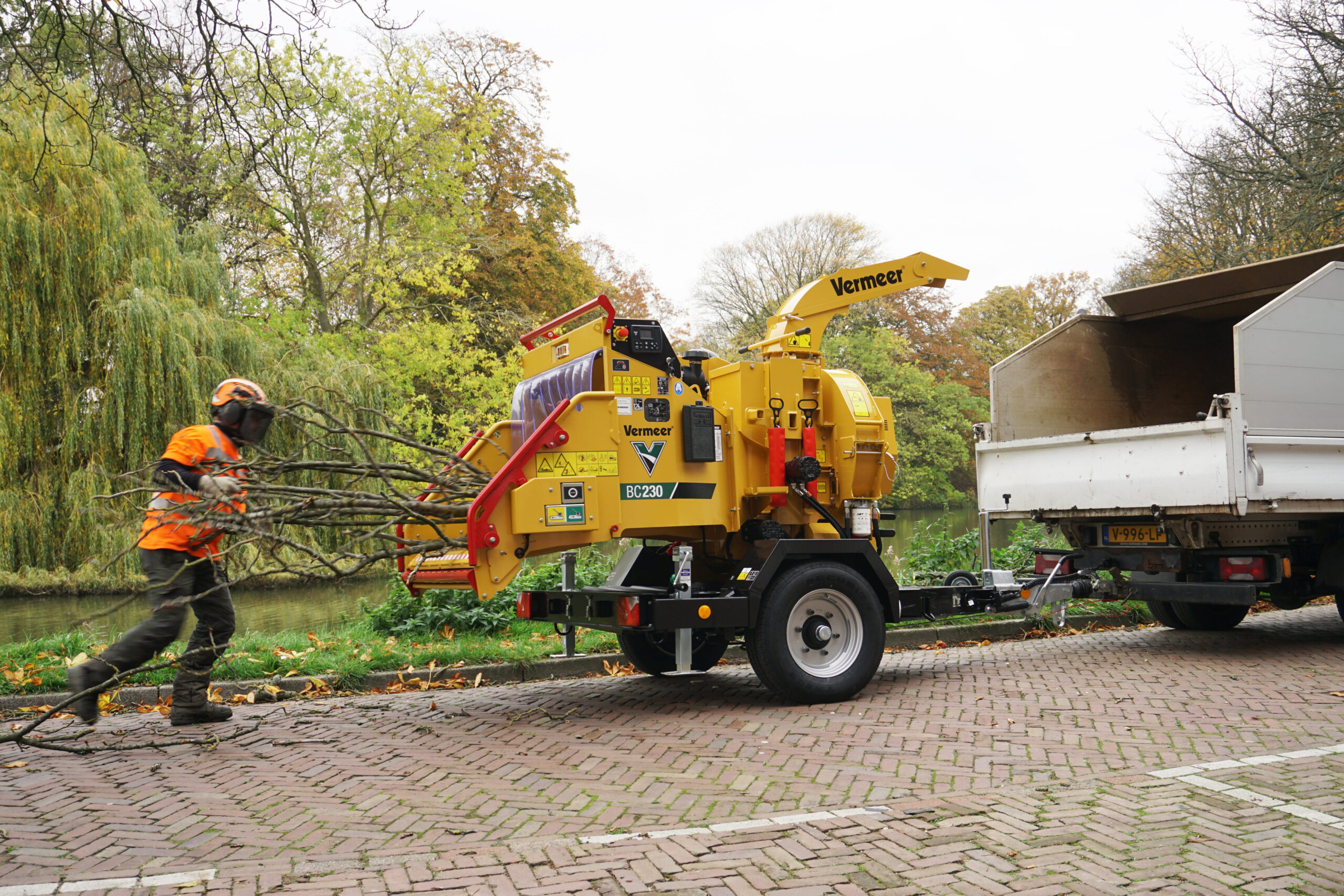

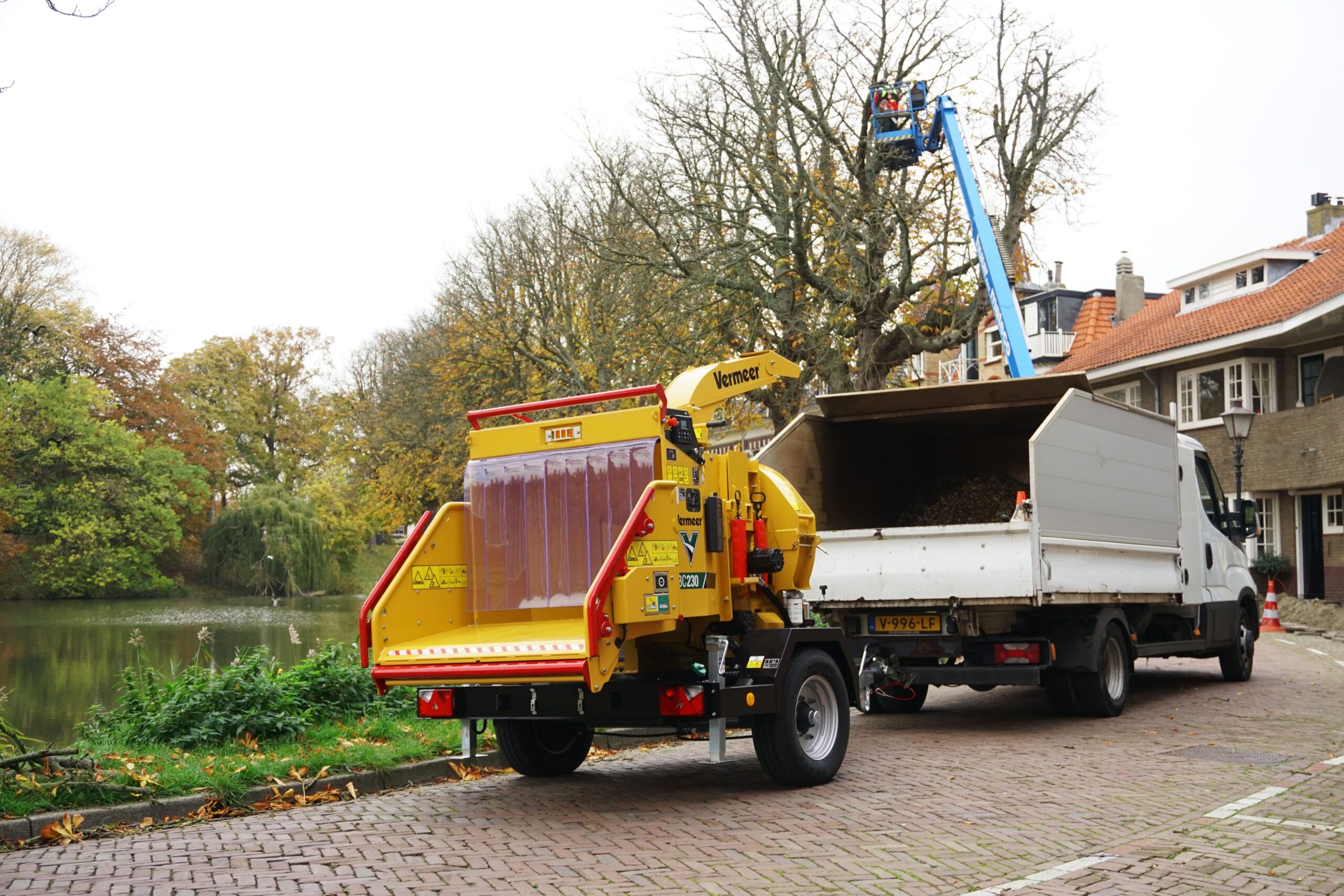

Les broyeurs de branches Vermeer sont pensés pour les professionnels de l’élagage et de l’entretien des arbres qui recherchent une machine fiable, performante et sécurisante. Leur conception robuste et leurs fonctionnalités d’aide à l’utilisation permettent de gagner du temps et de mieux maîtriser le broyage des déchets ligneux au quotidien.
Grâce à SmartFeed, l’alimentation est régulée pour améliorer la productivité, notamment sur bois dur. Et avec EcoIdle™, le moteur baisse automatiquement de régime après 1 à 5 minutes d’inactivité, pour réduire le bruit et la consommation. Découvrez la gamme et demandez un devis auprès de Vermeer France.
General
| Manufacturer | Vermeer |
| Model | Broyeur de branches BC230 |
| Category | Aménagement paysager & entretien des arbres |
| Price | Request a Quote |
| Year | 2024 |
General Dimensions and Weights
| Length - Feed Table Up, Tongue In | 151in (383.5cm) |
| Length - Table Down, Tongue Extended | 165in (419.1cm) |
| Width | 74in (188cm) |
| Height | 103in (261.6cm) |
| Weight - Engine Option One | 4740lbs (2150kg) |
| Tongue Weight - Engine Option One | 220lbs (99.8kg) |
| Sound Power | 126 dB(A) |
Engine - Option one
| Make and Model | Cat 2.2 stage V |
| Number of Cylinders | 4 |
| Gross Horsepower (Maximum) | 74hp (55.2kw) |
| Torque (Max) | 200ft-lb (271.2Nm) |
| Fuel Tank Capacity | 13gal (49.2L) |
| Max Fuel Consumption | 2.4gph (9lph) |
| Fuel Type | Ultra low sulfur diesel |
| Air Cleaner | Donaldson 2 Stage Dry |
| Oil Filter | Spin on |
| Recommended Oil | SAE 10W or SAE 10W-30 |
| Oil Volume with Filter | 11.6qt (11L) |
| Maximum Angle of Continuous Operation | 30deg |
| Cooling Medium | Liquid |
| Coolant Capacity (Engine and Radiator) | 1.7gal (6.4L) |
| Alternator | 85 amps Cat |
| Fan | 419 mm suction |
| Clutch Type | Idler tensioned |
| Clutch Drive Engagement | Manual over center arm |

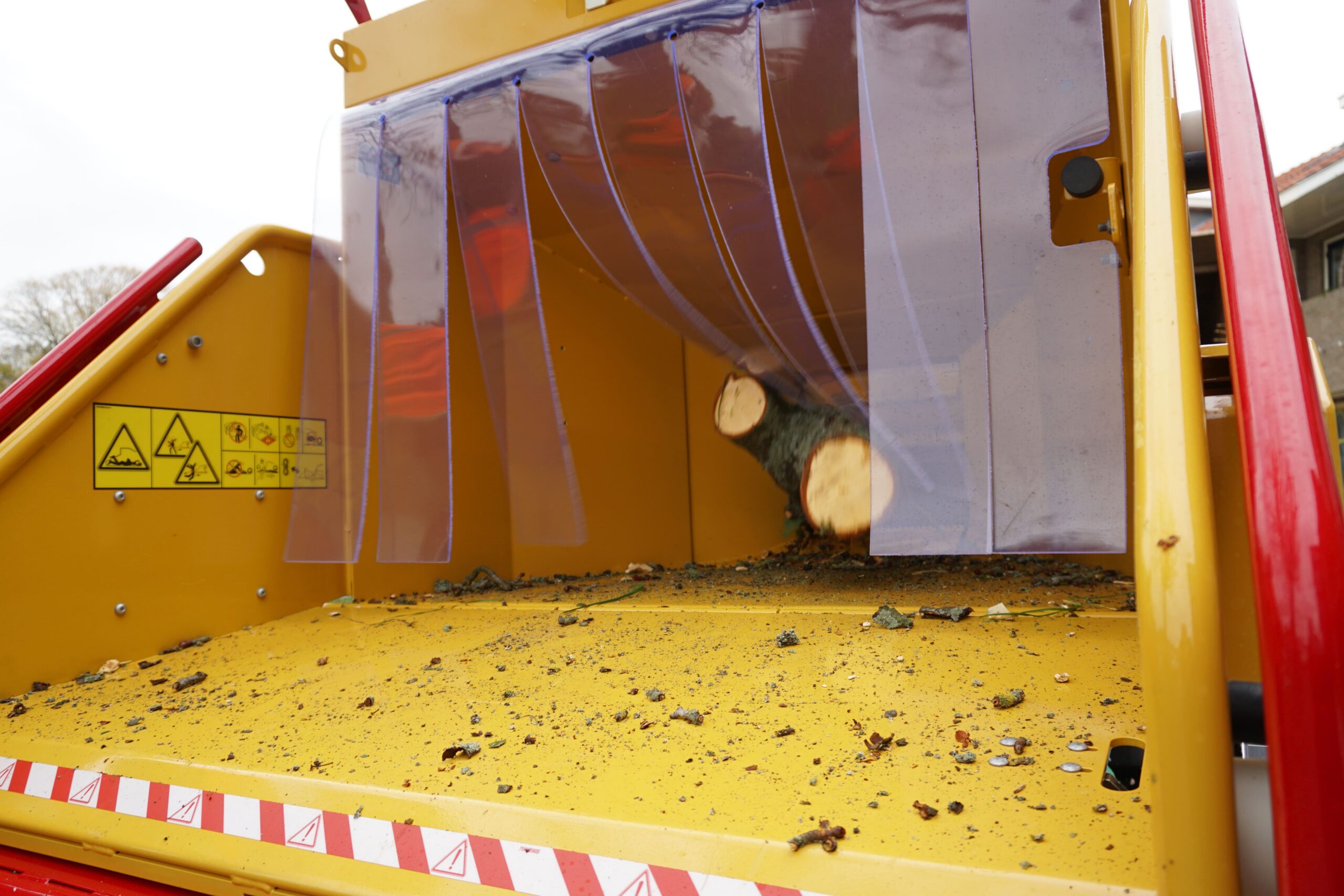

Feed System
| Feed Roller Orientation | Horizontal, offset lower |
| Number of Feed Rollers | 2 |
| Feed Roller Clamp Load | 1086lbs (492.6kg) |
| Feed Roller Clamp Type | 4 springs |
| Feed Roller Minimum Distance to Drum | 5in (12.7cm) |
| Feed Roller Dimension | 16 in (40 cm) |
| Number of Knives | 10 |
| Weight of Feed Roller | 85lbs (38.6kg) |
| Feed Roller Dimension (Two) | 10 in (26 cm) |
| Number of Knives (2) | 12 |
| Weight of Feed Roller (Option Two) | 48lbs (21.8kg) |
| Motor Displacement | Upper: 555cc, Lower: 350cc |
| Motor Manufacturer | Danfoss |
| Feed Speed | 110ft/min |
| Infeed Table Width | 49in (124.5cm) |
| Infeed Table Length | 25in (63.5cm) |
| Infeed Hopper Height | 32in (81.3cm) |
| Infeed Throat Capacity | 14 in x 9 in ( 35.5 cm x 23 cm) |
| Pinch Point - Distance to End of Feed Table | 63in (160cm) |
| Distance from Feed Table to Ground | 30in (76.2cm) |
| Infeed Table Material Thickness | .2in (.5cm) |
Safety System
| Bottom Feed Stop Bar | Pivoting, spring return |
| Bottom Feed Stop Bar Diameter | 2in (5.1cm) |
| Bottom Feed Stop Bar Material Thickness | 0.12 in (3 mm) |
| Actuation Force (BFSB) | 33.1lbs (15kg) |
| Normal Sensitivity | 52deg |
| Reset Method | Push button |
Drum/Disc Cutting System
| Material Capacity | 9in (22.9cm) |
| Thickness | 1in (2.5cm) |
| Diameter | 30in (76.2cm) |
| Speed | 1365 rpm |
| Weight With Shaft | 337lbs (152.9kg) |
| Safety Lock - Number of Positions | 2 |
| Number of Knives | 2 |
| Knife Thickness | .6in (1.6cm) |
| Material | A8 chipper steel |
| Useable Edges | 2 |
| Knife Size | 5 in x 12 in (13 cm x 30 cm) |
| Number of Bolts/Knife | 5 |
| Number of Paddles | 2 |
| Fixture Method | Bolted |
| Air Flow | 1400cfm |
| Bedknife Size | Upper: 9 in x 5 in (22 cm x 13 cm), Lower: 12 in x 5 in (30 cm x 13 cm) |
| Bedknife Thickness | .8in (1.9cm) |
| Bedknife Material | S355J2 |
| Bedknife - Number of Useable Edges | 2 |
Cutter Drive Components - Engine Option One
| Number of Bearings | 2 |
| Bore | 2.2in (5.6cm) |
| Type | Dual-spherical roller |
| Manufacturer | Timken |
| Dynamic Capacity | 32500lbs (14741.8kg) |
| Static Capacity | 44400lbs (20139.5kg) |
| Belt Idler/Tensioner | Idler arm, manually adjusted |
| Belt Type | 3 rib, classic B profile, Aramid cord construction |
Discharge System
| Chute Height | 98in (248.9cm) |
| Bottom Thickness | .1in (.3cm) |
| Top Thickness | .1in (.3cm) |
| Side Wall Thickness | .1in (.3cm) |
| Deflector Thickness | .1in (.2cm) |
| Chute Rotation Angle | 270deg |
| Rotation Type | Manual |
| Rotational Lock | Spring pin |
Hydraulic System
| Tank capacity | 6.8gal (25.7L) |
| Recommended Oil Type | Shell Tellus 68 |
| System Type | Fixed flow, open circuit |
| Filtration Method | Suction: 100 mesh; Return: 10 micron |
| Pump Flow at Maximum RPM | 4gpm (15.1L/min) |
| System relief pressure | 3000psi (206.8bar) |
| Auto Reverse PSI | 2300psi (158.6bar) |
| Directional Control | 12 V solenoid-controlled |

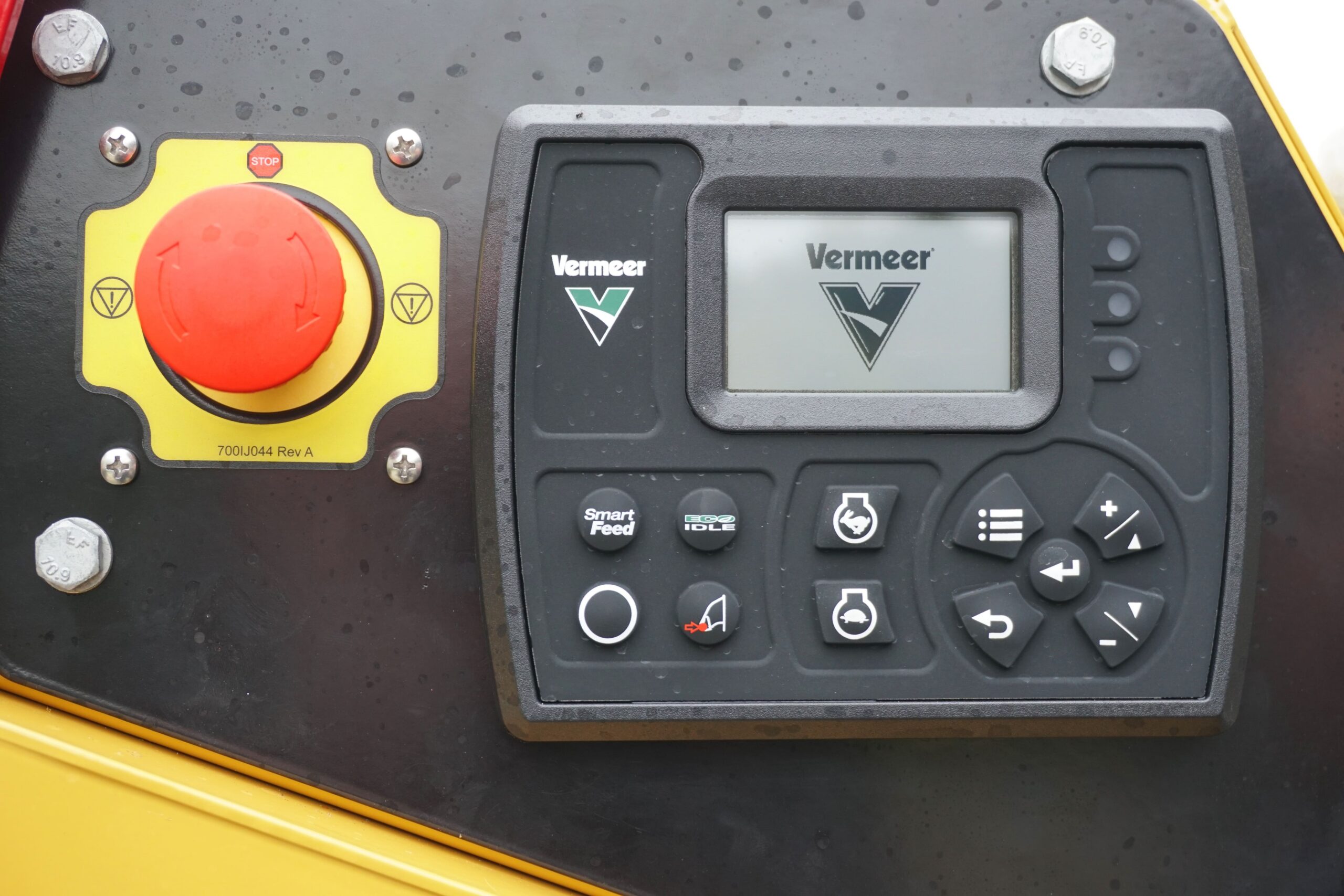

Electrical System
| System Voltage | 12 V |
| Battery | 12 V dC, 70 A/h, 760 CCA |
| Switches | Pizzato |
| Controller | MPC12 |
| Display | MPC12 |
| Shutdown System | CAT ECU |

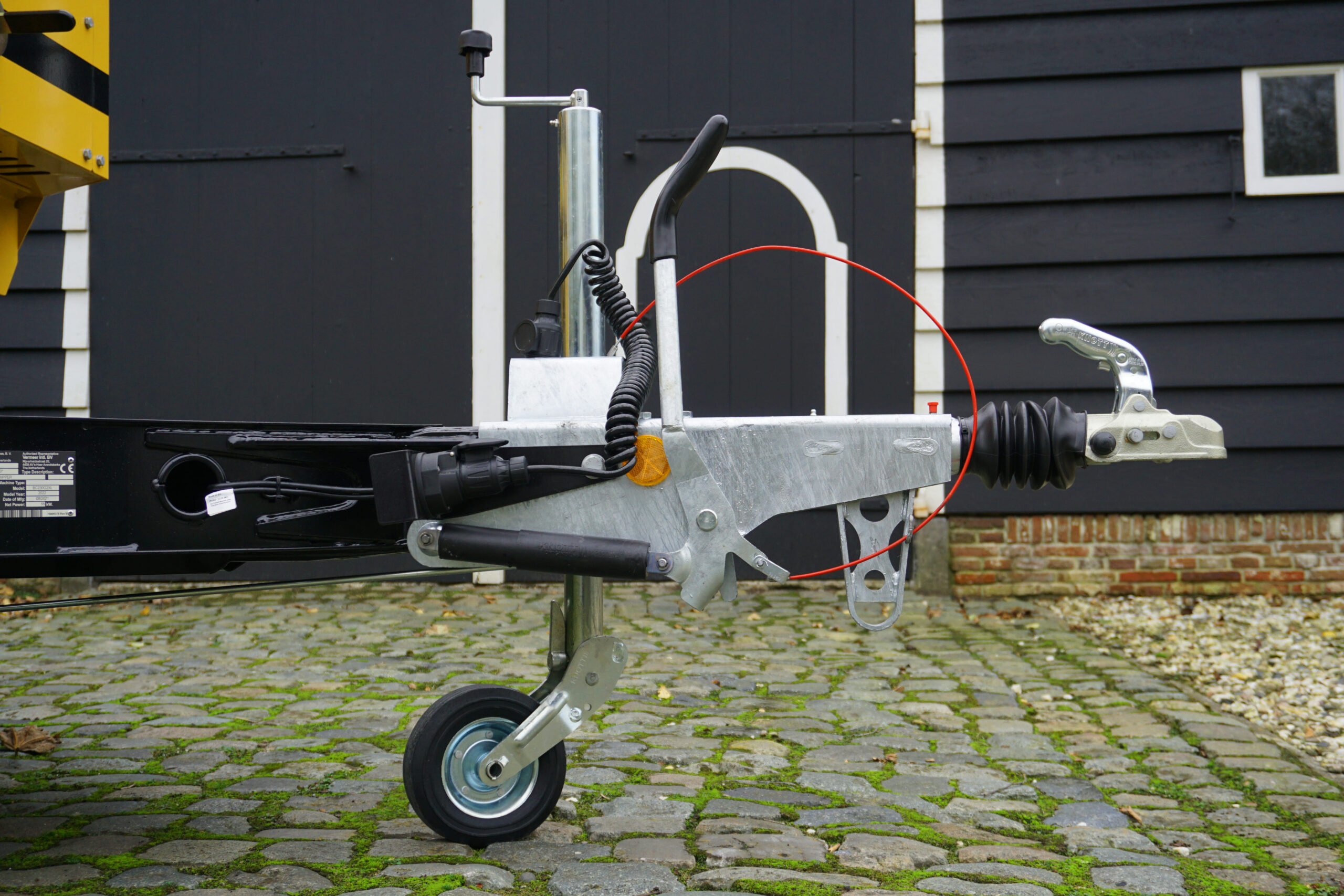

Chassis
| Frame Description | Ladder frame chassis, S-shaped rails |
| Tongue Description | Welded, rectangular tube |
| Hitch Type | Knott KRV30-B 50-mm ball |
| Fender Description | Bolt-on steel |
| Axle/Suspension | Rubber torsion, 3,000-kg (5,511.6-lb) capacity |
| Type - Option One | GB30 |
| Manufacturer - Option One | Knott |
| Capacity - Option One | 1250 kg |
| Tires - Option One | 225/70R15 C-8 |
| Wheels - Option One | 6J x 15 ET0 6 x 205 |
| Brake Type | 300-mm x 60-mm drum, surge brake activated |
| Trailer Light Type | 13-pin connector, LED lights |
Other Options
| Special Paint | Available |
| Extended Warranty | Available |
| Preventive Maintenance | Available |
