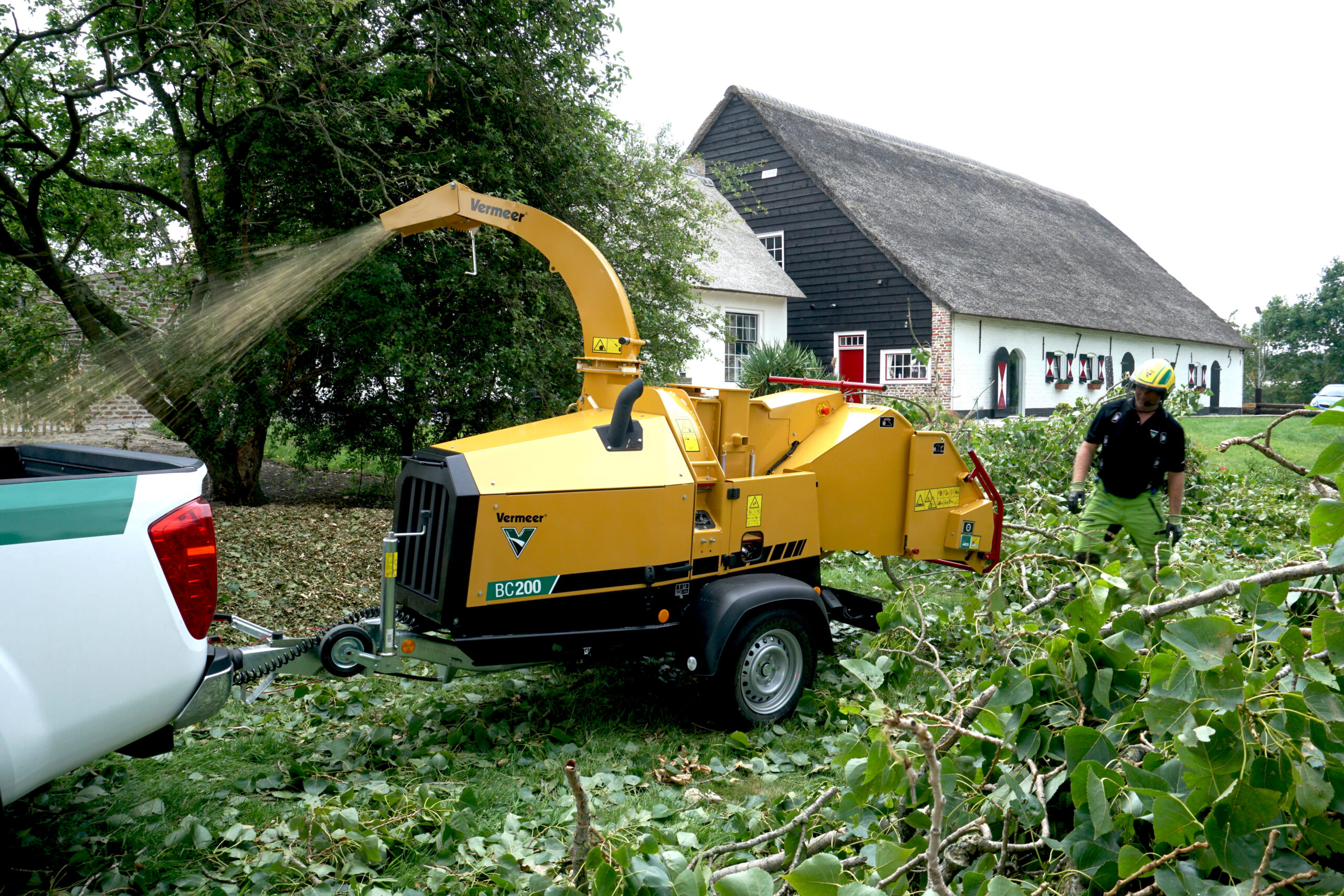

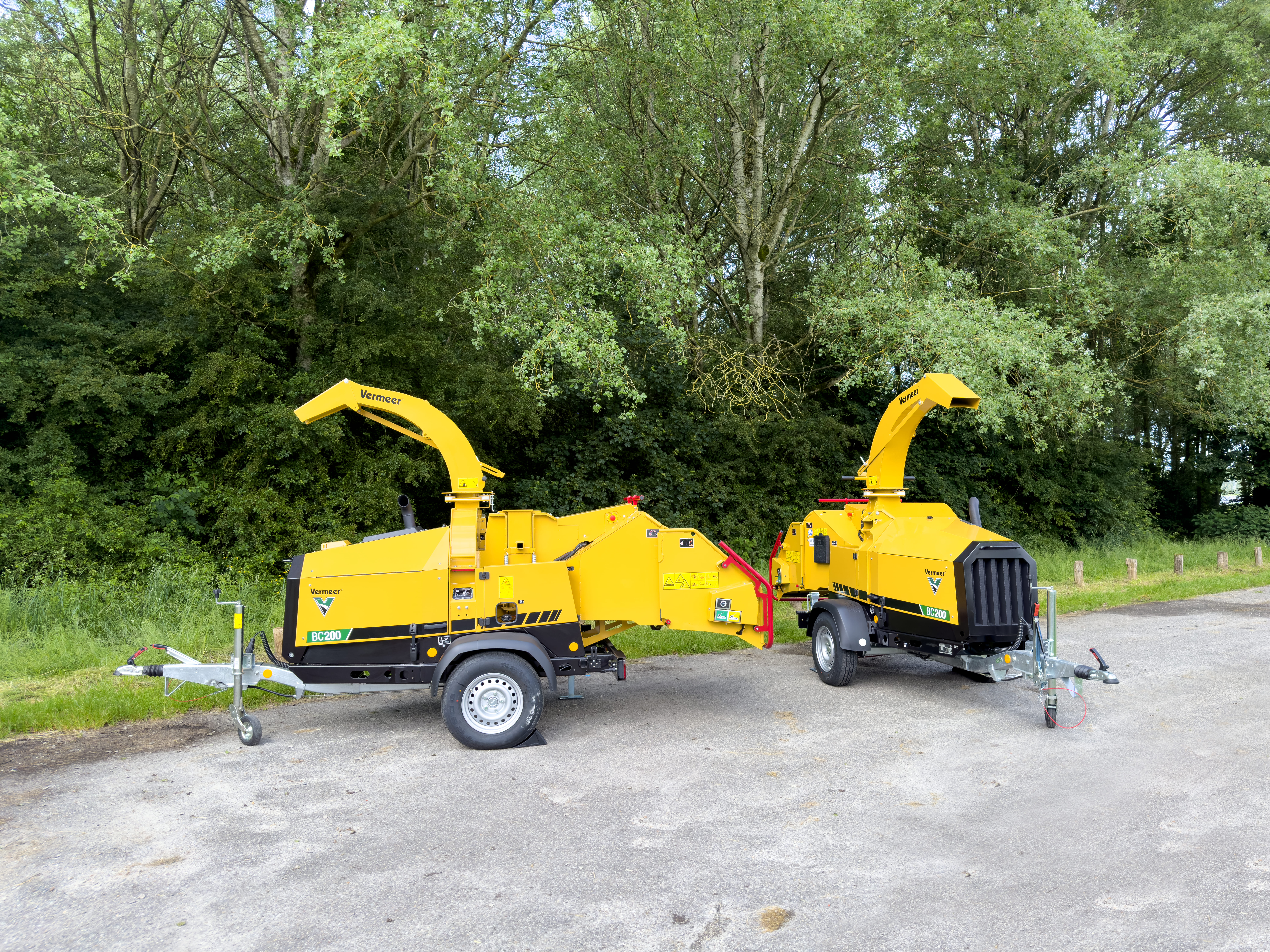

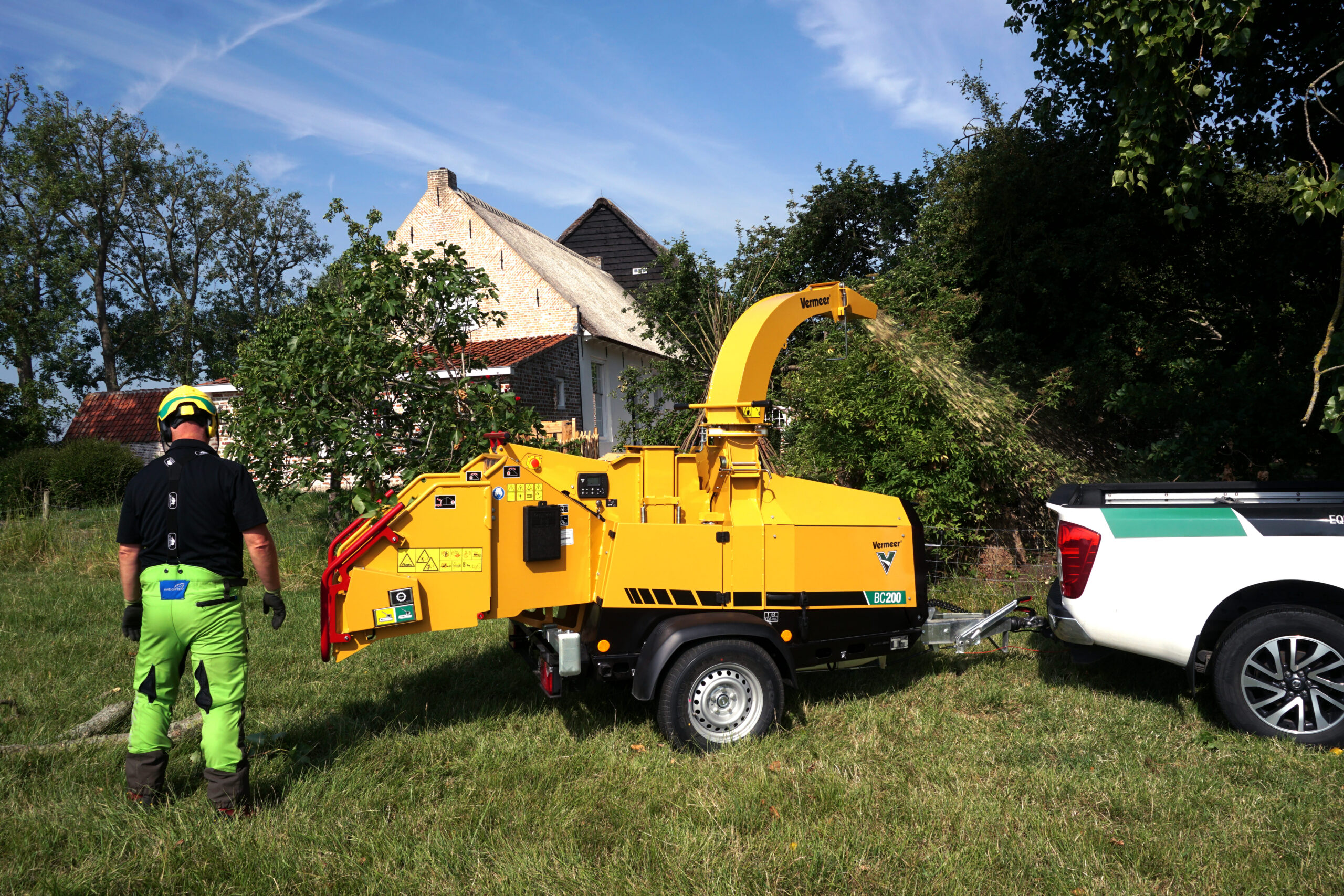

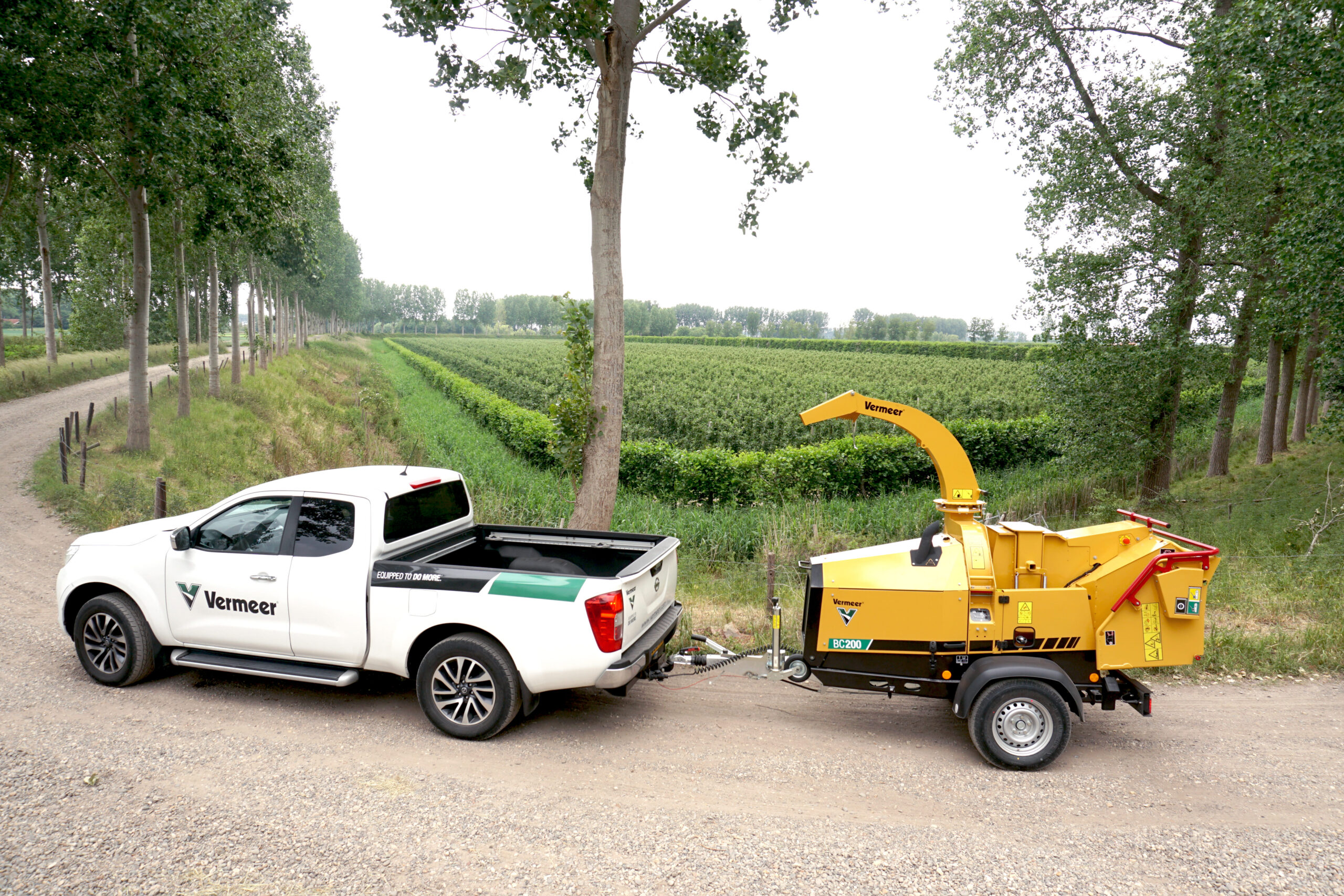

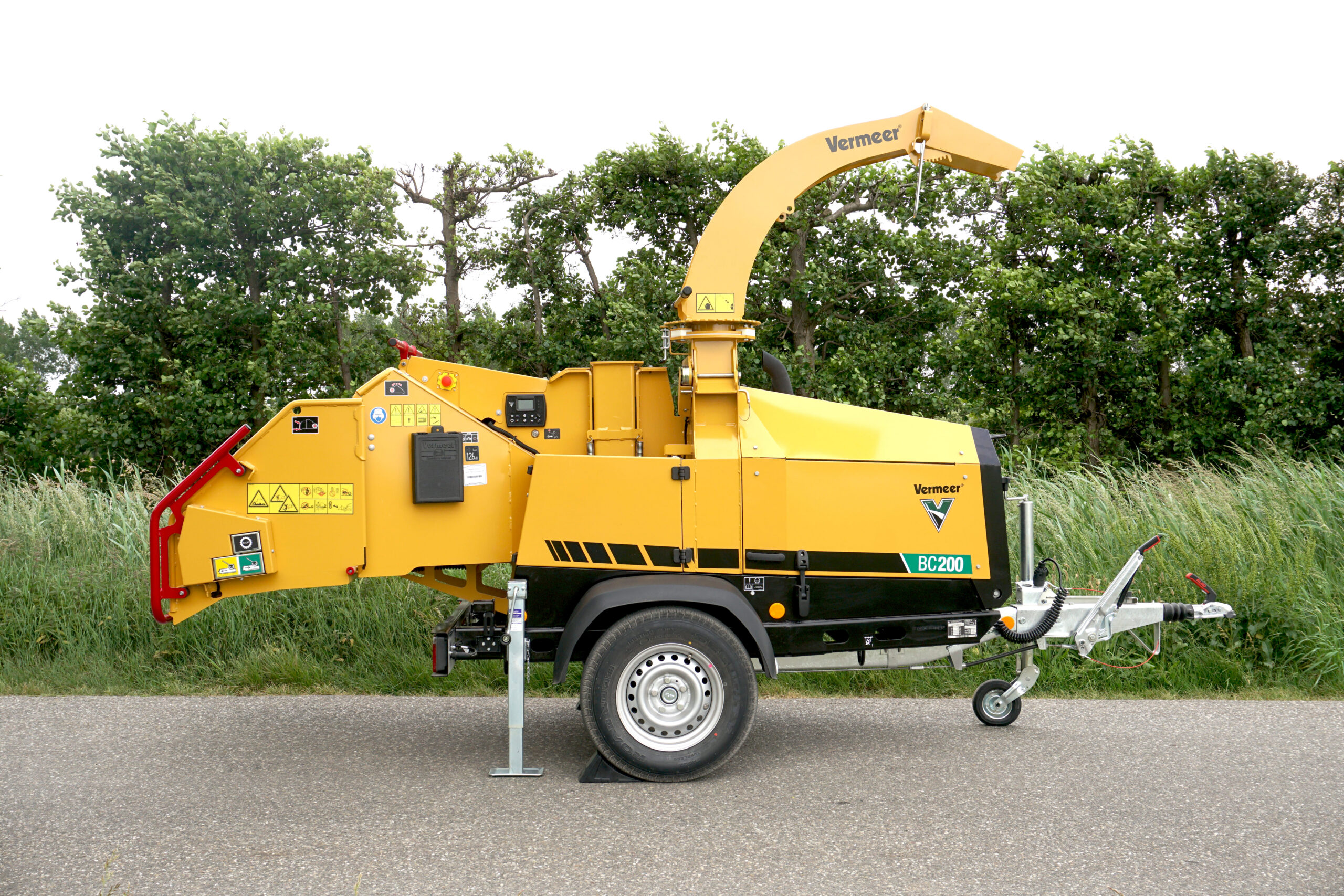

Broyeur de branches BC200
- Conforme à la norme EN 13525
- Moteur phase V
- Entraînement à disque sans embrayage
- Rouleaux d’alimentation horizontaux jumeaux à déport
Les broyeurs de branches Vermeer sont pensés pour les professionnels de l’élagage et de l’entretien des arbres qui recherchent une machine fiable, performante et sécurisante. Leur conception robuste et leurs fonctionnalités d’aide à l’utilisation permettent de gagner du temps et de mieux maîtriser le broyage des déchets ligneux au quotidien.
Grâce à SmartFeed, l’alimentation est régulée pour améliorer la productivité, notamment sur bois dur. Et avec EcoIdle™, le moteur baisse automatiquement de régime après 1 à 5 minutes d’inactivité, pour réduire le bruit et la consommation. Découvrez la gamme et demandez un devis auprès de Vermeer France.
General
| Manufacturer | Vermeer |
| Model | Broyeur de branches BC200 |
| Category | Aménagement paysager & entretien des arbres |
| Price | Request a Quote |
| Year | 2024 |
General Dimensions and Weights
| Length - Feed Table Up, Tongue In | 148in (375.9cm) |
| Length - Table Down, Tongue Extended | 171in (434.3cm) |
| Width | 62in (157.5cm) |
| Height | 99in (251.5cm) |
| Weight - Engine Option One | 3300lbs (1496.9kg) |
| Weight - Engine Option Two | 3230lbs (1465.1kg) |
| Tongue Weight - Engine Option One | 200lbs (90.7kg) |
| Tongue Weight - Engine Option Two | 180lbs (81.6kg) |
| Sound Power | 126 dB(A) |
| Sound Power - Engine Option Two | 117 dB(A) |

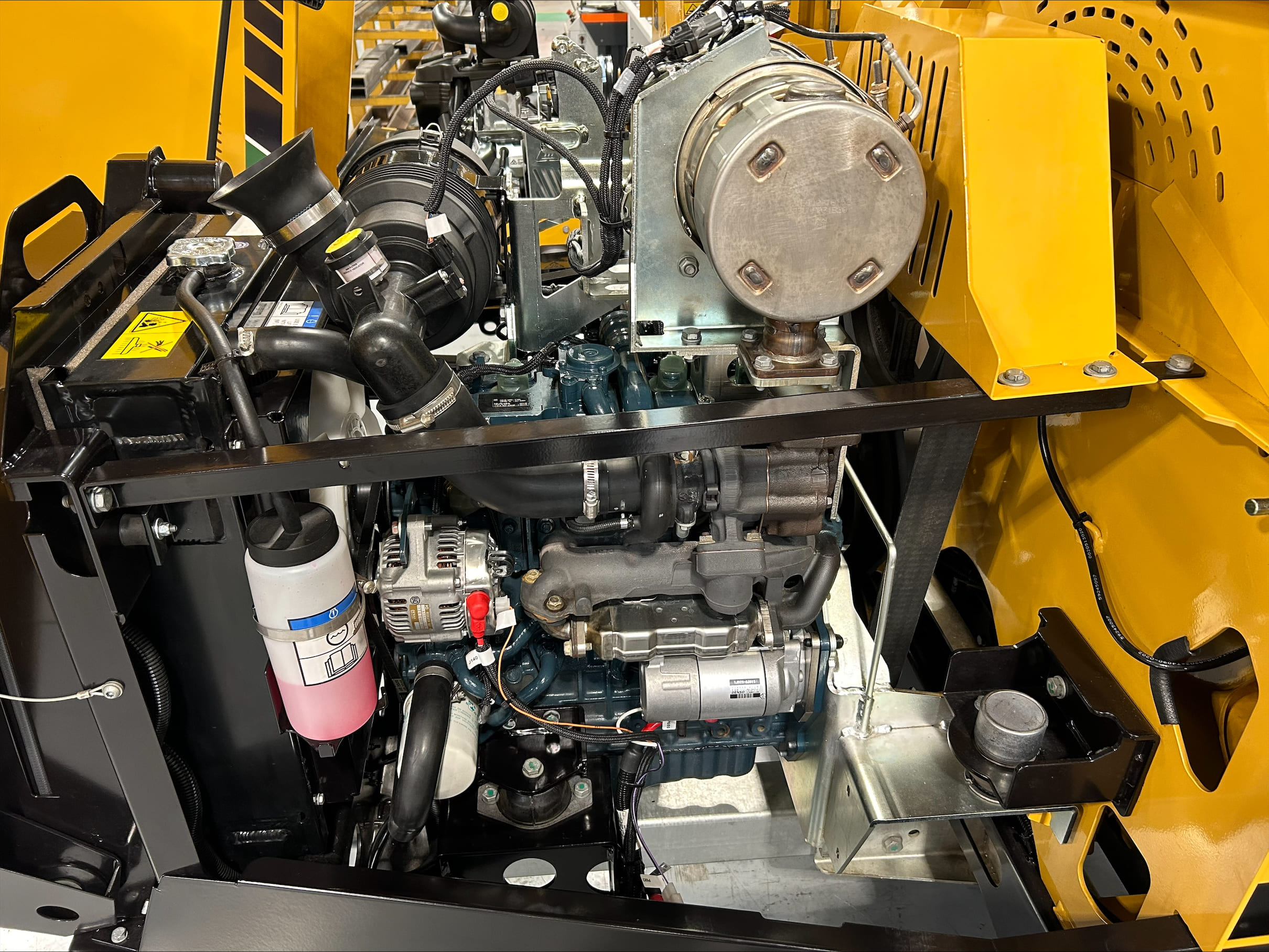

Engine - Option one
| Make and Model | Kubota V1505-CR-TES |
| Number of Cylinders | 4 |
| Gross Horsepower (Maximum) | 44.3hp (33kw) |
| Torque (Max) | 88ft-lb (119.3Nm) |
| Fuel Tank Capacity | 10.5gal (39.7L) |
| Max Fuel Consumption | 2gph (7.6lph) |
| Fuel Type | Ultra-low sulfur diesel acc. EN 590 / ASTM D975 |
| Air Cleaner | Donaldson 2 Stage Dry |
| Oil Filter | Spin-on |
| Recommended Oil | CJ-4, CK-4 |
| Oil Volume with Filter | 7.2qt (6.8L) |
| Maximum Angle of Continuous Operation | 20deg |
| Cooling Medium | Liquid |
| Coolant Capacity (Engine and Radiator) | 2.1gal (7.9L) |
| Alternator | 60 amps Kubota |
| Fan | 400 mm suction |
| Clutch Type | Direct drive |
| Clutch Drive Engagement | Direct drive |
Engine - Option two
| Make and Model | Kubota WG1605 |
| Number of Cylinders | 4 |
| Gross Horsepower (Maximum) | 57hp (42.5kw) |
| Torque (Max) | 82ft-lb (111.2Nm) |
| Fuel Tank Capacity | 10.5gal (39.7L) |
| Max Fuel Consumption | 1.8gph (6.8lph) |
| Fuel Type | Unleaded gasoline 95 Octane max 10% methanol |
| Air Cleaner | Donaldson 2 Stage Dry |
| Oil Filter | Spin-on |
| Recommended Oil | SI Multigrade SAE 10W or SAE 10W-30 |
| Oil Volume with Filter | 6.3qt (6L) |
| Maximum Angle of Continuous Operation | 20deg |
| Coolant Capacity (Engine and Radiator) | 2.1gal (7.9L) |
| Cooling Medium | Liquid |
| Alternator | 40 amps Kubota |
| Fan | 400 mm suction |
| Clutch Type | Direct drive |
| Clutch Drive Engagement | Direct drive |
Feed System
| Feed Roller Orientation | Horizontal, offset lower |
| Number of Feed Rollers | 2 |
| Feed Roller Clamp Load | 880lbs (399.2kg) |
| Feed Roller Clamp Type | Spring |
| Feed Roller Minimum Distance to Drum | 4.7in (11.9cm) |
| Feed Roller Dimension | 16 in (40 cm) |
| Number of Knives | 12 |
| Weight of Feed Roller | 77lbs (34.9kg) |
| Feed Roller Dimension (Two) | 10 in (26 cm) |
| Number of Knives (2) | 12 |
| Weight of Feed Roller (Option Two) | 44lbs (20kg) |
| Number of Feed Roller Motors | 2 |
| Motor Displacement | Upper: 465 cc, Lower: 300 cc |
| Motor Manufacturer | Danfoss |
| Feed Speed | 124ft/min |
| Infeed Table Width | 45in (114.3cm) |
| Infeed Table Length | 28in (71.1cm) |
| Infeed Hopper Height | 31in (78.7cm) |
| Infeed Throat Capacity | 8 in x 12 in (20 cm x 30 cm) |
| Pinch Point - Distance to End of Feed Table | 59in (149.9cm) |
| Distance from Feed Table to Ground | 28in (71.1cm) |
| Infeed Table Material Thickness | .1in (.3cm) |
Safety System
| Bottom Feed Stop Bar | Floating, spring return |
| Bottom Feed Stop Bar Diameter | 1.3in (3.2cm) |
| Bottom Feed Stop Bar Material Thickness | 0.12 in (3.2 mm) |
| Actuation Force (BFSB) | 33lbs (15kg) |
| Reset Method | Push button |
Drum/Disc Cutting System
| Material Capacity | 8in (20.3cm) |
| Width | 12in (30.5cm) |
| Thickness | 1in (2.5cm) |
| Diameter | 30in (76.2cm) |
| Speed | 1365 rpm |
| Weight With Shaft | 240lbs (108.9kg) |
| Safety Lock - Number of Positions | 4 |
| Number of Knives | 4 |
| Knife Thickness | .6in (1.6cm) |
| Material | A8 Chipper Steel |
| Useable Edges | 2 |
| Knife Size | 5 x 5 in (12.7 x 12.7 cm) |
| Number of Bolts/Knife | 2 |
| Number of Paddles | 4 |
| Fixture Method | Welded |
| Air Flow | 900cfm |
| Bedknife Size | Upper: 7.9 x 5.1 in (20 x 13 cm), Lower: 10.6 x 5.1 in (27 x13 cm) |
| Bedknife Thickness | .8in (1.9cm) |
| Bedknife Material | S355J2 |
| Bedknife - Number of Useable Edges | 2 |
Cutter Drive Components - Engine Option One
| Number of Bearings | 2 |
| Bore | 2.2in (5.6cm) |
| Type | Dual spherical roller |
| Manufacturer | Timken |
| Dynamic Capacity | 32500lbs (14741.8kg) |
| Static Capacity | 44400lbs (20139.5kg) |
| Belt Idler/Tensioner | Idler arm, manually adjusted |
| Belt Type | 3 rib, Classic B profile, Aramid Cord Construction |
Discharge System
| Chute Height | 99in (251.5cm) |
| Bottom Thickness | .1in (.3cm) |
| Top Thickness | .1in (.3cm) |
| Side Wall Thickness | .1in (.3cm) |
| Deflector Thickness | .1in (.2cm) |
| Chute Rotation Angle | 270deg |
| Rotation Type | Manual |
| Rotational Lock | Spring pin |
Hydraulic System
| Tank capacity | 6gal (22.7L) |
| Recommended Oil Type | Shell Tellus 68 |
| System Type | Fixed flow, open circuit |
| Filtration Method | Suction: 100 Mesh, Return: 10 Micron |
| Pump Flow at Maximum RPM | 4gpm (15.1L/min) |
| System relief pressure | 2500psi (172.4bar) |
| Auto Reverse PSI | 2300psi (158.6bar) |
| Directional Control | 12 V solenoid controlled |
Electrical System
| System Voltage | 12V |
| Battery | 12V dC, 77A/h, 760 CCA |
| Switches | Pizzato |
| Controller | MPC12 |
| Display | MPC12 |
| Shutdown System | Kubota ECU |
Chassis
| Frame Description | Ladder frame chassis, C-shaped rails |
| Tongue Description | Bolt-on, square tube |
| Hitch Type | Alko 161S - 50-mm ball coupler |
| Fender Description | Bolt-on plastic |
| Axle/Suspension | Rubber torsion |
| Type - Option One | Alko Plus 1800 |
| Manufacturer - Option One | Alko |
| Capacity - Option One | 3970 lb (1800 kg) |
| Tires - Option One | 185R14C |
| Wheels - Option One | 5,5JX14 ET30 5 x 112 |
| Brake Type | 8 in x 2 in (200 mm x 50 mm) drum, surge brake activated |
| Trailer Light Type | 13-pin connector, LED lights |
Other Options
| Special Paint | Available |
| Extended Warranty | Available |
| Preventive Maintenance | Available |

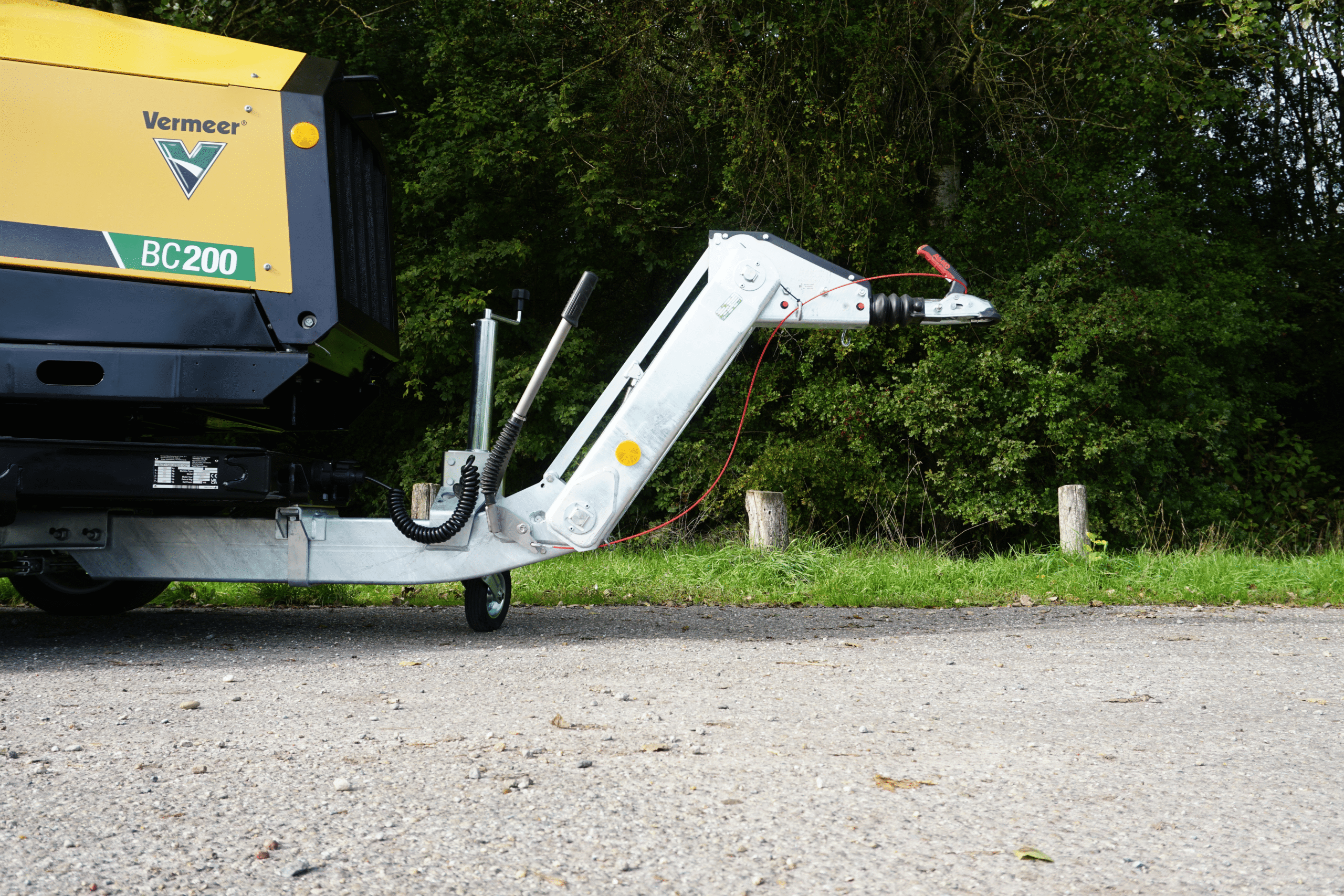

Optional turn table with fixed drawbar (petrol only)
| Length - Feed Table Up, Tongue In | 163in (414cm) |
| Length - Table Down, Tongue Extended | 186in (472.4cm) |
| Width | 65.7in (166.9cm) |
| Height | 104in (264.2cm) |
| Weight (without winch and hydraulic jack) | 3990lbs (1809.8kg) |
| Weight - Engine Option One | 3990lbs (1809.8kg) |
| Tongue Weight - Engine Option One | 220lbs (99.8kg) |
| Distance from Feed Table to Ground | 31in (78.7cm) |
| Chute Height | 104in (264.2cm) |
| Frame Description | Ladder frame chassis, s-shaped rails |
| Hitch Type | Alko 251S - 50-mm ball coupler |
| Type - Option One | Alko 1350 |
| Manufacturer - Option One | Alko |
| Capacity - Option One | 2,980 lbs (1,350 kg) per axle |
| Tires - Option One | 195/50R13 C8 |
| Wheels - Option One | 6JX13H2 ET30 5X112 |
Optional turn table with height adjustable surgebrake (petrol only)
| Length - Feed Table Up, Tongue In | 179in (454.7cm) |
| Length - Table Down, Tongue Extended | 202in (513.1cm) |
| Width | 65.7in (166.9cm) |
| Height | 104in (264.2cm) |
| Weight (without winch and hydraulic jack) | 4060lbs (1841.6kg) |
| Weight - Engine Option One | 4060lbs (1841.6kg) |
| Tongue Weight - Engine Option One | 240lbs (108.9kg) |
| Distance from Feed Table to Ground | 31in (78.7cm) |
| Chute Height | 104in (264.2cm) |
| Frame Description | Ladder frame chassis, s-shaped rails |
| Hitch Type | Alko 251VB - 50-mm ball coupler or 40-mm DIN-eye |
| Type - Option One | Alko 1350 |
| Manufacturer - Option One | Alko |
| Capacity - Option One | 2,980 lbs (1,350 kg) per axle |
| Tires - Option One | 195/50R13 C8 |
| Wheels - Option One | 6JX13H2 ET30 5X112 |
